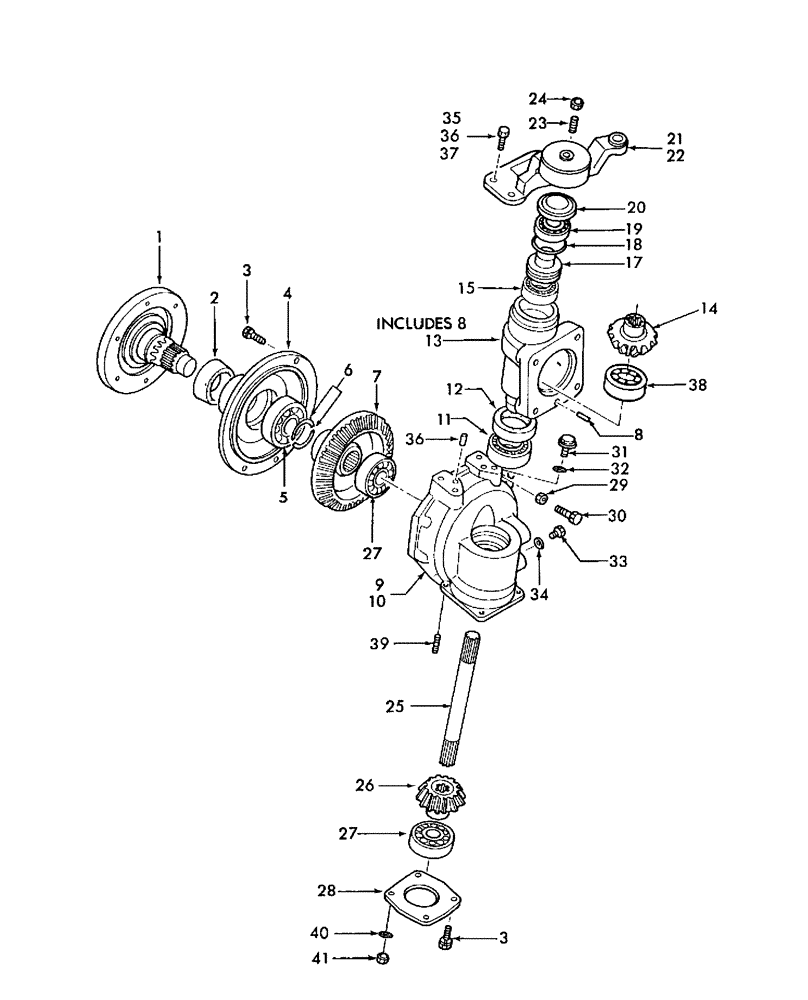

Запчасти Case IH DX45 (04.11) - FINAL REDUCTION GEARS, W/FWD (04) - FRONT AXLE & STEERING

1

SBA326312250

SHAFT

Wheel

2шт.

2

SBA399030070

SEAL

Oil

4шт.

3

SBA011511030

CAPTIVE WASHER SCREW,Hex, M10 x 30, G5

20шт.

4

SBA322213370

COVER

2шт.

5

SBA040109119

BEARING ASSY,45mm ID x 85mm OD x 18mm W

Ball

2шт.

6

SBA398340300

CIRCLIP

4шт.

7

SBA326370490

GEAR

Final

2шт.

8

SBA030501032

PIN

Dowel

2шт.

9

SBA322117530

CASING

L.H. Casting # 531-1, Not Shown

1шт.

10

SBA322117540

CASING

R.H. Casting # 541-1, Shown

1шт.

11

SBA042532008

TAPERED BEARING

Includes Race

2шт.

12

SBA399030070

SEAL

Oil

2шт.

13

SBA322117341

CASING

Includes: Ref. 8

2шт.

14

SBA326240400

BEVEL PINION

4шт.

15

37203

BALL BEARING,34.99mm ID x 72mm OD x 17mm W

2шт.

17

SBA330311380

PIN

King

2шт.

18

SBA052300650

O-RING,64.4mm ID x 3.1mm Width

2шт.

19

SBA040116207

BEARING ASSY,35mm ID x 72mm OD x 17mm W

Ball

2шт.

20

SBA399211440

SPACER

2шт.

21

SBA334525150

ARM

L.H.

1шт.

22

SBA334525160

ARM

R.H.

1шт.

23

SBA399480281

SCREW

2шт.

24

SBA024600010

NUT

2шт.

25

SBA322512381

DRIVEN SHAFT

2шт.

26

SBA326240330

GEAR

2шт.

27

210048

BALL BEARING,35mm ID x 80mm OD x 21mm W

4шт.

28

SBA322213480

COVER

2шт.

29

9706685

NUT,M12 x 1.75, Cl 8

2шт.

30

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

2шт.

31

SBA064600016

PLUG

M16

2шт.

32

SBA025100016

WASHER,16.4mm ID x 27mm OD x 2mm Thk

Seal

2шт.

33

SBA010411212

DRAIN PLUG,M12 x 1.25

2шт.

34

SBA025100012

WASHER,12.4mm ID x 19mm OD x 2mm Thk

Seal

3шт.

35

SBA011511235

BOLT,M12 x 35

LH

4шт.

36

SBA030501025

BALL STUD,M10 x 25 L

BALL PIN

4шт.

37

SBA011511240

BOLT,M12 x 40

RH

4шт.

38

SBA040116205

BEARING ASSY

Ball

2шт.

39

SBA012111025

BOLT

4шт.

40

892-11010

LOCK WASHER,M10

4шт.

41

SBA021000010

NUT

4шт.
