Запчасти Case IH DX45 (04.04) - POWER STEERING PUMP ASSEMBLY (04) - FRONT AXLE & STEERING

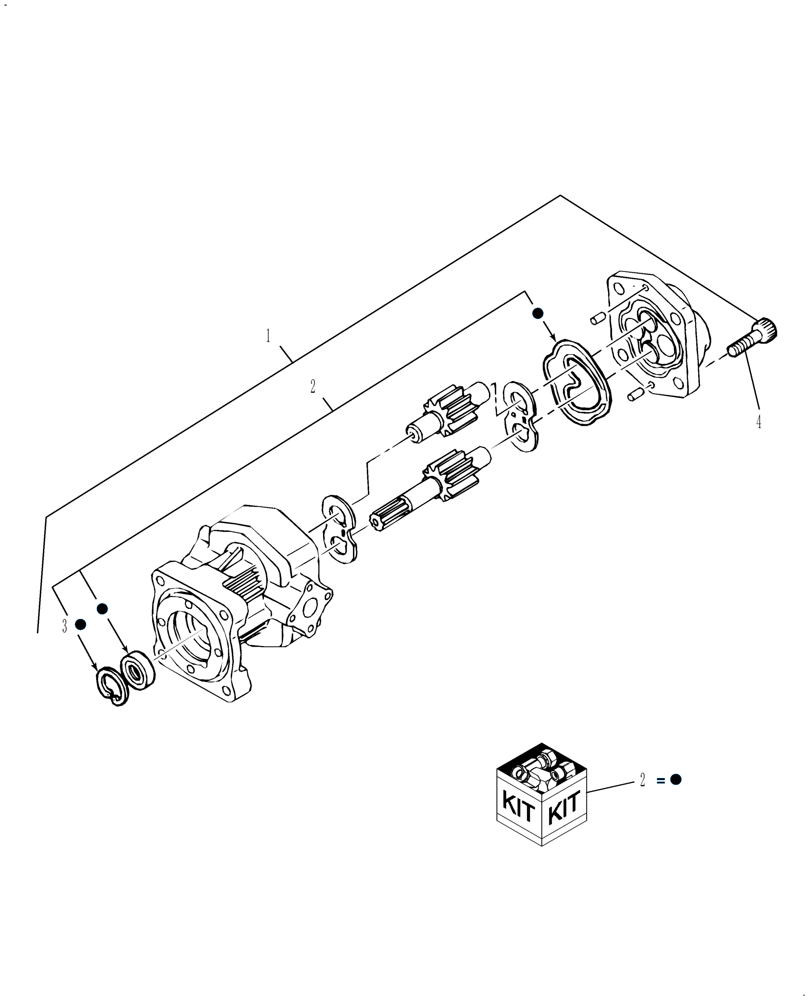

Схема запчастей Case IH DX45 - (04.04) - POWER STEERING PUMP ASSEMBLY (04) - FRONT AXLE & STEERING
2
2
1
3
4

Артикул

Название

Примечание

Количество

1

SBA340451020

HYDRAULIC PUMP

Power Steering Includes: Ref. 2-4

1шт.

SBA340451020R

REMAN-HYD PUMP

DX40, DX45 BOTH CASE IH 4 CYL COMPACT TRACTOR WITH CAB (7/06-)

1шт.

SBA340451020C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

SBA340490224

SEAL KIT

Power Steering

1шт.

3

301642

SNAP RING,M28, Int

1шт.

4

SBA340490187

BOLT

4шт.

Выбрано товаров: 6
