(04.02.01) - POWER STEERING CYLINDER ASSEMBLY, W/FWD

Запчасти Case IH DX45 (04.02.01) - POWER STEERING CYLINDER ASSEMBLY, W/FWD (04) - FRONT AXLE & STEERING

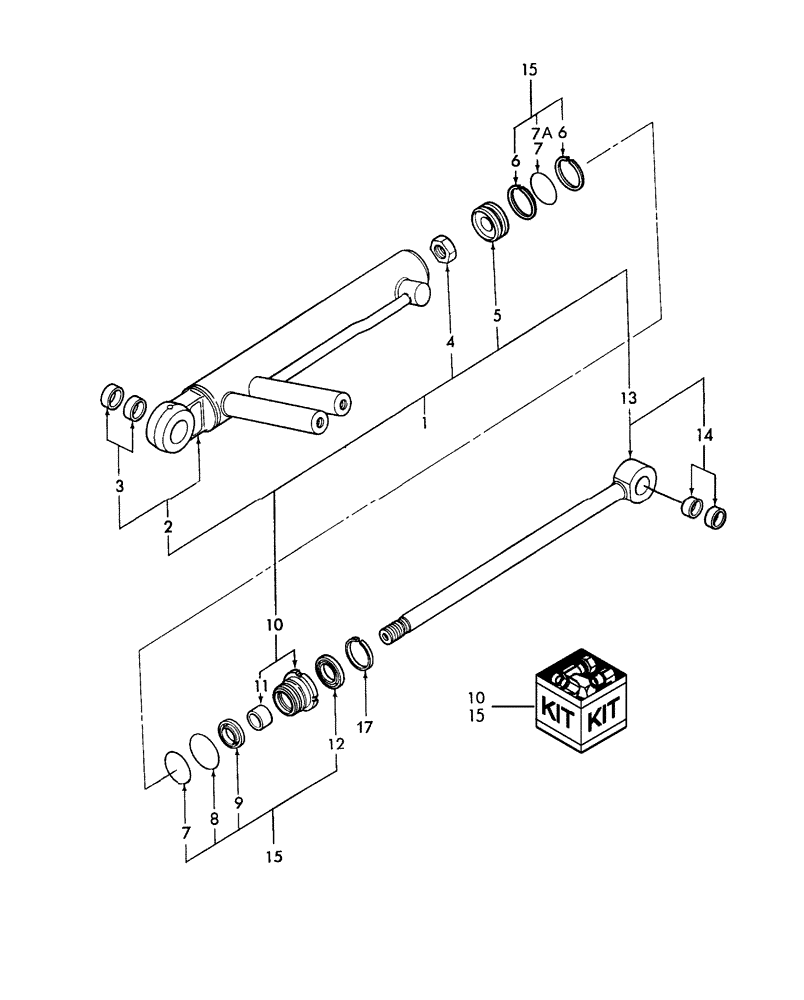

Схема запчастей Case IH DX45 - (04.02.01) - POWER STEERING CYLINDER ASSEMBLY, W/FWD (04) - FRONT AXLE & STEERING
6
6
9
7
7
15
17
14
11
2
5
7a
12
10
15
4
1
3
8
13
15
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

SBA344952870

CYLINDER

Power Steering Includes: Ref. 2 thru 15, 17

1шт.

SBA344952871R

REMAN-HYD CYLINDER

DX40, DX45, ALL (7/06-), Reman for New P/N SBA344952870

1шт.

SBA344952871C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder Tube Includes: Ref. 3

1шт.

3

SBA344960434

BUSHING

2шт.

4

SBA020910014

NUT

M14

1шт.

5

NSS

NOT SOLD SEPARAT

Piston

1шт.

6

NSS

NOT SOLD SEPARAT

RING Backup

2шт.

7

SBA052310350

O-RING

1шт.

7a

SBA052110340

O-RING

1шт.

8

SBA052400420

O-RING

1шт.

9

NSS

NOT SOLD SEPARAT

Packing, Rod

1шт.

10

SBA344960455

REPAIR KIT

Guide, Includes: Ref. 11

1шт.

11

SBA344960430

BUSHING

1шт.

12

NSS

NOT SOLD SEPARAT

Seal, Dust

1шт.

13

SBA344960451

ROD

Includes: Ref. 14

1шт.

14

SBA344960433

BUSHING

ID .8770"/OD .9915

2шт.

15

SBA344960442

REPAIR KIT

Includes: Ref. 6, 7, 7A, 8, 9 & 12

1шт.

17

SBA344960438

SNAP RING

1шт.
