(04.01) - FRONT AXLE, FWD

Запчасти Case IH DX45 (04.01) - FRONT AXLE, FWD (04) - FRONT AXLE & STEERING

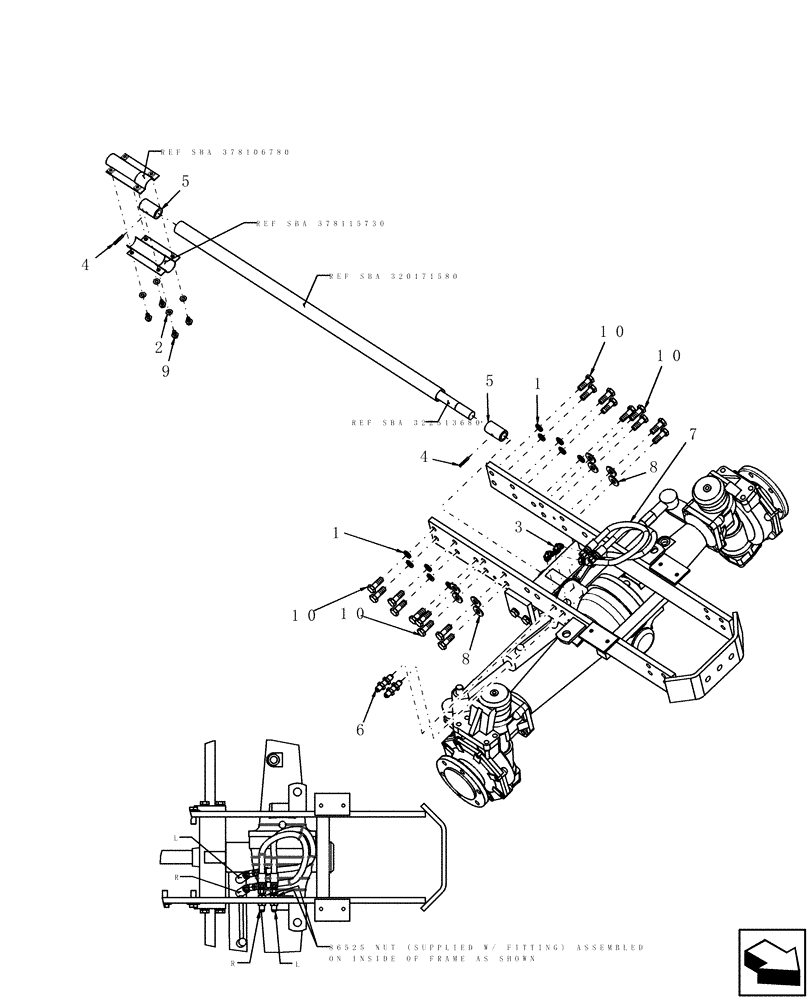

Схема запчастей Case IH DX45 - (04.01) - FRONT AXLE, FWD (04) - FRONT AXLE & STEERING
ref sba 322513680
4
ref sba 378106780
6
5
10
8
l
ref sba 378115730
1
r
ref sba 320171580
3
2
on inside of frame as shown
1
10
l
7
10
86525 nut (supplied w/ fitting)
5
8
9
r
10
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

280248

LOCK WASHER,9/16"

10шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

3

330346

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

2шт.

4

SBA030309013

PIN

M6 x 32

2шт.

5

SBA322611200

COUPLING

2шт.

6

86400264

FITTING,9/16"-18 x M66.4 L

2шт.

7

86400298

HYDRAULIC HOSE,9.53 mm ID x 540.00 mm, SAE 100R17

Power Steering

2шт.

8

86400425

WASHER

8шт.

9

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

4шт.

10

86526912

BOLT,Hex, M14 x 1.5 x 40mm, Cl 10.9, Full Thd

18шт.
