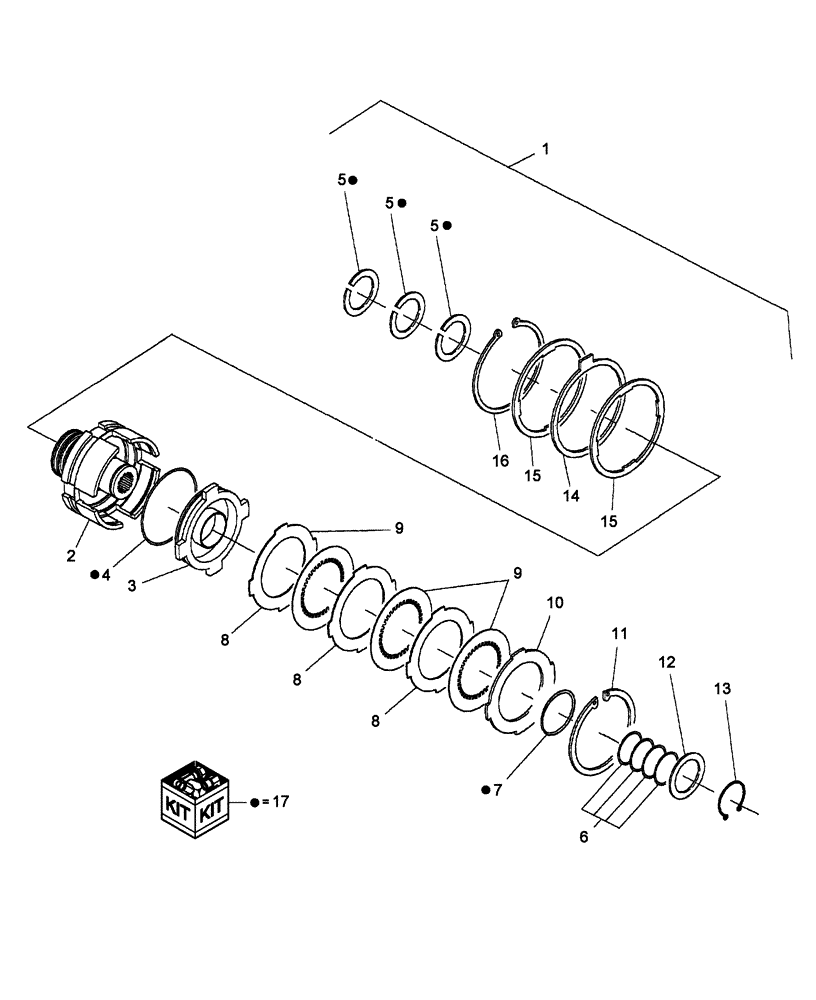

Запчасти Case IH DX45 (03.04.02) - CLUTCH ASSEMBLY, PTO (03) - TRANSMISSION

1

SBA320041051

CLUTCH

Includes: Ref. 1 thru 17

1шт.

2

NSS

NOT SOLD SEPARAT

Case

1шт.

3

NSS

NOT SOLD SEPARAT

Piston

1шт.

4

NSS

NOT SOLD SEPARAT

Ring, Seal

1шт.

5

SBA320690099

RING

Seal

3шт.

6

370026

SNAP RING,M100 x 3mm Thk, Internal

1шт.

7

SBA320690076

RING

Seal

1шт.

8

SBA320690077

PLATE

Separator

3шт.

9

SBA320690078

CLUTCH DISC

CLUTCH DISK

3шт.

10

SBA320690119

DISC

Plate, Back

1шт.

11

NSS

NOT SOLD SEPARAT

Ring, Snap

1шт.

12

SBA320690088

WASHER

1шт.

13

SBA036150040

SNAP RING

1шт.

14

SBA320690148

PLATE

Brake, Disc

1шт.

15

SBA320690145

BRAKE PLATE

Pressure

2шт.

16

SBA320690152

SNAP RING

1шт.

17

SBA320690116

SEAL KIT

Includes: Ref. 4, 5 & 7

1шт.
