Запчасти Case IH DX45 (02.04) - AIR CLEANER (02) - ENGINE EQUIPMENT

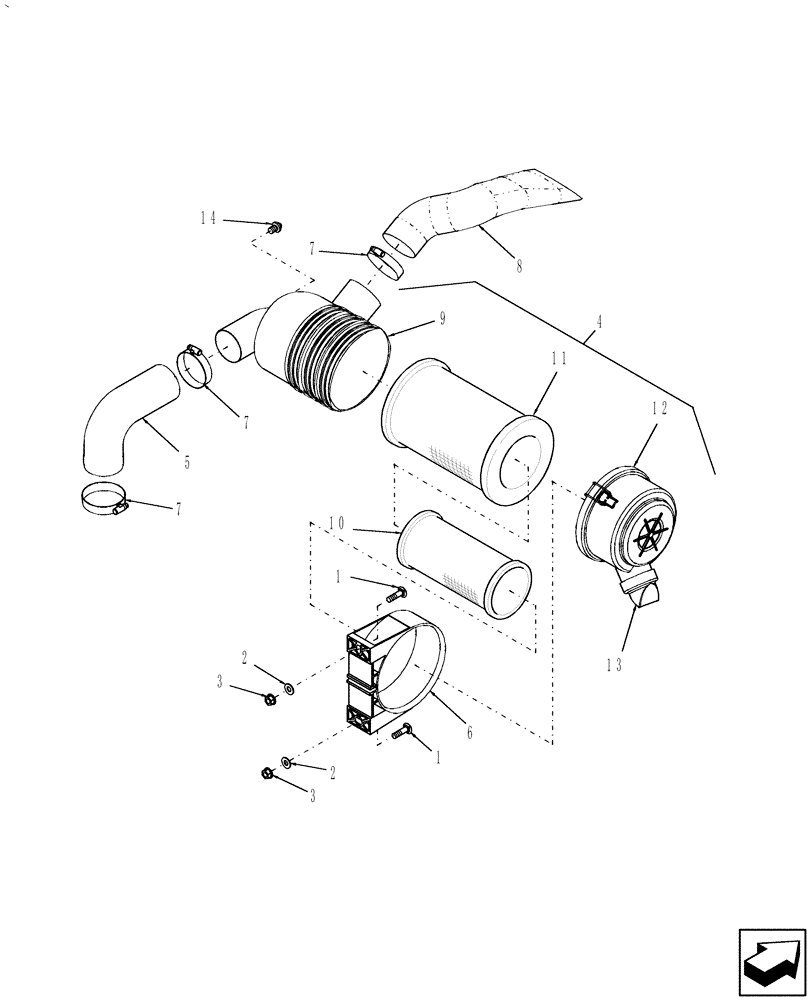

Схема запчастей Case IH DX45 - (02.04) - AIR CLEANER (02) - ENGINE EQUIPMENT
5
7
3
7
11
6
3
9
2
8
1
12
13
4
7
14
1
10
2

Артикул

Название

Примечание

Количество

1

43465

CARRIAGE BOLT,Short NK, M8 x 30, Cl8.8, Full Thd

2шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

3

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

4

86549691

AIR CLEANER

Includes: Ref. 9 thru 14

1шт.

5

87301190

INTAKE AIR HOSE,50.80 mm ID x 223.00 mm, SAE J200-3-CA-710

Air Filter

1шт.

6

86549702

BRACKET

1шт.

7

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

3шт.

8

87378810

HOSE

Air Intake Duct

1шт.

9

86549691

AIR CLEANER

1шт.

10

87300181

AIR FILTER

Secondary, Inner

1шт.

11

87300179

AIR FILTER

Primary, Outer

1шт.

12

86549696

COVER

1шт.

13

82981184

DUST VALVE

Unloader

1шт.

14

86549695

PIPE PLUG,1/8"-27 NPT

1шт.

Выбрано товаров: 14
