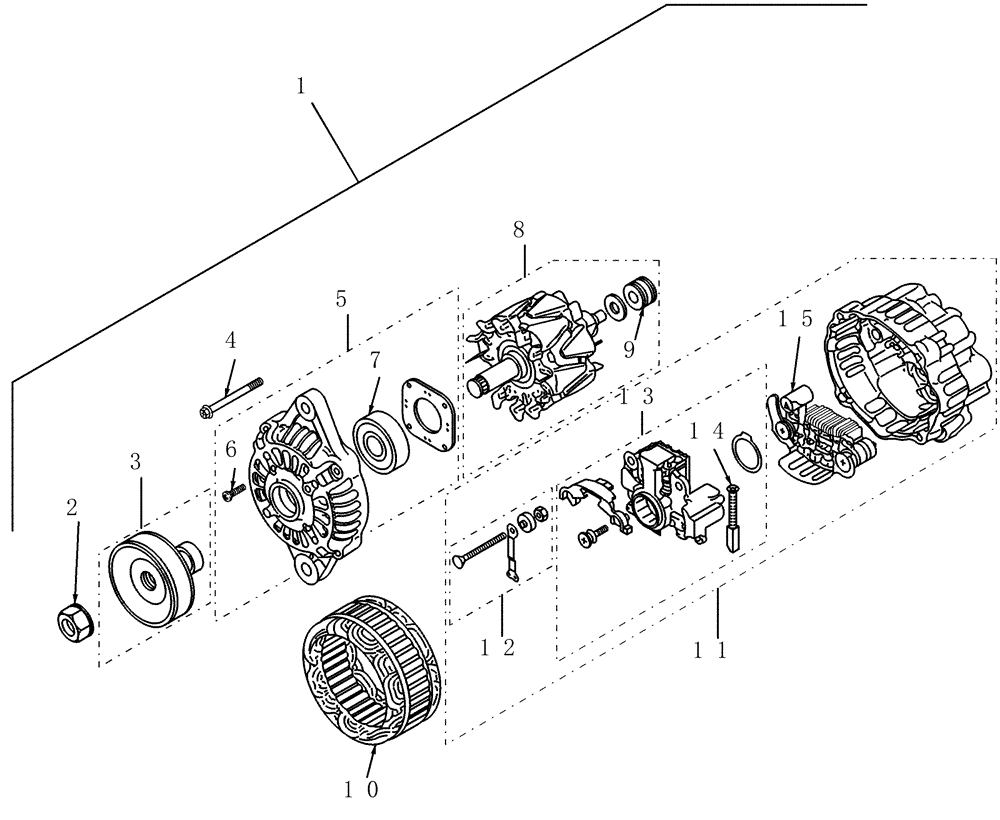

Запчасти Case IH DX45 (01.09) - ALTERNATOR ASSEMBLY (01) - ENGINE

1

SBA185046380

ALTERNATOR

Includes: Ref. 2 thru 15

1шт.

1

SBA185046380R

REMAN-ALTERNATOR

1шт.

1

SBA185046380C

CORE-ALTERNATOR

Return Number

1шт.

2

SBA185446269

NUT

1шт.

3

SBA185436180

PULLEY

1шт.

4

SBA185446270

SET OF SCREWS

1шт.

5

SBA185426210

COVER

Front Includes: Ref. 6 & 7

1шт.

6

SBA185446271

SET OF SCREWS

1шт.

7

SBA185446272

BALL BEARING

1шт.

8

SBA185446273

ARMATURE

Rotor Assy.

1шт.

9

SBA185446274

BALL BEARING,8mm ID x 23mm OD x 14mm W

1шт.

10

SBA185446293

ALTERNATOR STATOR

1шт.

11

SBA185426240

COVER

Rear Includes: Ref. 12 thru 15

1шт.

12

SBA185446278

KIT

Set

1шт.

13

SBA185446277

VOLTAGE REGULATOR

1шт.

14

SBA185416480

COMMUTATOR BRUSH

Spring

2шт.

15

SBA185446294

RECTIFIER

1шт.
