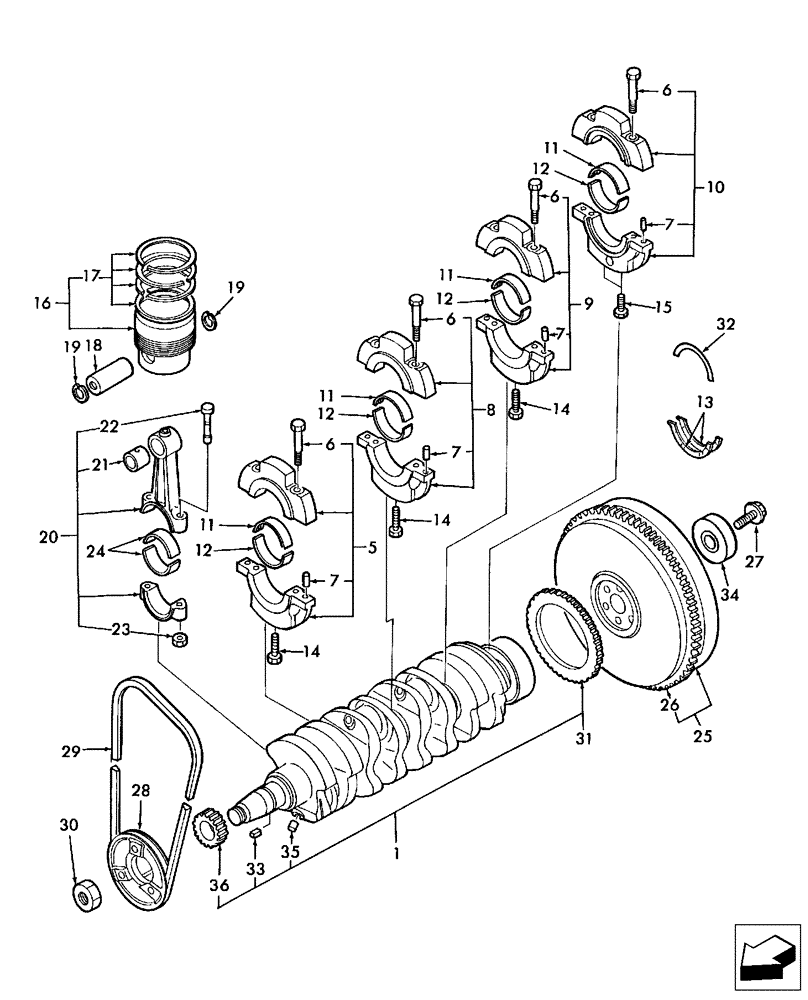

Запчасти Case IH DX45 (01.06) - CRANKSHAFT & PISTONS (01) - ENGINE

1

SBA115256850

CRANKSHAFT

Includes: Ref. 30, 31, 33, 35 & 36, DX40

1шт.

1

SBA115256850R

REMAN-CRANKSHAFT

DX40 Case IH 4 Cyl Compact Tractor W/ Cab (7/06-)

1шт.

1

SBA115256850C

CORE-CRANKSHAFT

Return Number

1шт.

1

SBA115256841

CRANKSHAFT

Kit, Includes: Balancer Gear, Crankshaft Gear & Dowel Pins DX45

1шт.

USED ON & ABOVE ENGINE SERIAL # 40029

1шт.

1

SBA115256841R

REMAN-CRANKSHAFT

DX45 Case IH 4 Cyl Compact Tractor W/ Cab, Used On and Above Eng S/N 40029, Kit Incl: Balancer Gear, Crankshaft Gear and Dowel Pins (7/06-)

1шт.

1

SBA115256841C

CORE-CRANKSHAFT

Return Number

1шт.

5

SBA110156250

HOLDER

Bearing, Includes: Ref. 6 & 7

1шт.

DX40

1шт.

5

SBA110156360

HOLDER

Bearing Assy., Includes: Ref. 6 & 7

1шт.

DX45

1шт.

6

SBA010109406

BOLT

8шт.

7

SBA030500612

DOWEL

8шт.

8

SBA110156171

HOLDER

Bearing, Includes: Ref. 6 & 7

1шт.

DX40

1шт.

8

SBA110156370

BEARING CAP

Bearing, Includes: Ref. 6 & 7

1шт.

DX45

1шт.

9

SBA110156181

HOLDER

Bearing, Includes: Ref. 6 & 7

1шт.

DX40

1шт.

9

SBA110156380

BEARING CAP

Bearing, Includes: Ref. 6 & 7

1шт.

DX45

1шт.

10

SBA110156191

HOLDER

Bearing Holder Assy., Includes: Ref. 6 & 7

1шт.

DX40

1шт.

10

SBA110156390

BEARING CAP

Bearing Holder Assy., Includes: Ref. 6 & 7

1шт.

DX45

1шт.

11

SBA198517230

LINER

Bearing, Standard

4шт.

11

SBA198517234

LINER

Bearing, U.S, .010" or 0.25 mm

4шт.

Not Included in Long Block

1шт.

11

SBA198517237

LINER

Bearing, U.S, .020" or 0.50 mm

4шт.

Not Included in Long Block

1шт.

12

SBA198517240

LINER

Bearing, Standard

4шт.

12

SBA198517244

LINER

Bearing, U.S, .010" or 0.25 mm

4шт.

Not Included in Long Block

1шт.

12

SBA198517247

LINER

Bearing, U.S, .020" or 0.50 mm

4шт.

Not Included in Long Block

1шт.

13

SBA199266200

THRUST WASHER

2шт.

14

SBA011511070

BOLT,M10 x 70

3шт.

15

SBA010700860

BOLT

M8 x 60

2шт.

16

SBA115017540

PISTON & RINGS KIT

Standard Includes: Ref. 17 SBA115107970

4шт.

DX40

1шт.

16

SBA115017490

PISTON & RINGS KIT

Standard Includes: Ref. 15 SBA115017970

4шт.

DX45

1шт.

17

SBA115107970

SET OF RINGS

Contains a 3 mm width oil ring Included in Kit SBA115017490 & SBA115017540

4шт.

18

SBA115326220

PISTON PIN,33mm OD

4шт.

19

301642

SNAP RING,M28, Int

8шт.

20

SBA115026251

CONNECTING ROD

Includes: Ref. 21 thru 23

4шт.

DX40

1шт.

SBA115026251R

REMAN-CONNECTING ROD

DX40,DX45 Both (7/06-)

4шт.

SBA115026251C

CORE-ROD CONNECTING

Return Number

1шт.

20

SBA115026330

CONNECTING ROD

Includes: Ref. 21 thru 23

4шт.

DX45

1шт.

21

SBA198517260

BUSHING

4шт.

22

SBA115176140

BOLT

Connecting Rod

8шт.

23

SBA020109120

NUT

8шт.

24

SBA198517250

LINER

Bearing, Standard

8шт.

24

SBA198517254

LINER

Bearing, U.S, .010" or 0.25 mm

8шт.

Not Included in Long Block

1шт.

24

SBA198517257

LINER

Bearing, U.S, .020" or 0.50 mm

8шт.

Not Included in Long Block

1шт.

25

SBA115357780

ENGINE FLYWHEEL

Includes: Ref. 26

1шт.

Not Included in Long Block

1шт.

DX40

1шт.

25

SBA115357790

ENGINE FLYWHEEL

Includes: Ref. 26

1шт.

Not Included in Long Block

1шт.

DX45

1шт.

26

SBA115376040

RING GEAR

1шт.

Not Included in Long Block

1шт.

DX40

1шт.

26

SBA115376160

RING GEAR

1шт.

Not Included in Long Block

1шт.

DX45

1шт.

27

SBA010109341

BOLT

6шт.

Not Included in Long Block

1шт.

28

SBA115397960

PULLEY

Crankshaft

1шт.

29

301525A1

BELT,37.43” OAL

1шт.

Not Included in Long Block

1шт.

30

SBA020109086

NUT

1шт.

31

SBA165416330

GEAR

Balancer

1шт.

DX40

1шт.

32

SBA199266210

THRUST WASHER

1шт.

33

SBA034100508

KEY

1шт.

34

SBA040116001

BALL BEARING

Pilot, Dual Clutch, 6001Z

1шт.

Not Included in Long Block

1шт.

Pilot Bearing to be Located in Engine Flywheel

1шт.

35

SBA030509020

PIN

Dowel

1шт.

36

SBA115276270

GEAR

Crankshaft

1шт.
