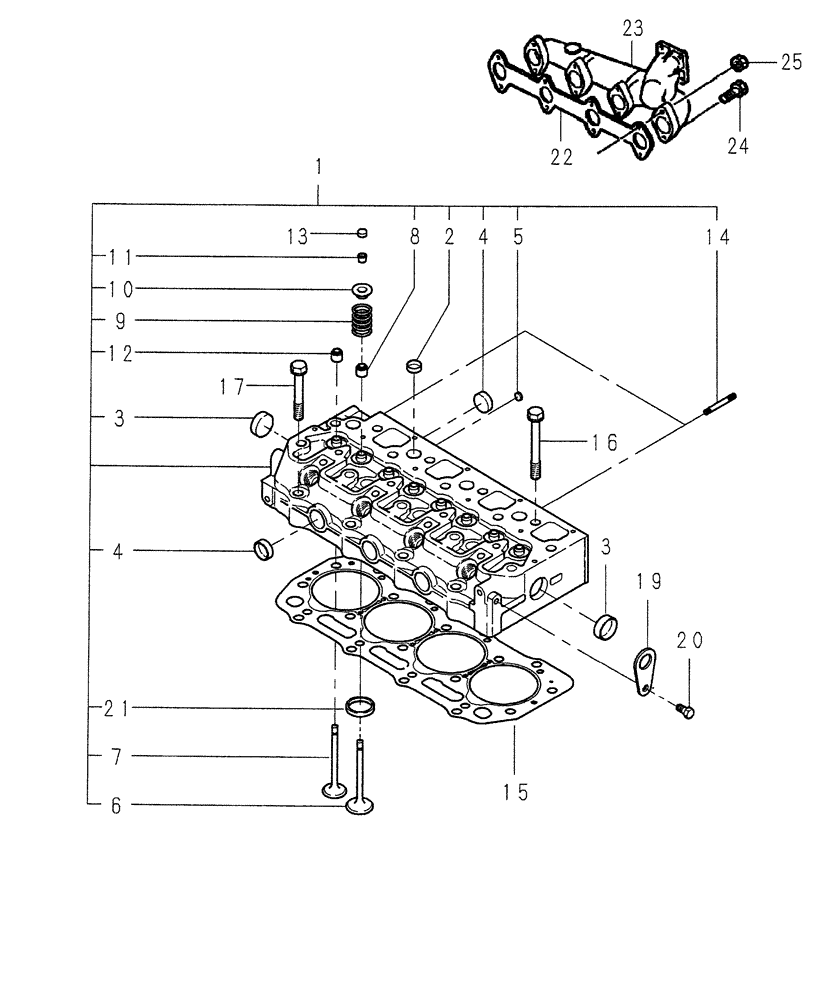

Запчасти Case IH DX45 (01.03) - CYLINDER HEAD (01) - ENGINE

1

SBA111010480

CYLINDER HEAD

Includes: Ref. 2 Thru 12, 14 & 21

1шт.

1

SBA111010481R

REMAN-CYLINDER HEAD

Complete with Valves

1шт.

1

SBA111010481C

CORE-CYLINDER HEAD

Return Number

1шт.

2

SBA064210018

PLUG

Sealing, 18 mm

7шт.

3

SBA064210030

PLUG,30mm

2шт.

4

SBA064210025

PLUG,25mm

6шт.

5

SBA064210010

PLUG,10mm

3шт.

6

SBA120166350

STD INLET VALVE

STD ENGINE INLET VALVE

4шт.

7

SBA120176360

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

4шт.

8

SBA120406070

SEAL

Valve

4шт.

9

SBA198216700

SPRING

8шт.

10

SBA120186080

RETAINER

8шт.

11

SBA120226070

RETAINER

16шт.

12

SBA120406050

SEAL

Valve Guide, Exhaust

4шт.

13

SBA120216040

CAP

8шт.

14

SBA012110860

STUD

2шт.

15

SBA111147520

CYLINDER HEAD GASKET,1.4mm Thk

1.4, Thickness

1шт.

DX40

1шт.

15

SBA111147581

CYLINDER HEAD GASKET,0.4mm Thk

0.4, Thickness

1шт.

DX45

1шт.

15

SBA111147591

CYLINDER HEAD GASKET,0.5mm Thk

0.5, Thickness

1шт.

DX45

1шт.

16

SBA111136480

BOLT

Head

14шт.

17

SBA111136490

BOLT

Head

4шт.

19

SBA195816540

LIFTING EYE

2шт.

20

SBA011510816

BOLT

M8 x 16

2шт.

21

SBA110136400

VALVE SEAT

4шт.

22

SBA135996780

MANIFOLD GASKET

1шт.

23

SBA135617390

EXHAUST MANIFOLD

1шт.

24

SBA011510860

CAPTIVE WASHER SCREW,Hex, M8 x 60, G5

6шт.

25

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.
