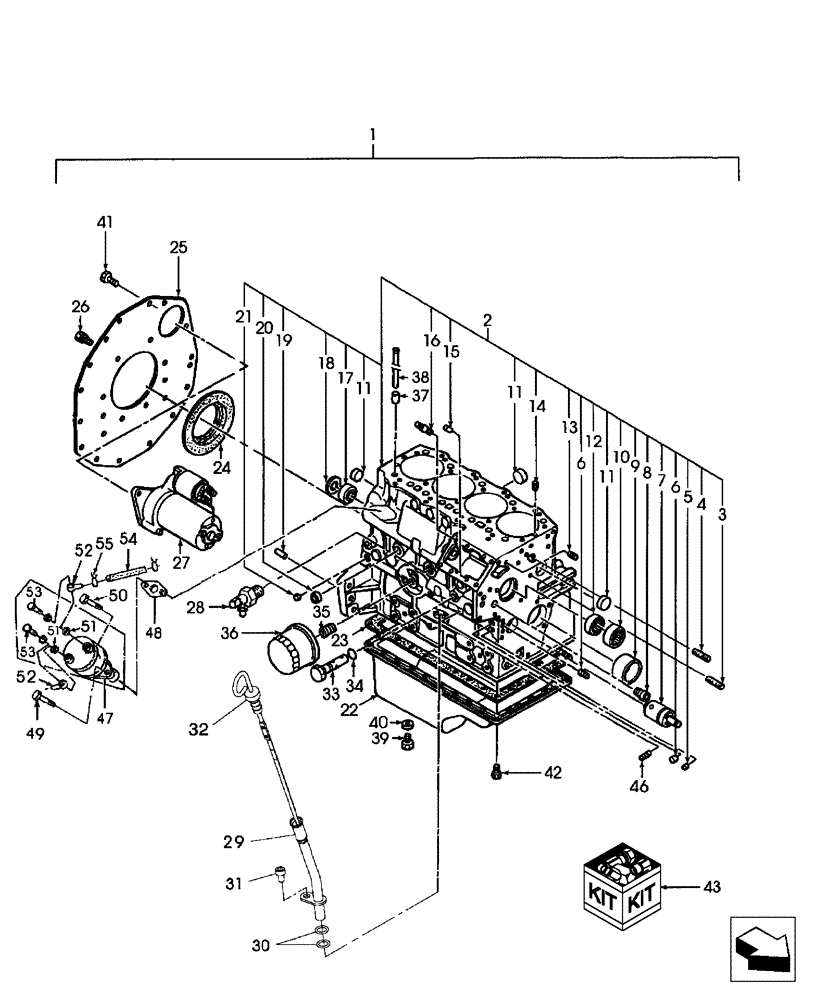

Запчасти Case IH DX45 (01.01) - CYLINDER BLOCK (01) - ENGINE

1

SBA133692

ENGINE

Long Includes: 2 thru 26, 28 thru 40,42,46,48,49 & 50, DX40

1шт.

Fuel Pump, Alternator & Starter Not Included

1шт.

1

SBA133692R

REMAN-BASIC ENGINE

DX40 w/Cab 4 Cyl. Tier 2 (7/06)

1шт.

1

SBA133692C

CORE-BASIC ENGINE

Return Number

1шт.

1

SBA133692ER

REMAN-BASIC ENGINE

DX40 w/Cab 4 Cyl. Tier 2 (7/06)

1шт.

1

SBA133692EPAC

CORE-EPA ENGINE

Return Number

1шт.

1

SBA133693

ENGINE

Long Includes: 2 thru 26, 28 thru 40,42,46,48,49 & 50, DX45

1шт.

Fuel Pump, Alternator & Starter Not Included

1шт.

Used for service of production assembly 86404748

1шт.

1

SBA133693R

REMAN-BASIC ENGINE

DX45 w/Cab 4 Cyl. Tier 2 (7/06)

1шт.

1

SBA133693C

CORE-BASIC ENGINE

Return Number

1шт.

1

SBA133693ER

REMAN-BASIC ENGINE

DX45 w/Cab 4 Cyl. Tier 2 (7/06)

1шт.

1

SBA133693EPAC

CORE-EPA ENGINE

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Block, Cylinder

1шт.

3

SBA012110660

STUD

1шт.

4

SBA012110635

STUD

1шт.

5

SBA198466010

PLUG

Blank 8.4mm

3шт.

6

SBA198466020

PLUG

Blank 10.4mm

4шт.

7

SBA165296131

SHAFT

Idler Gear, Uses Pin SBA140196072

1шт.

9

SBA198517220

BUSHING

Standard

1шт.

9

SBA198517224

BUSHING

U/S, 0.10" or 0.25 mm

1шт.

9

SBA198517227

BUSHING

U/S, 0.20" or 0.50 mm

1шт.

10

SBA042309018

NEEDLE BEARING

1шт.

11

SBA064210040

CAP

5шт.

12

SBA042309017

NEEDLE BEARING

1шт.

13

SBA030500616

DOWEL,M6 x 16

2шт.

14

SBA030309005

PIN

Spring

2шт.

15

SBA030500612

DOWEL

2шт.

16

SBA012110820

STUD

3шт.

17

SBA040106203

BALL BEARING,17mm ID x 40mm OD x 12mm W

1шт.

18

SBA064100045

PLUG

Expansion

1шт.

19

SBA030501025

BALL STUD,M10 x 25 L

BALL PIN

2шт.

20

SBA064210025

PLUG,25mm

2шт.

21

SBA198466030

PLUG

Blank 6.5 x 7mm

3шт.

22

SBA110708320

ENGINE OIL PAN

1шт.

23

SBA110996860

GASKET

1шт.

24

SBA198636170

SEAL

Oil, DX40

1шт.

24

SBA050209083

SEAL

D45, DX45

1шт.

25

SBA110367750

PLATE

Rear, DX40

1шт.

25

SBA110367740

PLATE

Rear, DX45

1шт.

26

SBA011510816

BOLT

M8 x 16

10шт.

27

SBA185086530

STARTER MOTOR

1шт.

Not Included in Long Block

1шт.

27

SBA185086530R

REMAN-STARTER

Remanufactured Starter -- 11 Tooth Drive

1шт.

27

SBA185086530C

CORE-STARTER

Return Number

1шт.

28

SBA198736270

DRAINCOCK/TAP SUPPLY

Fitting

1шт.

29

SBA110756140

TUBE

Dipstick

1шт.

30

SBA052100100

O-RING

2шт.

31

SBA011310612

CAPTIVE WASHER SCREW,Hex, M6 x 12, Cl 8.8

1шт.

32

SBA198416320

GAUGE

1шт.

33

SBA140036220

VALVE PRESSURE RELIE

1шт.

34

SBA052109078

O-RING,2.4mm Thk x 9.8mm ID

1шт.

35

SBA140546020

ADAPTER

1шт.

36

87409203

ENGINE OIL FILTER

1шт.

37

SBA120116160

TAPPET

45 mm

8шт.

38

SBA120456250

PUSH ROD,7.97"

DX40

8шт.

38

SBA120456310

PUSH ROD,8.76"

DX45

8шт.

39

SBA010411212

DRAIN PLUG,M12 x 1.25

2шт.

40

SBA025100012

WASHER,12.4mm ID x 19mm OD x 2mm Thk

Seal

2шт.

41

SBA011511030

CAPTIVE WASHER SCREW,Hex, M10 x 30, G5

2шт.

Not Included in Long Block

1шт.

42

SBA010109235

BOLT

30шт.

43

86590117

KIT

Heater, Engine Coolant, Includes: 5' Cord 86539137, Cable Tie 263117 & Heater NSS

1шт.

Not Included in Long Block

1шт.

46

SBA064409006

PLUG,1/8" NPT

1шт.

47

SBA130506150

FUEL PUMP

1шт.

Not Included in Long Block

1шт.

48

SBA130996130

GASKET

1шт.

49

SBA011310614

BOLT

1шт.

50

SBA011310616

BOLT,M6 x 1 x 16, Cl 8.8

1шт.

51

SBA025100008

SEALING WASHER,7.3mm ID x 14mm OD x 1.8mm Thk

4шт.

Not Included in Long Block

1шт.

52

SBA198486840

ELEC CONNECTOR

Eye

2шт.

Not Included in Long Block

1шт.

53

SBA130516092

BOLT

Eye

2шт.

Not Included in Long Block

1шт.

54

SBA068209126

HOSE

1шт.

Not Included in Long Block

1шт.

55

SBA067100015

HOSE CLAMP

2шт.

Not Included in Long Block

1шт.
