(11.03) - FRONT END WHEEL WEIGHTS - 710215046 & 710215056 & WEIGHT CARRIER - 718233006

Запчасти Case IH DX45 (11.03) - FRONT END WHEEL WEIGHTS - 710215046 & 710215056 & WEIGHT CARRIER - 718233006 (11) - WHEELS/TRACKS

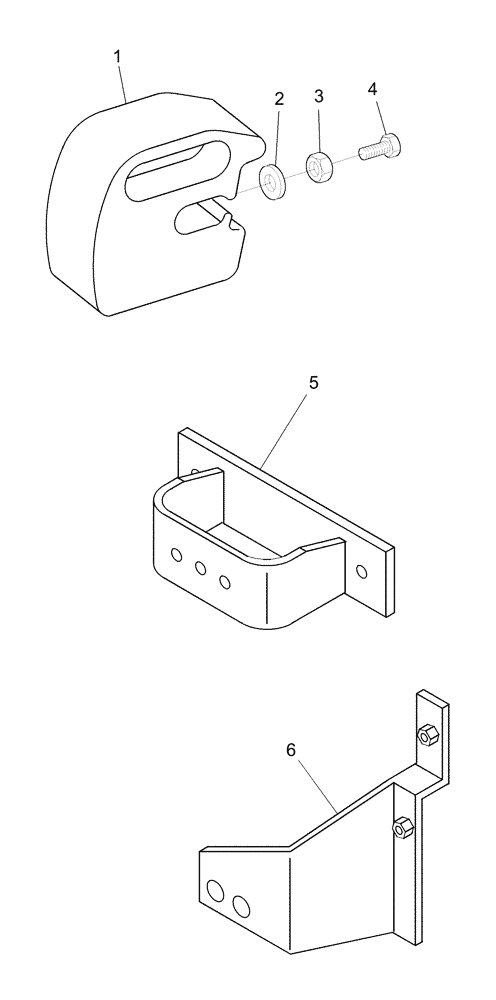

Схема запчастей Case IH DX45 - (11.03) - FRONT END WHEEL WEIGHTS - 710215046 & 710215056 & WEIGHT CARRIER - 718233006 (11) - WHEELS/TRACKS
1
5
2
6
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

710215046

WEIGHT

Front End, 60 LB

1шт.

Max Of 2 With All Axle/Tire Combinations

1шт.

Order thru Wholegoods

1шт.

1

718215056

WEIGHT

Front End, 100 LB

1шт.

Max Of 2 With All Axle/Tire Combinations

1шт.

NH-NA

1шт.

2

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

1шт.

3

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

4

280508

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

1шт.

5

718233006

KIT

Weight, Will Hold Up To (5) 60lb. weights (710215013) or (5) 100 lb. weights (718215036)

1шт.

6

86403115

BRACKET

Loader Tube Stabilizer Bracket (required to install single lever 2-spool remote valve with front loader.)

1шт.

Attaching Hardware: (2) 9824271 Bolts & (2) 86532860 Spacers

1шт.
