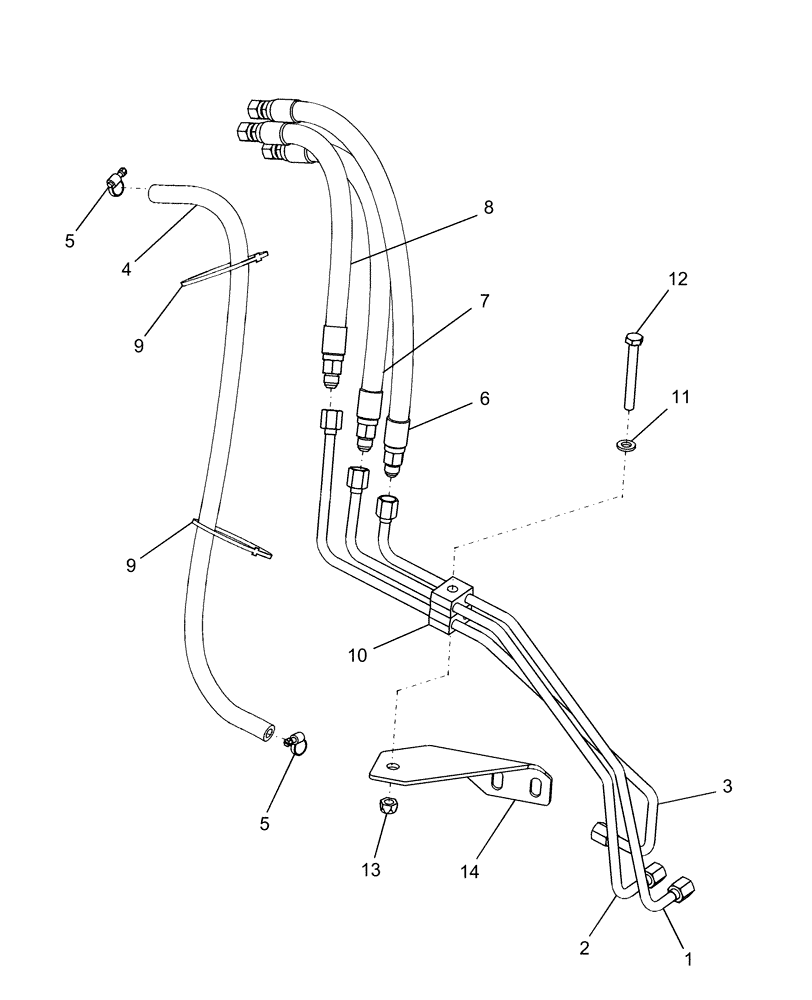

Запчасти Case IH DX45 (04.03) - POWER STEERING HOSES (00) - GENERAL

1

87547928

TUBE,7.75 mm ID x 9.53 mm OD x 350, 315 mm L

Steering Cyl Left

1шт.

2

87547929

TUBE,7.75 mm ID x 9.53 mm OD

Steering Cyl Right

1шт.

3

87547930

TUBE,7.75 mm ID x 9.53 mm OD

Steering Pump Pressure

1шт.

4

84147083

HOSE,9.50 mm ID x 700.00 mm, SAE 30R2 Type 1

Power Steering Drain

1шт.

5

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

2шт.

6

87530925

HOSE

Power Steering Cyl LH

1шт.

7

87535323

HOSE

Power Steering Cyl RH

1шт.

8

87535324

HOSE

Power Steering Pump

1шт.

9

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

2шт.

10

86400111

CLAMP

Halves 3/8

2шт.

11

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

1шт.

12

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

1шт.

13

353308

NUT,M6 x 1.0, Cl 8

1шт.

14

87547931

BRACKET

Power Steering Tubes

1шт.
