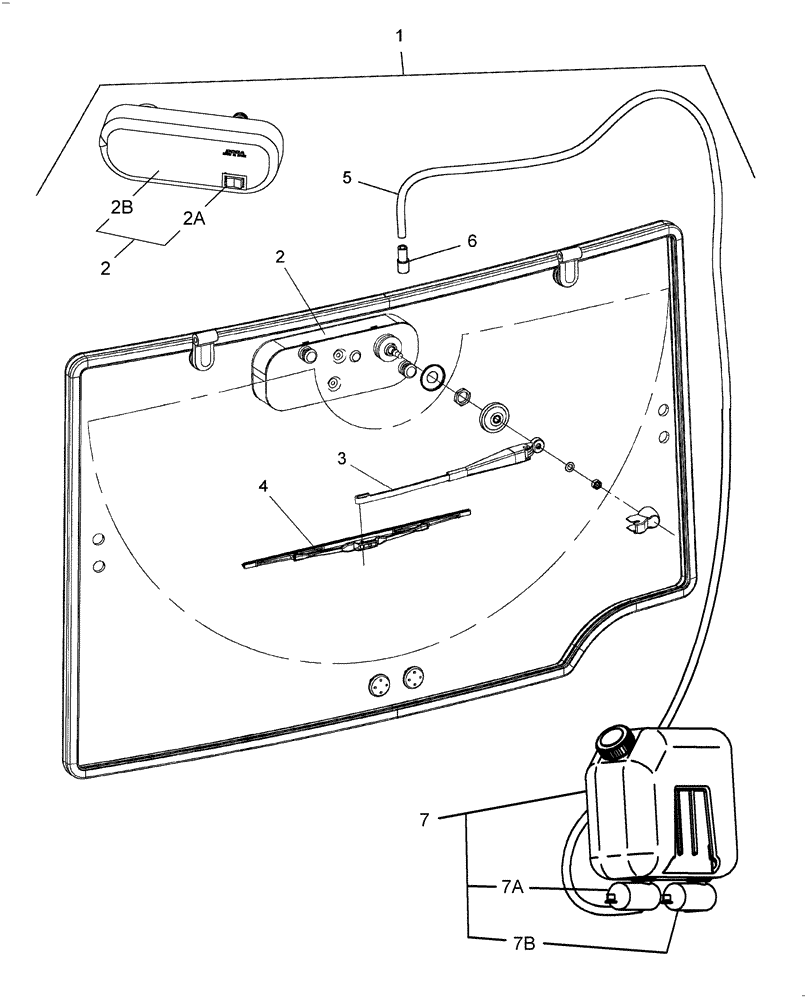

Запчасти Case IH DX45 (10.17) - REAR WINDSHIELD WIPER/WASHER DIA - 710642016 (10) - OPERATORS PLATFORM/CAB

1

710642016

DIA KIT, ADD PROD

Kit, Rear Window Wiper/Washer Includes: Ref. 2-6

1шт.

2

87375643

WIPER MOTOR,12V

Rear Wiper Motor With Switch Includes: 2A&2B

1шт.

Includes All Hardware Shown

1шт.

2a

193865A1

WINDSHIELD WIPER SWI

Rocker

1шт.

2b

193914A1

COVER

Plastic

1шт.

3

87334803

WIPER ARM

Rear, 320mm

1шт.

4

87375644

WIPER BLADE

Rear, 380mm

1шт.

5

87343662

WINDSHIELD WASHER

Tubing, 2300mm

1шт.

6

3229749R1

NOZZLE CAP

1шт.

7

87337962

RESERVOIR, WINDSHIEL

Includes: Ref. 7A-7C Continue to Use Until Stock of 84293452 is Available

1шт.

7

84293452

RESERVOIR, WINDSHIEL

Includes: Ref. 7A-7C

1шт.

7a

NSS

NOT SOLD SEPARAT

Rear Washer Fluid Pump

1шт.

7b

NSS

NOT SOLD SEPARAT

Front Washer Fluid Pump

1шт.

7c

82036769

FILLER CAP

1шт.

Not Illustrated

1шт.
