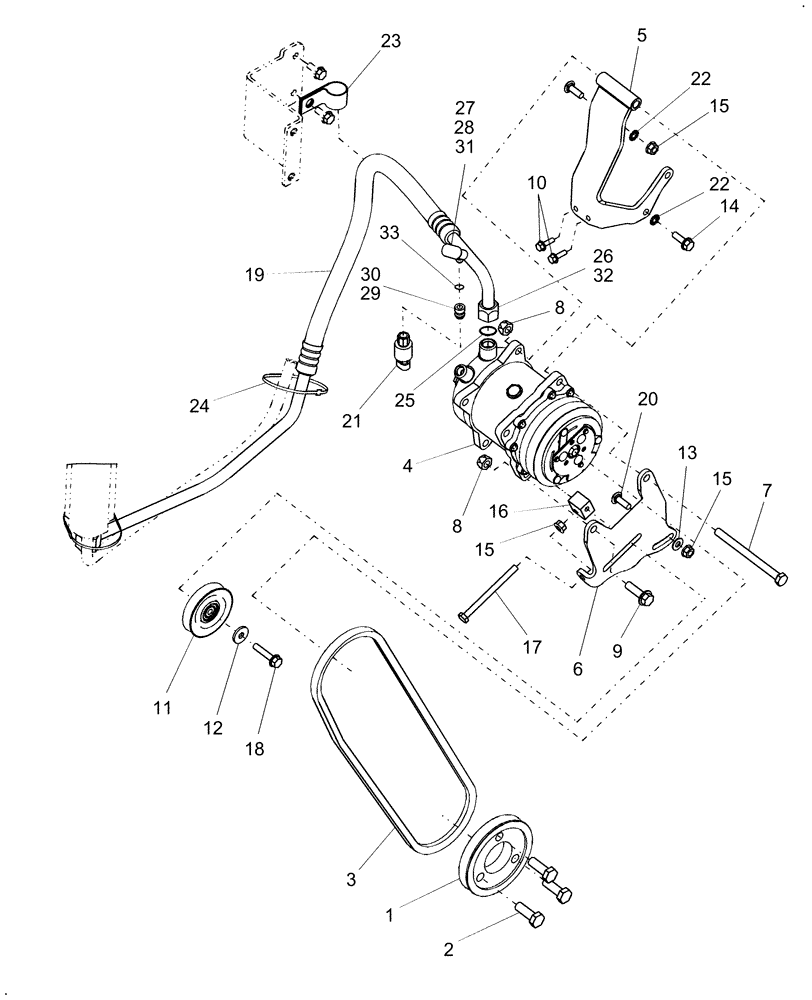

Запчасти Case IH DX45 (10.16) - COMPRESSOR MOUNT (10) - OPERATORS PLATFORM/CAB
№
Артикул
Название
Примечание
Количество
1
86405134
PULLEY
1шт.
2
9824642
BOLT,M12 x 1.75 x 42.68mm, Cl 10.9
3шт.
3
86401123
V-BELT,13.00 mm W x 1180.00 mm L
Air Conditioner
1шт.
4
87362509
AIRCOND. COMPRESSOR
1шт.
87362509R
REMAN-A/C COMPRESSOR
DX40, DX45 Both 4 CYL WITH CAB (7/06-)
1шт.
87362509C
CORE-DISTRIB KIT-FUE
Return Number
1шт.
5
87362240
BRACKET
Bracket
1шт.
6
87362246
BRACKET
Idler Mount
1шт.
7
86508575
BOLT,Hex, M10 x 130mm, Cl 8.8
1шт.
9
86511845
BOLT,M10 x 44.2mm OAL, Cl 8.8, Full Thd
1шт.
10
9804256
BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8
2шт.
11
87606706
PULLEY,78.49mm OD
Idler
1шт.
12
86624143
WASHER,0.34" ID x 1" OD x 0.12" Thk
1шт.
14
9671714
FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
1шт.
16
87582270
BLOCK
Idler Adjust
1шт.
17
725403
BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8, Full Thd
1шт.
19
87620404
HOSE
Suction W/Ports Includes: Ref. 23-33
1шт.
20
308761
CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8
2шт.
21
87363058
PRESSURE SWITCH
Low Pressure
1шт.
22
86632601
LOCK WASHER,8.4mm ID x 15mm OD x 0.8mm Thk
2шт.
23
719409
CLAMP
1шт.
24
263117
CABLE TIE,292.1mm L, Nylon, Black
CABLE STRAP
2шт.
25
NSS
NOT SOLD SEPARAT
Tube End, O-Ring Long Pilot
1шт.
26
NSS
NOT SOLD SEPARAT
Nut, Female O-Ring 7/8-14
1шт.
27
NSS
NOT SOLD SEPARAT
Fitting High Flow, Low Side Service Port
1шт.
28
414083A1
VALVE
Valve, High Flow, Low Side Service Port
1шт.
29
122081A1
FITTING,M10 x 1.25 x 26.43mm L
A/C Pressure Switch
1шт.
31
414081A1
CAP,M8 x 1 x 17.3mm OD x 21.1mm L
High Flow, Low Side Port
1шт.
Выбрано товаров: 35
