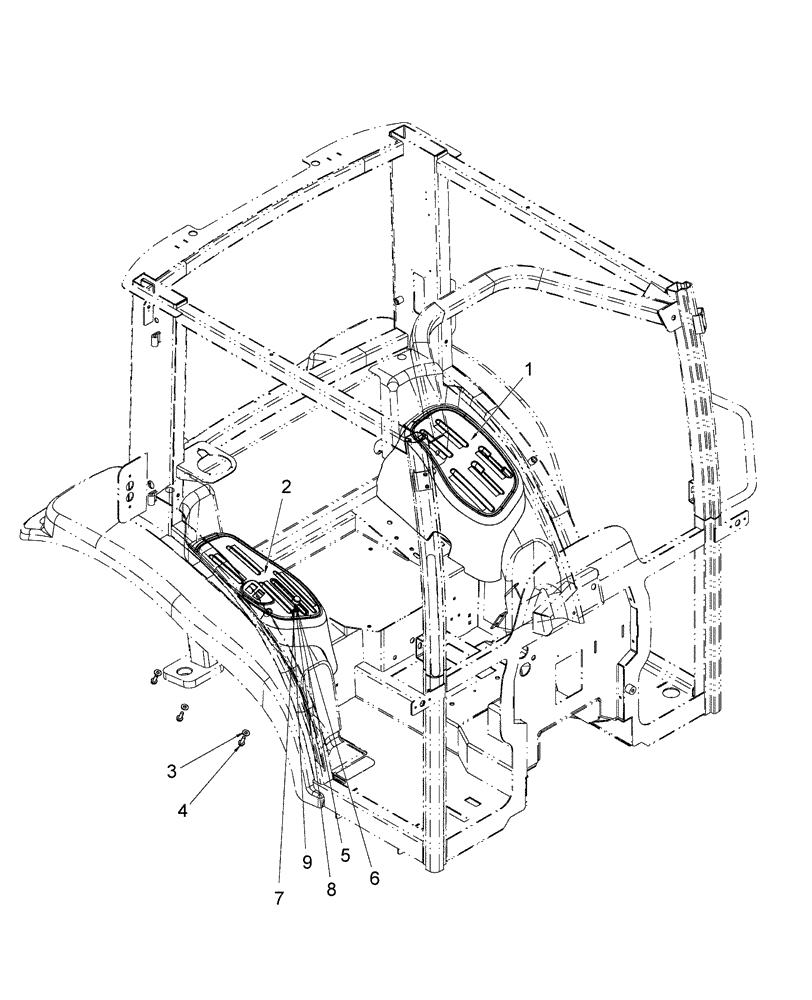

Запчасти Case IH DX45 (10.10) - POD TOPS (10) - OPERATORS PLATFORM/CAB

1

87623708

TRIM PANEL

LH Pod

1шт.

2

87390918

TOP COVER

RH Pod

1шт.

3

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

6шт.

4

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

5

86558917

STOP

HPL

1шт.

6

86508357

WASHER,.28" x .90" x .06" Thk, Nylon

1шт.

7

76028

WASHER,9/32" x 1" x .06" Thk

1шт.

8

86506579

KNOB

HPL Stop

1шт.

9

86546549

NUT

Nylon, M6

1шт.
