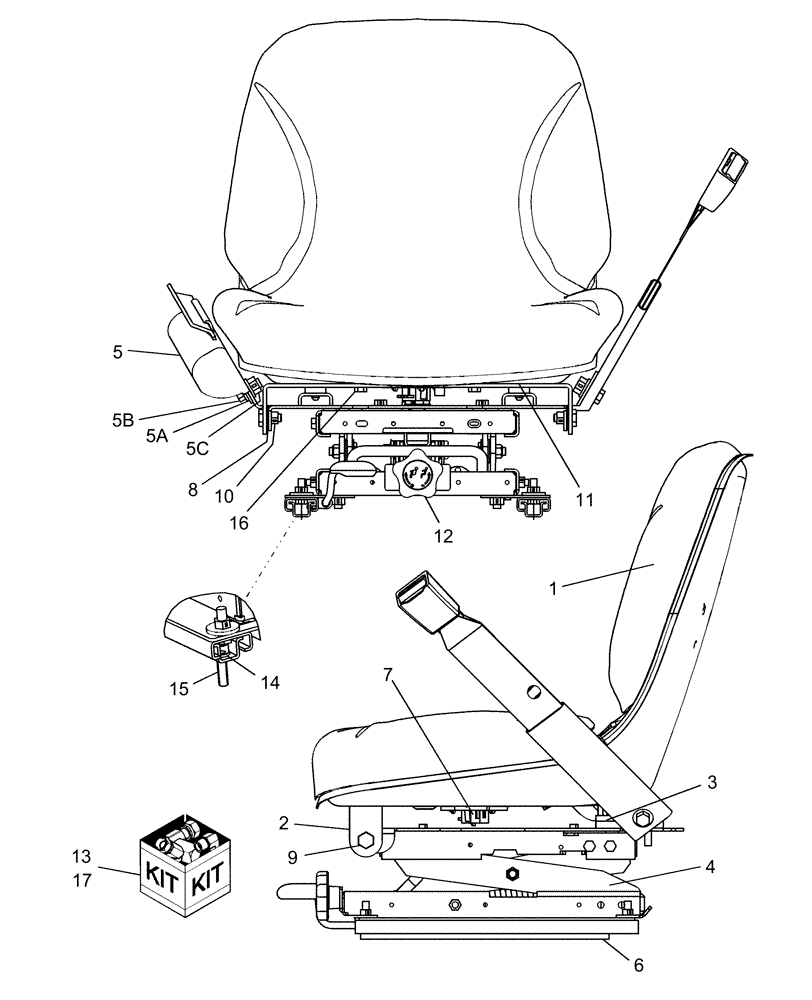

Запчасти Case IH DX45 (10.09) - DELUXE NON/SWIVEL SEAT & ARM REST KIT - 718852026 (10) - OPERATORS PLATFORM/CAB

1

87388683

SEAT

1шт.

2

87385525

SEAT PLATE

1шт.

3

276467

BUMPER

W/Clip

2шт.

4

87594362

SUSPENSION

1шт.

5

86403923

SAFETY BELT ,48.00 mm W

1шт.

5a

PL

PROCURE LOCALLY

Washer, Flat

4шт.

5b

PL

PROCURE LOCALLY

Bolt, Hex HD 7/16-20

2шт.

5c

PL

PROCURE LOCALLY

Nut, Centerlock 7/16-20

2шт.

6

87525344

SLIDE

Kit

1шт.

7

87385234

SWITCH

Operator's Presence

1шт.

8

87363666

SPACER

Black Polyethylene Plastic, 1.57mm Thick Pivot Bushing

2шт.

9

87385284

SPECIAL BOLT

3/8

2шт.

10

PL

PROCURE LOCALLY

Nut, CenterLock 3/8-16

2шт.

11

87395391

SEAT PLATE

Non-Swivel Assembly

1шт.

12

87385286

KNOB

1шт.

13

87576439

KIT

Seat Tilt Spacer

1шт.

14

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

4шт.

15

86625221

HEX SOC SCREW,M8 x 30mm, Cl 8.8

4шт.

16

PL

PROCURE LOCALLY

2шт.

17

718852026

ARMREST

KIT, Includes:

1шт.

Not Illustrated

1шт.

Order thru Wholegoods

1шт.

(1) ARMREST ASSY, LH

1шт.

(1) ARMREST ASSY, RH

1шт.

(1) ARMREST BRACKET ASSY

1шт.

(1) PLATE, cover, LH

1шт.

(1) PLATE, cover, RH

1шт.

(2) STOP, armrest

1шт.

(4) BOLT, 3/8-16x.75

1шт.

(2) SCREW, #10

1шт.

(4) LOCKWASHER, .375

1шт.

(2) WASHER, wave

1шт.
