(08.14) - DECALS, WARNING

Запчасти Case IH DX45 (08.14) - DECALS, WARNING (08) - SHEET METAL

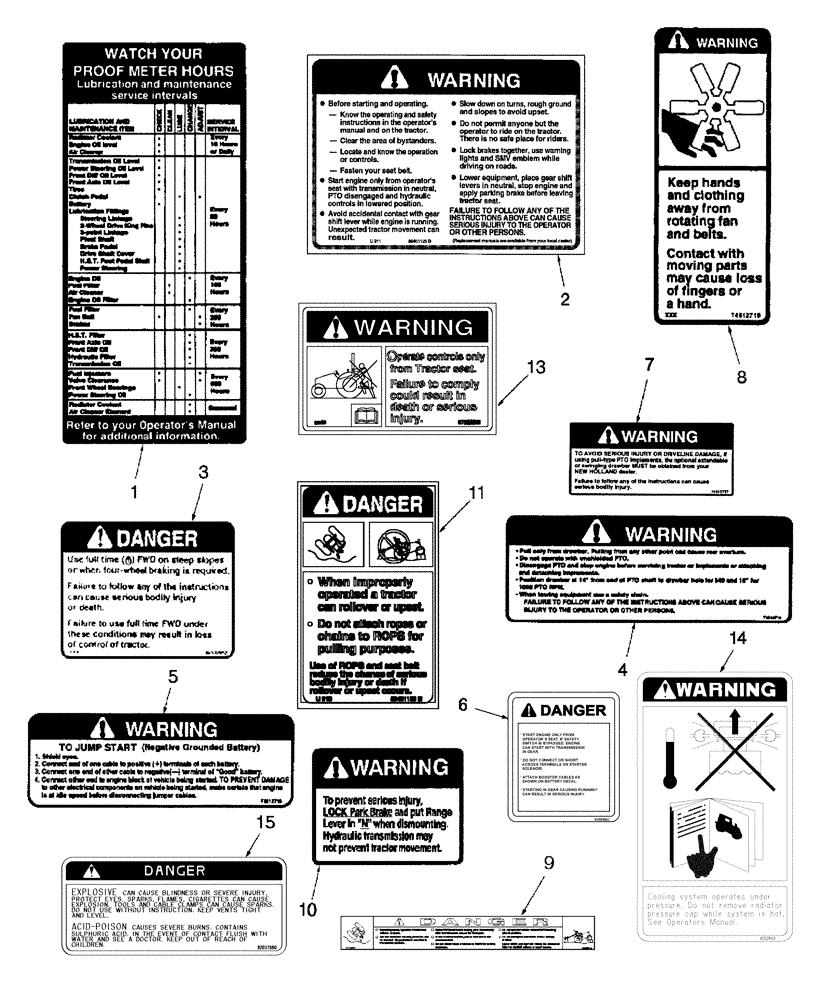

Схема запчастей Case IH DX45 - (08.14) - DECALS, WARNING (08) - SHEET METAL
8
14
13
1
6
3
9
7
5
15
11
4
2
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86400357

DECAL

Service Chart

1шт.

1

86540975

DECAL

Service Chart, French

1шт.

2

86401125

WARNING DECAL

Operating

1шт.

2

86402002

DECAL

Operating, French

1шт.

3

86532902

WARNING DECAL

FWD, SS

1шт.

3

86540974

DECAL

FWD, SS, French

1шт.

4

86532904

WARNING DECAL

Drawbar Pull

1шт.

4

86540967

DECAL

Drawbar Pull, French

1шт.

5

86402367

WARNING DECAL

Jump Start

1шт.

5

86402005

WARNING DECAL

Jump Start, French

1шт.

6

82985062

DANGER DECAL

Start

1шт.

6

86540970

DECAL

Start, French

1шт.

7

86401915

DECAL

PTO

1шт.

7

86540968

WARNING DECAL

PTO, French

1шт.

8

86532907

WARNING DECAL

Fan

2шт.

8

86540971

DECAL

Fan, French

2шт.

9

86543805

DANGER DECAL

Foldable ROPS

1шт.

9

86402006

DECAL

Foldable ROPS, French

1шт.

10

86576391

WARNING DECAL

HST

1шт.

10

86402007

DECAL

HST, French

1шт.

11

86401130

DECAL

Fixed ROPS

1шт.

11

86402008

DECAL

Fixed ROPS, French

1шт.

12

86547781

REFLECTOR,RED

TAPE Reflective, Red, 50x230mm

2шт.

13

87300025

WARNING DECAL

1шт.

14

82029421

WARNING DECAL

Radiator

1шт.

15

82037580

DECAL

Battery Safety Instructions

1шт.
