Запчасти Case IH DX40 (07.12) - HYD PIPING & OIL COOLER, W/HST (07) - HYDRAULIC SYSTEM

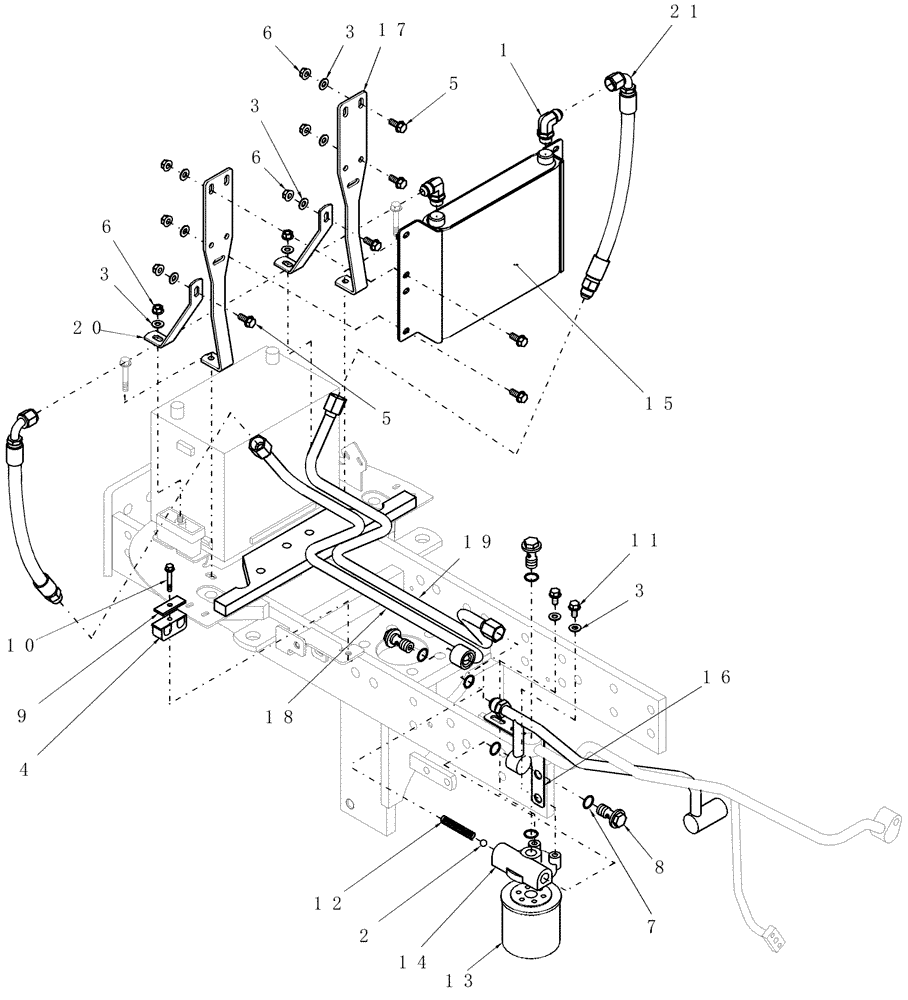

Схема запчастей Case IH DX40 - (07.12) - HYD PIPING & OIL COOLER, W/HST (07) - HYDRAULIC SYSTEM
6
3
11
19
14
9
4
5
1
3
2
13
3
18
10
15
6
3
12
6
16
5
7
20
17
21
8

Артикул

Название

Примечание

Количество

1

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

2шт.

2

110680

BALL,12.75mm OD

1шт.

3

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

4

781221

CLAMP

1шт.

5

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

6шт.

6

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

8шт.

7

SBA052100200

O-RING,2.4mm Thk x 19.8mm ID, 70 Duro

6шт.

8

SBA398480240

BANJO BOLT,3/8"

3шт.

9

86509354

PLATE,9/32" ID x 3/4" W x 2" L

1шт.

10

844-6040

BOLT,Hvy Hex, M6 x 40mm, Cl 8.8

1шт.

11

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

12

86532703

SPRING

HST Bypass

1шт.

13

SBA340501030

FILTER

HST, W/Internal Bypass

1шт.

14

SBA340560440

FILTER HEAD

HST

1шт.

15

86556388

HEAT EXCHANGER

1шт.

16

86567844

BRACKET

1шт.

17

86574977

BRACKET

Oil Cooler

2шт.

18

86578077

TUBE,15.90 mm DIA

Out

1шт.

19

86578079

TUBE,15.90 mm DIA

In

1шт.

20

86578254

BRACKET

2шт.

21

86578904

HOSE,12.70 mm ID, 410, 27.7 mm L

Oil Cooler

2шт.

Выбрано товаров: 21
