Запчасти Case IH DX40 (04.09) - POWER STEERING PUMP ASSEMBLY (04) - FRONT AXLE & STEERING

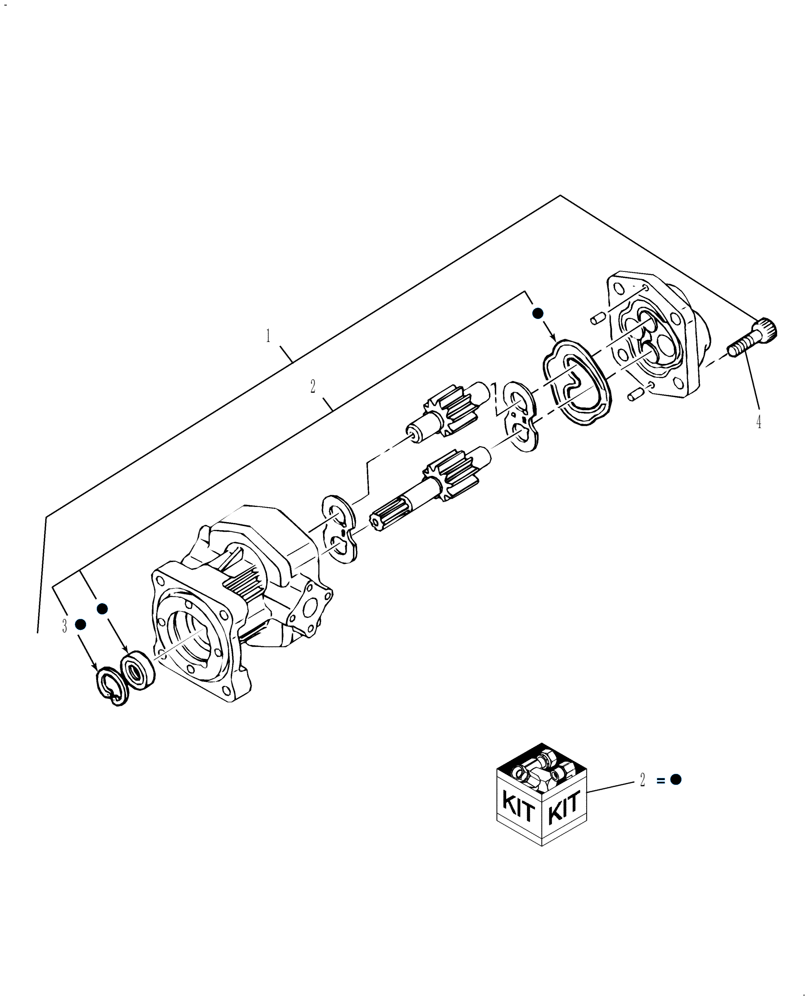

Схема запчастей Case IH DX40 - (04.09) - POWER STEERING PUMP ASSEMBLY (04) - FRONT AXLE & STEERING
2
2
1
3
4

Артикул

Название

Примечание

Количество

1

SBA340451020

HYDRAULIC PUMP

Power Steering, Includes: Ref. 2-4

1шт.

SBA340451020R

REMAN-HYD PUMP

D45, D40 BOTH PIN # HBA0005005 & ABOVE (12/00-), D35 PIN # HBA0005002 & ABOVE (12/00-8/01), DX40 PIN # HBA0005006 & ABOVE, DX45 PIN # HBA0005007 & ABOVE BOTH (12/00-8/03), DX35 (CLASS 3) PIN # HBA0005004 & ABOVE (12/00-1/04) ALL CASE IH COMPACT TRACTOR

1шт.

SBA340451020C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

SBA340490224

SEAL KIT

Power Steering

1шт.

3

301642

SNAP RING,M28, Int

1шт.

4

SBA340490187

BOLT

4шт.

Выбрано товаров: 6
