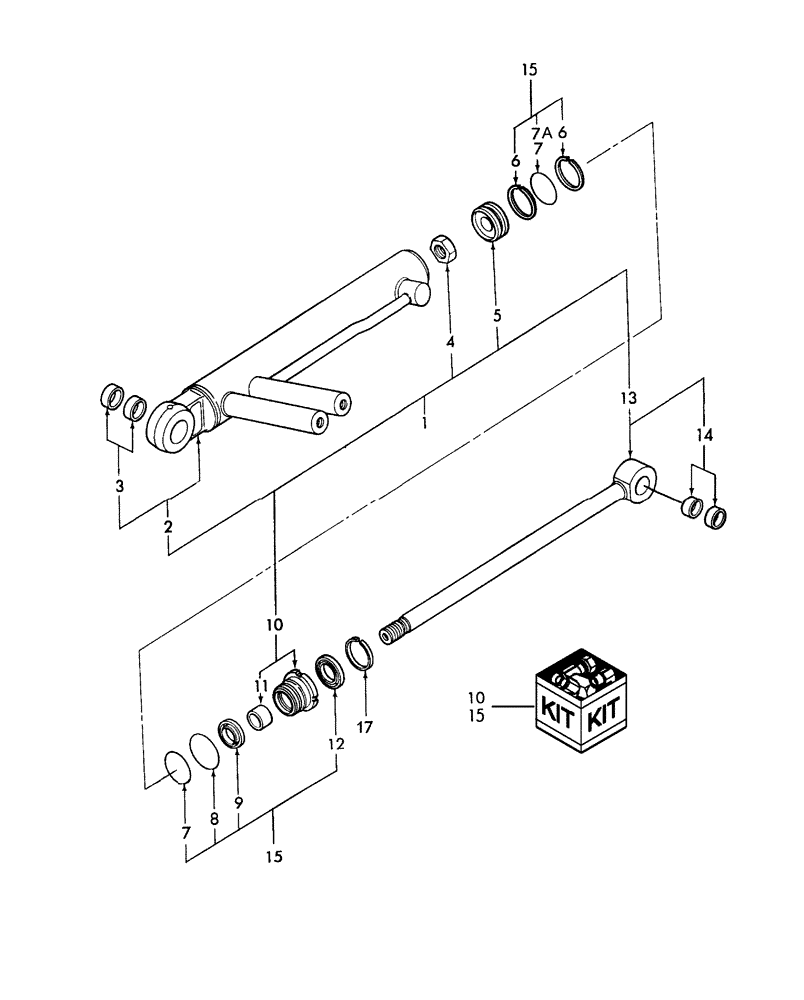

Запчасти Case IH DX40 (04.05.01) - POWER STEERING CYLINDER ASSEMBLY, W/FWD (04) - FRONT AXLE & STEERING

1

SBA344952190

CYLINDER

Power Steering, Includes: Ref. 2 thru 14

1шт.

No longer serviced

1шт.

Replaced by SBA344952870, components still serviced

1шт.

1

SBA344952870

CYLINDER

Power Steering, Includes: Ref. 2 thru 15, 17

1шт.

USED ON & ABOVE LIGHT GRAY AXLE SN 3F18395 D35/DX35 & 3F18399 D40/DX40 & D45/DX45

1шт.

USED ON & ABOVE DARK GRAY AXLE SN 3F24854 D35/DX35 & 3F24735 D40/DX40 & D45/DX45

1шт.

SBA344952871R

REMAN-HYD CYLINDER

D35 PIN # HBA0005002 & ABOVE (12/00-8/01), D40 PIN # HBA0005005 & ABOVE (1/04-), D45 PIN # HBA0005005 & ABOVE (12/00-), DX35 PIN # HBA0005004 & ABOVE (12/00-1/04), DX40 PIN # HBA0005006 & ABOVE (8/03-), DX45 PIN # HBA0005007 & ABOVE (12/00-11/03), Reman for New P/N SBA344952870

1шт.

SBA344952871C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

CYLINDER TUBE ASSY., Includes: Ref. 3

1шт.

Used with SBA344952190 cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

Tube Cylinder, Includes: Ref. 3

1шт.

Used with SBA344952870 cylinder

1шт.

USED ON & ABOVE LIGHT GRAY AXLE SN 3F18395 D35/DX35 & 3F18399 D40/DX40 & D45/DX45

1шт.

USED ON & ABOVE DARK GRAY AXLE SN 3F24854 D35/DX35 & 3F24735 D40/DX40 & D45/DX45

1шт.

3

SBA344960191

BUSHING

2шт.

Used with SBA344952190 cylinder

1шт.

3

SBA344960434

BUSHING

2шт.

Used with SBA344952870 cylinder

1шт.

USED ON & ABOVE LIGHT GRAY AXLE SN 3F18395 D35/DX35 & 3F18399 D40/DX40 & D45/DX45

1шт.

USED ON & ABOVE DARK GRAY AXLE SN 3F24854 D35/DX35 & 3F24735 D40/DX40 & D45/DX45

1шт.

4

SBA020600014

NUT

1шт.

Used with SBA344952190 cylinder

1шт.

4

SBA020910014

NUT

M14

1шт.

Used with SBA344952870 cylinder

1шт.

USED ON & ABOVE LIGHT GRAY AXLE SN 3F18395 D35/DX35 & 3F18399 D40/DX40 & D45/DX45

1шт.

USED ON & ABOVE DARK GRAY AXLE SN 3F24854 D35/DX35 & 3F24735 D40/DX40 & D45/DX45

1шт.

5

NSS

NOT SOLD SEPARAT

Piston

1шт.

Used with SBA344952190 cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

Piston

1шт.

Used with SBA344952870 cylinder

1шт.

USED ON & ABOVE LIGHT GRAY AXLE SN 3F18395 D35/DX35 & 3F18399 D40/DX40 & D45/DX45

1шт.

USED ON & ABOVE DARK GRAY AXLE SN 3F24854 D35/DX35 & 3F24735 D40/DX40 & D45/DX45

1шт.

6

NSS

NOT SOLD SEPARAT

Ring Backup

2шт.

Used with SBA344952190 cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

Ring Backup

2шт.

Used with SBA344952870 cylinder

1шт.

USED ON & ABOVE LIGHT GRAY AXLE SN 3F18395 D35/DX35 & 3F18399 D40/DX40 & D45/DX45

1шт.

USED ON & ABOVE DARK GRAY AXLE SN 3F24854 D35/DX35 & 3F24735 D40/DX40 & D45/DX45

1шт.

7

NSS

NOT SOLD SEPARAT

2шт.

Used with SBA344952190 cylinder

1шт.

7

SBA052310350

O-RING

1шт.

Used with SBA344952870 cylinder

1шт.

USED ON & ABOVE LIGHT GRAY AXLE SN 3F18395 D35/DX35 & 3F18399 D40/DX40 & D45/DX45

1шт.

USED ON & ABOVE DARK GRAY AXLE SN 3F24854 D35/DX35 & 3F24735 D40/DX40 & D45/DX45

1шт.

7a

SBA052110340

O-RING

1шт.

Used with SBA344952870 cylinder

1шт.

USED ON & ABOVE LIGHT GRAY AXLE SN 3F18395 D35/DX35 & 3F18399 D40/DX40 & D45/DX45

1шт.

USED ON & ABOVE DARK GRAY AXLE SN 3F24854 D35/DX35 & 3F24735 D40/DX40 & D45/DX45

1шт.

8

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

Used with SBA344952190 cylinder

1шт.

8

SBA052400420

O-RING

1шт.

Used with SBA344952870 cylinder

1шт.

USED ON & ABOVE LIGHT GRAY AXLE SN 3F18395 D35/DX35 & 3F18399 D40/DX40 & D45/DX45

1шт.

USED ON & ABOVE DARK GRAY AXLE SN 3F24854 D35/DX35 & 3F24735 D40/DX40 & D45/DX45

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

Used with SBA344952190 cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

Packing Rod

1шт.

Used with SBA344952870 cylinder

1шт.

USED ON & ABOVE LIGHT GRAY AXLE SN 3F18395 D35/DX35 & 3F18399 D40/DX40 & D45/DX45

1шт.

USED ON & ABOVE DARK GRAY AXLE SN 3F24854 D35/DX35 & 3F24735 D40/DX40 & D45/DX45

1шт.

10

NSS

NOT SOLD SEPARAT

Head, Cylinder, Includes: Ref. 11

1шт.

Used with SBA344952190 cylinder

1шт.

10

SBA344960455

REPAIR KIT

Guide, Includes: Ref. 11 (SBA344960430)

1шт.

Used with SBA344952870 cylinder

1шт.

USED ON & ABOVE LIGHT GRAY AXLE SN 3F18395 D35/DX35 & 3F18399 D40/DX40 & D45/DX45

1шт.

USED ON & ABOVE DARK GRAY AXLE SN 3F24854 D35/DX35 & 3F24735 D40/DX40 & D45/DX45

1шт.

11

SBA340293174

BUSHING

1шт.

Used with SBA344952190 cylinder

1шт.

11

SBA344960430

BUSHING

1шт.

Used with SBA344952870 cylinder

1шт.

USED ON & ABOVE LIGHT GRAY AXLE SN 3F18395 D35/DX35 & 3F18399 D40/DX40 & D45/DX45

1шт.

USED ON & ABOVE DARK GRAY AXLE SN 3F24854 D35/DX35 & 3F24735 D40/DX40 & D45/DX45

1шт.

12

NSS

NOT SOLD SEPARAT

Ring Wiper

1шт.

Used with SBA344952190 cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

Seal Dust

1шт.

Used with SBA344952870 cylinder

1шт.

USED ON & ABOVE LIGHT GRAY AXLE SN 3F18395 D35/DX35 & 3F18399 D40/DX40 & D45/DX45

1шт.

USED ON & ABOVE DARK GRAY AXLE SN 3F24854 D35/DX35 & 3F24735 D40/DX40 & D45/DX45

1шт.

13

NSS

NOT SOLD SEPARAT

Kit Includes: Ref. 14

1шт.

Used with SBA344952190 cylinder

1шт.

13

SBA344960451

ROD

Includes: Ref. 14

1шт.

Used with SBA344952870 cylinder

1шт.

USED ON & ABOVE LIGHT GRAY AXLE SN 3F18395 D35/DX35 & 3F18399 D40/DX40 & D45/DX45

1шт.

USED ON & ABOVE DARK GRAY AXLE SN 3F24854 D35/DX35 & 3F24735 D40/DX40 & D45/DX45

1шт.

14

SBA398511580

BUSHING

Bushing ID .7965"/OD .9120"

2шт.

Used with SBA344952190 cylinder

1шт.

14

SBA344960433

BUSHING

ID .8770"/OD .9915

2шт.

Used with SBA344952870 cylinder

1шт.

USED ON & ABOVE LIGHT GRAY AXLE SN 3F18395 D35/DX35 & 3F18399 D40/DX40 & D45/DX45

1шт.

USED ON & ABOVE DARK GRAY AXLE SN 3F24854 D35/DX35 & 3F24735 D40/DX40 & D45/DX45

1шт.

15

SBA344960402

REPAIR KIT

Includes: Ref. 6 thru 9 and 12

1шт.

Used with SBA344952190 cylinder

1шт.

15

SBA344960442

REPAIR KIT

Includes: Ref. 6, 7, 7A, 8, 9 and 12

1шт.

Used with SBA344952870 cylinder

1шт.

USED ON & ABOVE LIGHT GRAY AXLE SN 3F18395 D35/DX35 & 3F18399 D40/DX40 & D45/DX45

1шт.

USED ON & ABOVE DARK GRAY AXLE SN 3F24854 D35/DX35 & 3F24735 D40/DX40 & D45/DX45

1шт.

16

SBA060620000

LUBE NIPPLE

2шт.

Used with SBA344952190 cylinder

1шт.

17

SBA344960438

SNAP RING

1шт.

Used with SBA344952870 cylinder

1шт.

USED ON & ABOVE LIGHT GRAY AXLE SN 3F18395 D35/DX35 & 3F18399 D40/DX40 & D45/DX45

1шт.

USED ON & ABOVE DARK GRAY AXLE SN 3F24854 D35/DX35 & 3F24735 D40/DX40 & D45/DX45

1шт.
