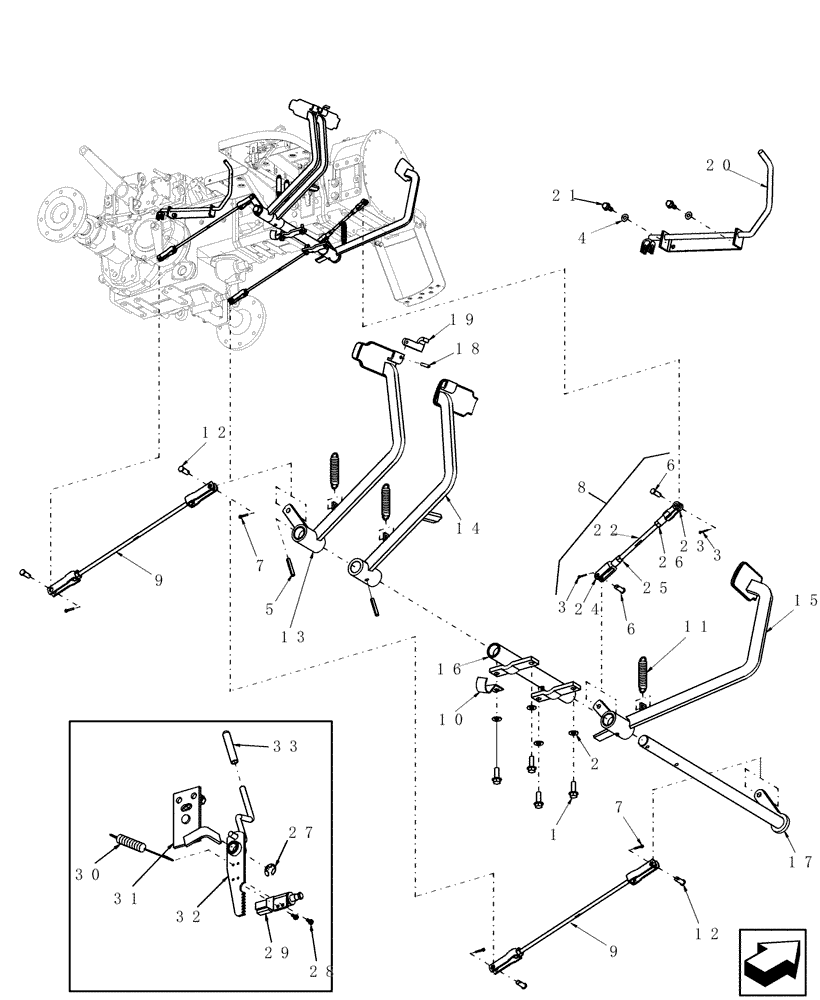

Запчасти Case IH DX40 (03.01) - BRAKE & CLUTCH PEDAL, 12X12 (03) - TRANSMISSION

1

9804262

BOLT,M10 x 39.2mm, Cl 8.8

4шт.

2

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

3

280250

COTTER PIN,3/32" OD x 3/4" L

2шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

5

86977791

LOCK PIN,M8 x 45, Slotted

2шт.

6

510390

CLEVIS PIN,8.33mm OD x 30.66mm L

2шт.

7

80756

COTTER PIN,1/8" x 3/4"

4шт.

8

86400132

CONNECTING LINK

Clutch, Includes: Ref. 3,6,22 thru 26

1шт.

9

86400169

ROD

Brake

2шт.

10

86400268

HOLDER

Holder, Tube

1шт.

11

86530740

SPRING

Pedal

3шт.

12

86530992

CLEVIS PIN,10mm OD x 29.1mm L

4шт.

13

86554927

PEDAL

Brake, RH Includes: 321204 Lube Fitting

1шт.

14

86403964

PEDAL

Brake, L.H.

1шт.

15

86554929

PEDAL

Clutch Includes: 321204 Lube Fitting

1шт.

16

86554986

TUBE,180, 72.5 mm L

Brake Pivot

1шт.

17

86402087

SHAFT

Pivot

1шт.

18

86555830

ROLL PIN

Spiral

1шт.

19

86556100

LATCH

Brake Lock

1шт.

20

86558422

DIFF. LOCK ASSY

RH

1шт.

21

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

22

86400131

ROD

Clutch

1шт.

23

86400133

INSERT

3/8 Clevis

1шт.

24

86400167

YOKE

End

1шт.

25

86591190

JAM NUT,Jam, 3/8"-24, G2, LH

1шт.

26

87308

JAM NUT,Jam, 3/8"-24, G2

1шт.

27

505291

LOCKING RING,#62, .480" Dia, E-Type

1шт.

28

392696

SELF-TAP SCREW,HWH, M4 x 0.7 x 10mm

Self-Tapping, HWH, M4 x .7 x 10

2шт.

29

86400228

SWITCH

1шт.

30

86530816

SPRING

Extension

1шт.

31

86558138

BRACKET

Parkbrake

1шт.

32

86403965

RATCHET

1шт.

33

86567967

HANDLE GRIP

Parkbrake

1шт.
