Запчасти Case IH DX40 (07.12.01) - OIL COOLER (02) - ENGINE EQUIPMENT

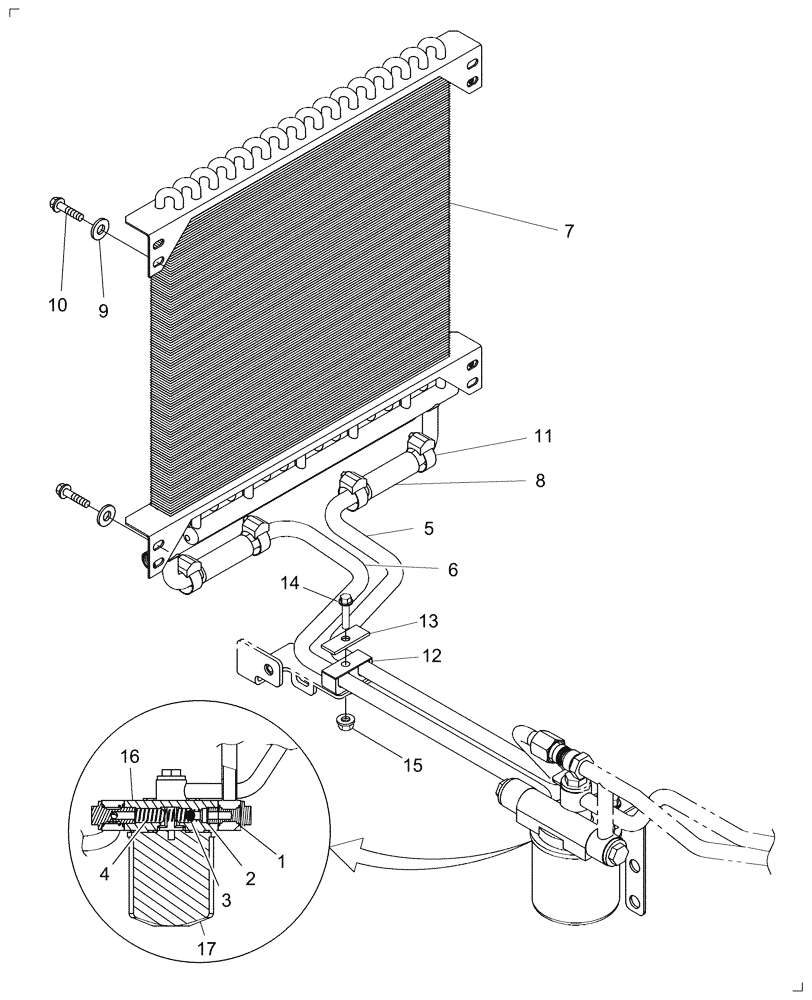

Схема запчастей Case IH DX40 - (07.12.01) - OIL COOLER (02) - ENGINE EQUIPMENT
9
6
15
14
17
4
13
11
12
3
5
7
1
2
8
16
10

Артикул

Название

Примечание

Количество

1

SBA052100200

O-RING,2.4mm Thk x 19.8mm ID, 70 Duro

6шт.

2

SBA398480240

BANJO BOLT,3/8"

3шт.

3

210006

BALL

1шт.

4

86532703

SPRING

1шт.

5

87577398

TUBE,15.9 mm OD

Oil Cooler IN

1шт.

6

87577403

TUBE,13.42 mm ID x 550.43, 218.36 mm L

Oil Cooler OUT W/Fitting

1шт.

7

87344149

OIL COOLER

1шт.

8

87345854

FLEXIBLE HOSE,15.9mm ID x 69mm L

HST Cooler

2шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

10

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

4шт.

11

86505159

HOSE CLAMP

4шт.

12

781221

CLAMP

1шт.

13

86509354

PLATE,9/32" ID x 3/4" W x 2" L

2шт.

14

86511840

BOLT,Hex Flng, M6 x 1 x 40mm, Cl 8.8

1шт.

15

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

16

SBA340560440

FILTER HEAD

1шт.

17

SBA340501030

FILTER

1шт.

Выбрано товаров: 17
