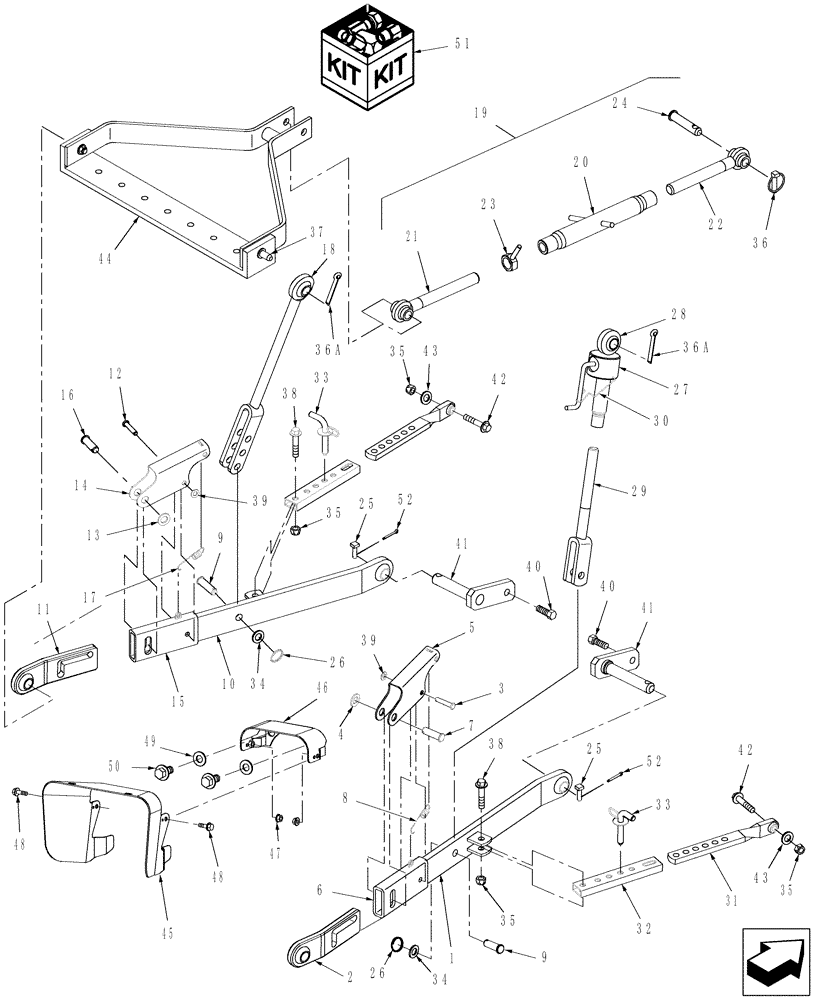

Запчасти Case IH DX40 (09.02) - DELUXE 3PT HITCH ASSY. & PTO SHIELD (09) - IMPLEMENT LIFT

1

86402748

LIFT LINK

Lower Assy., RH, Includes: Ref. 2 Thru 8

1шт.

2

86402625

LIFT LINK END ASSY

RH

1шт.

3

14610270

LOCK PIN,M10 x 45, Slotted

1шт.

4

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

1шт.

5

86402627

COVER

1шт.

6

86402635

LIFT LINK

Lower

1шт.

7

86400412

CLEVIS PIN,15.88mm OD x 63mm L

(5/8"), Uses 87398 Cotter Pin

1шт.

8

86532826

SPRING,Extension, 60.7mm L

1шт.

9

86400412

CLEVIS PIN,15.88mm OD x 63mm L

(5/8"), Uses 87398 Cotter Pin

2шт.

10

86402747

LIFT LINK

Lower Assy., LH, Includes: Ref. 11 Thru 17

1шт.

11

86402626

LIFT LINK END ASSY

LH

1шт.

12

14610270

LOCK PIN,M10 x 45, Slotted

1шт.

13

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

1шт.

14

86402627

COVER

1шт.

15

86402635

LIFT LINK

Lower

1шт.

16

86400412

CLEVIS PIN,15.88mm OD x 63mm L

(5/8"), Uses 87398 Cotter Pin

1шт.

17

86532826

SPRING,Extension, 60.7mm L

1шт.

18

86402629

LIFT LINK

L.H.

1шт.

19

86402593

TOP LINK

Includes: Ref. 20 Thru 23

1шт.

20

86402628

HOUSING

1шт.

21

86558206

BALL JOINT

RH

1шт.

22

86558207

BALL JOINT,M24 x 3, LH Threads

LH

1шт.

23

86400234

JAM NUT

1шт.

24

SBA370911000

PIN

1шт.

25

SBA370910060

PIN

2шт.

26

86532783

RING

Knockout

2шт.

27

86402632

LEVELLING DEVICE

Includes: Ref. 28 Thru 30

1шт.

28

86402633

GEAR

1шт.

29

86400283

LIFT LINK

1шт.

30

86400284

LOCK

Crank

1шт.

31

86558169

STABILIZER

Male

2шт.

32

86562819

STABILIZER

Female

2шт.

33

86400280

PIN

Stabilizer w/Chain

2шт.

34

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

2шт.

35

100038

NUT,M12 x 1.75, Cl 8

4шт.

36

132757

LINCH PIN,11.11mm OD x 44.45mm L

1шт.

36a

86523778

COTTER PIN,3/8" x 2"

2шт.

37

PBF9590

PIN

2шт.

38

87015908

BOLT,Hvy Hex, M12 x 60mm, Cl 10.9

2шт.

39

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

2шт.

40

SBA011511225

BOLT

M12 x 25

4шт.

41

SBA370900450

PIN

2шт.

42

86505259

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

2шт.

43

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

44

86402517

KIT

Rear Counterweight Bracket, Mounts on 3-Point Hitch & Will Accept Up To (7) Front End Weights

1шт.

45

86402603

SHIELD

PTO

1шт.

46

86402580

BRACKET

1шт.

47

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

48

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

49

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

2шт.

50

86511846

BOLT,Hex, M16 x 30mm, Cl 8.8, Full Thd

2шт.

51

710902076

DIA KIT, ADD PROD

KIT Deluxe 3PT Includes: Ref. 1 thru 8, 10 thru 17 & 27 thru 30

1шт.

52

80756

COTTER PIN,1/8" x 3/4"

2шт.
