Запчасти Case IH DX40 (03.03.01) - FORWARD & REVERSE PEDALS, HST (03) - TRANSMISSION

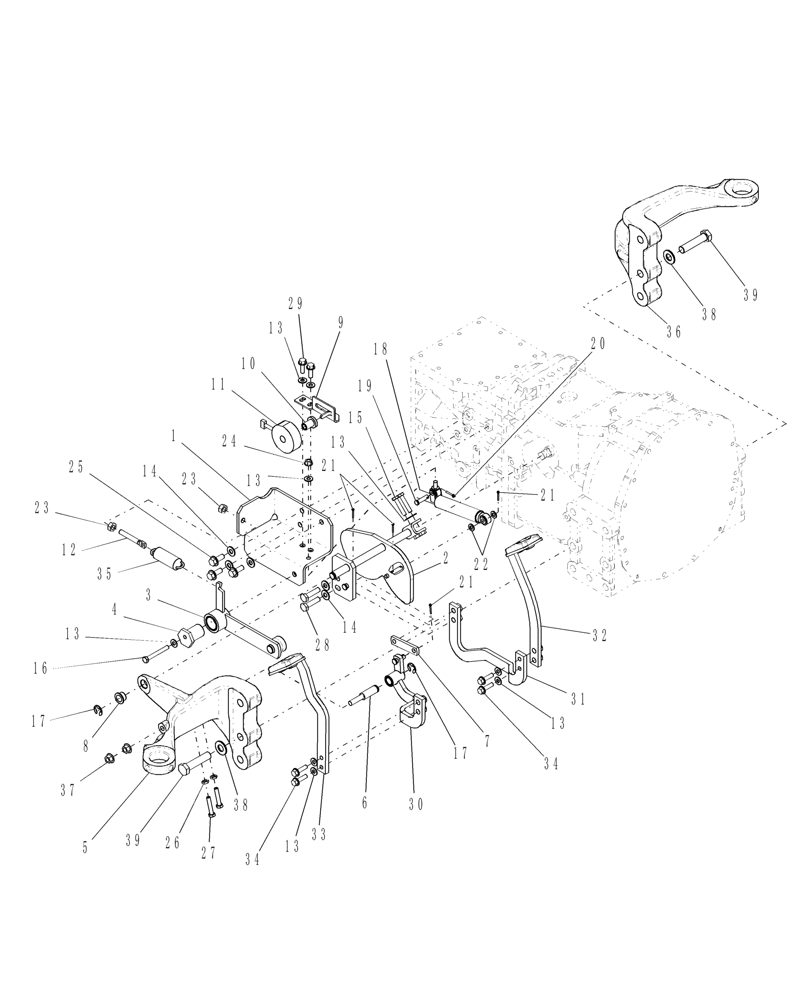

Схема запчастей Case IH DX40 - (03.03.01) - FORWARD & REVERSE PEDALS, HST (03) - TRANSMISSION
23
27
6
33
38
9
17
13
32
35
22
29
5
26
3
34
8
31
14
13
21
2
14
39
21
37
39
36
1
15
34
25
7
24
12
38
28
11
23
13
16
4
13
30
21
17
20
10
18
13
13
19

Артикул

Название

Примечание

Количество

1

86403177

BRACKET

1шт.

2

87300017

SUPPORT

Trans Pivot

1шт.

3

86573782

SUPPORT

Centering Pivot Includes: Ref. 34 & 35

1шт.

4

87346414

ECCENTRIC

Stud

1шт.

5

87356856

MOUNTING PARTS

1шт.

6

87359845

REVERSE SHAFT

Pedal, Pivot

1шт.

7

86400171

CONNECTING LINK

HST Pedal

1шт.

8

86558960

BUSHING,Hat, 15.8mm ID x 19.05mm OD x 25.4mm OD x 12.7mm W

1шт.

9

86573772

BRACKET

Magnet

1шт.

10

86532932

BUSHING

Cruise

1шт.

11

87316542

ELECTROMAGNET

HST Control 6" Wire Lead

1шт.

12

86400173

BOLT

Spade

1шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

14

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

5шт.

15

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

2шт.

16

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

1шт.

17

1826919

SNAP RING

2шт.

18

SBA378910020

DAMPER

1шт.

19

213399

CLEVIS PIN,5/16" x 1 1/4"

1шт.

20

80756

COTTER PIN,1/8" x 3/4"

1шт.

21

280250

COTTER PIN,3/32" OD x 3/4" L

4шт.

22

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

2шт.

23

100016

NUT,M10 x 1.5, Cl 8

2шт.

24

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

25

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

3шт.

26

100097

JAM NUT,Thin, M8 x 1.25, Cl 04

2шт.

27

120106

BOLT,M8 x 1.25 x 45.45mm, Cl 8.8

2шт.

28

43248

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9

2шт.

29

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

30

87361273

REAR PTO ASSY

Pedal, Reverse, Lower Includes (2) 86524680 bushing

1шт.

31

86403349

PEDAL

Forward , Lower

1шт.

32

86403350

PEDAL

Forward, Upper

1шт.

33

86403355

PEDAL

Reverse, Upper

1шт.

34

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

4шт.

35

87304423

SPRING

Pedal

1шт.

36

87356858

MOUNTING PARTS

Cab, Front

1шт.

37

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

38

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

2шт.

39

9847468

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

2шт.

40

86567931

RUBBER PEDAL PAD

Forward, Upper & Reverse, Upper

2шт.

Выбрано товаров: 40
