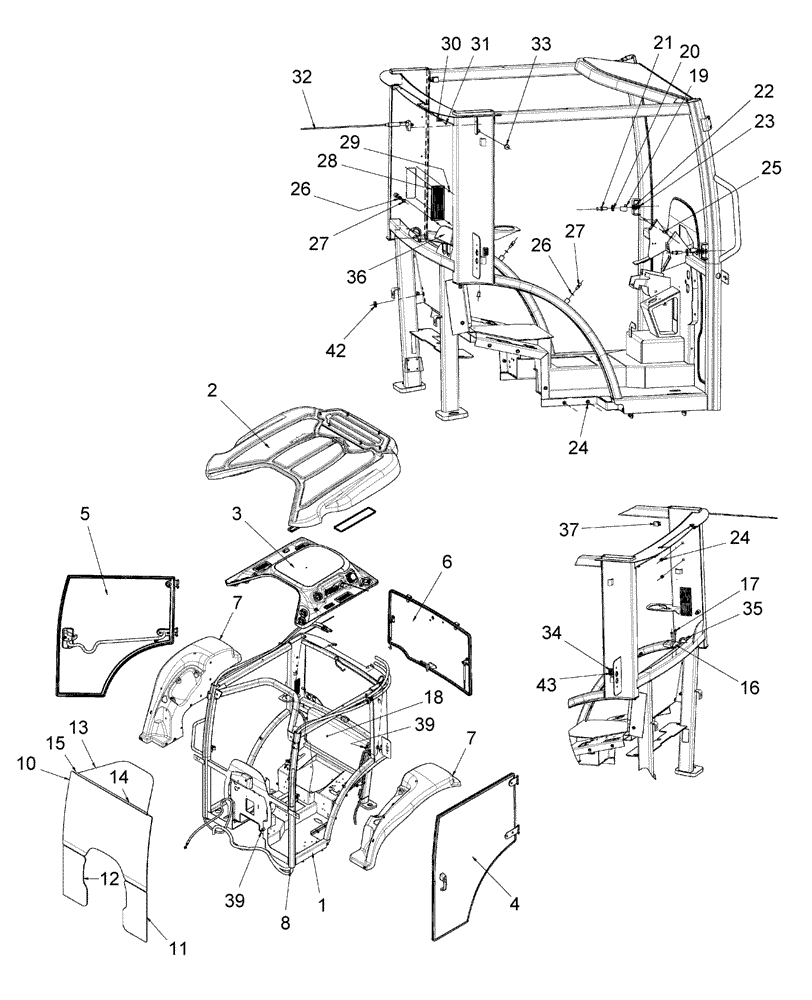

Запчасти Case IH DX40 (10.01) - CAB (10) - OPERATORS PLATFORM/CAB

1

87627862

CAB

CAB, COMPLETE

1шт.

2

0C

ORDER COMPONENTS

Roof Ref. to Fig. 10.02

1шт.

3

0C

ORDER COMPONENTS

Headliner Ref. to Fig. 10.03

1шт.

4

0C

ORDER COMPONENTS

Door Ref. to Fig. 10.24

1шт.

5

0C

ORDER COMPONENTS

Door RH Refer to Fig. 10.25

1шт.

6

0C

ORDER COMPONENTS

Rear Window, Refer to Fig. 10.26

1шт.

7

0C

ORDER COMPONENTS

Fenders, Refer to Fig. 10.27

1шт.

8

0C

ORDER COMPONENTS

Hoses, Refer to Fig. 10.28

1шт.

10

87523293

WINDSHIELD

Front Window

1шт.

11

87523294

GLASS

Lower Front LH

1шт.

12

87523295

GLASS

Lower Front RH

1шт.

13

87315314

CAB GLASS

Roof Skylight

1шт.

14

87315317

COVER

Window Seam

1шт.

15

PL

PROCURE LOCALLY

Silicone

1шт.

16

186149A4

STRIKER PLATE

Rear Window

1шт.

17

781-24620

SELF-TAP SCREW,Hex Flg Hd, M6 x 20

2шт.

18

87612939

PANEL

Foam, Rear Panel, Wheat

1шт.

19

1977919C1

PROTECTOR

Protector, Door Striker

2шт.

20

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2шт.

21

87543417

SPECIAL BOLT

M12x1, Door Striker

2шт.

22

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

23

87378449

THIN NUT,M12 x 1

Nut, Hex Thin M12x1

2шт.

24

P35448

RIVET

Nut, M8x1.5

24шт.

25

87603595

NUT,BH, M4 x 0.7 x 11.9mm L

Rivet, M4x0.7

2шт.

26

892-14008

LOCK WASHER,M8

Spring Lock

4шт.

27

9706807

BALL STUD,M8 x 1.25

BALL PIN

4шт.

28

87327755

GRILLE

HVAC Recirculation

2шт.

29

87605314

RIVET

Fastener Micro-Tuflock

8шт.

30

86520824

HOOK

1шт.

31

87324967

SCREW,Cross Pan Hd, M4 x 16mm

2шт.

32

82008643

ANTENNA

1шт.

32a

82014550

CABLE,2300mm L

2300mm

1шт.

Not Illustrated

1шт.

33

87373039

GROMMET

Rubber .118" I.D.

1шт.

34

87609833

DOOR SWITCH

Switch, Door Jam

2шт.

35

248-2156

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

Rubber

2шт.

36

254711A1

GROMMET

Implement Access

1шт.

37

87414866

RELAY,12V, 20A

Micro

1шт.

39

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

40

NS

NOT SERVICED

Foam Fender LH

1шт.

41

NS

NOT SERVICED

Foam Fender RH

1шт.

42

248-1336

GROMMET,1/4" ID x 3/4" Groove Dia, Str Cut

Rubber

1шт.

43

760-14316

SELF-TAP SCREW,Pan Hd, M4.2 x 16

2шт.
