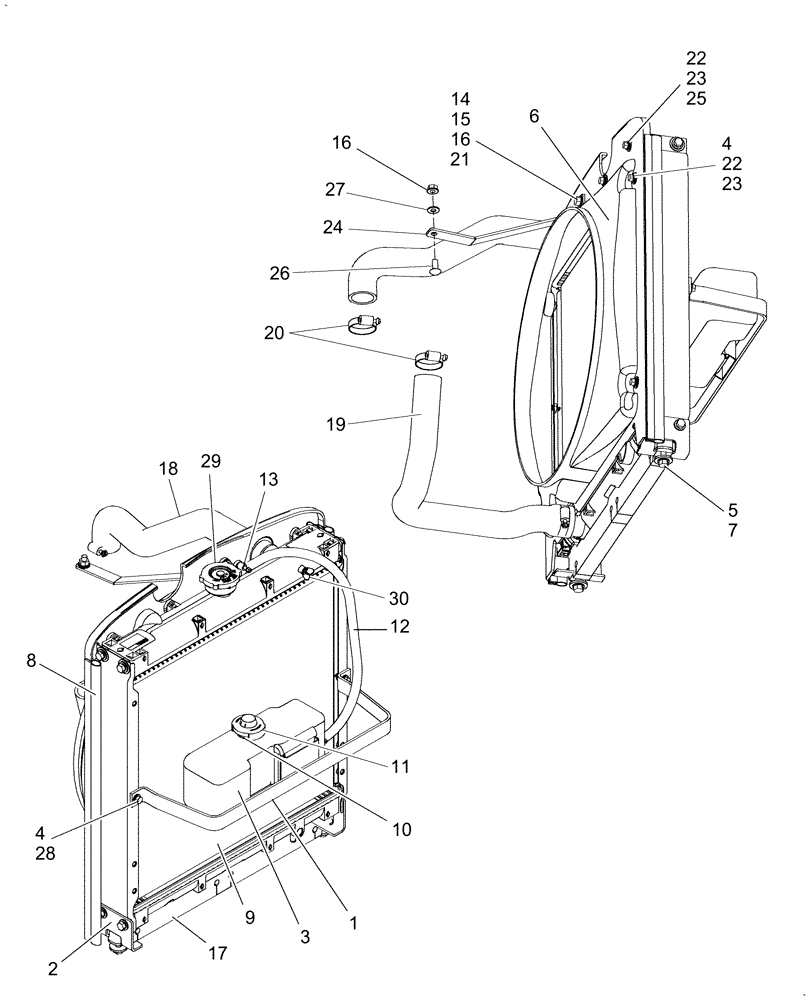

Запчасти Case IH DX35 (02.01.01) - COOLING SYSTEM, RADIATOR W/ALUMINUM CORE (02) - ENGINE EQUIPMENT

1

87385836

BRACKET

OverFlow Bottle

1шт.

2

87324723

BRACKET, SUPPORTING

1шт.

3

5176648

TANK

Reservoir

1шт.

4

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

6шт.

5

86549853

WASHER,8.4mm ID x 28mm OD x 3mm Thk

2шт.

6

87390258

SHROUD

1шт.

7

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.

8

87324971

EDGE

Shroud Edge

2шт.

9

87305450

RADIATOR

Aluminium Core Includes: Ref. 29 & 30

1шт.

10

4153008

SEAL

SEALRING Cap Seal

1шт.

11

4274034

CAP

Recovery Bottle

1шт.

12

87324970

BOTTLE

Hose, Recovery

1шт.

13

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

2шт.

14

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

15

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

1шт.

16

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

17

87308701

SEAL

1шт.

18

87630106

HOSE

1шт.

19

87330893

RADIATOR HOSE,33.00 mm ID, 41.00 mm ID, 265.90 mm

Lower

1шт.

20

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

4шт.

21

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

1шт.

22

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

23

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

8шт.

24

87388431

BRACKET

1шт.

25

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

4шт.

26

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

1шт.

27

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

28

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

29

87522876

RADIATOR CAP

1шт.

30

87032485

DRAINCOCK/TAP SUPPLY

1шт.
