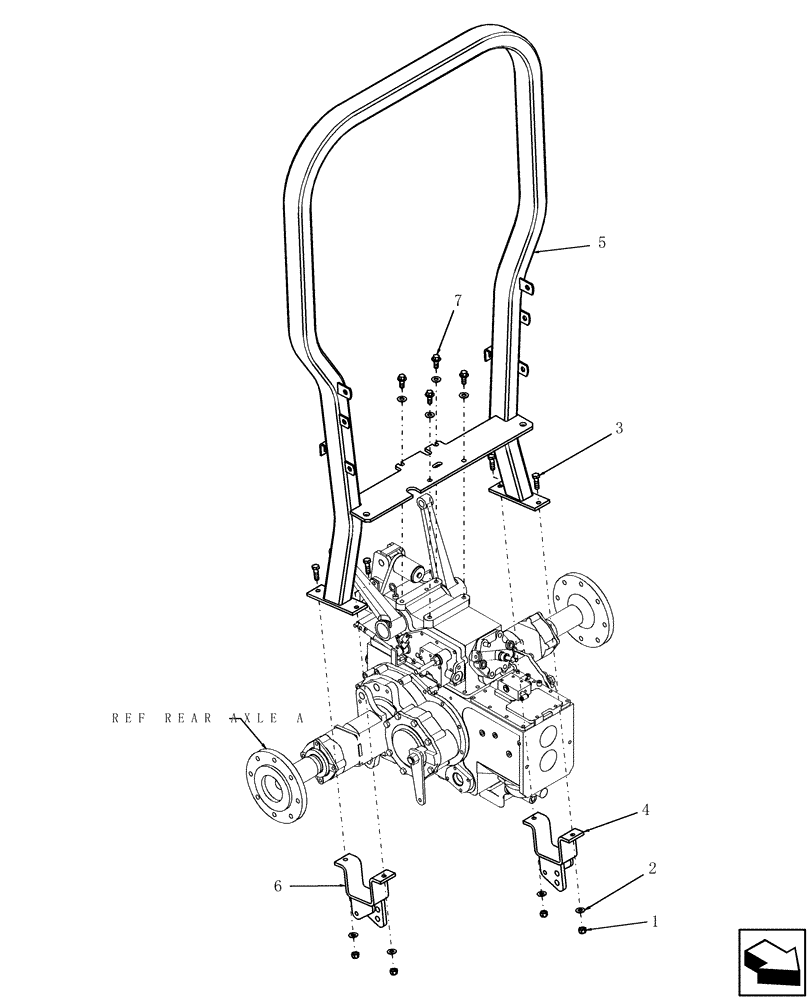

Запчасти Case IH DX35 (10.11) - FIXED ROPS (10) - OPERATORS PLATFORM/CAB

1

100038

NUT,M12 x 1.75, Cl 8

4шт.

2

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

3

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

Cap, Flg Hd, CL 8.8, M12 x 40

4шт.

4

86558130

BRACKET

Stabilizer, LH

1шт.

5

86558150

ROPS

Fixed Assy.

1шт.

6

86558905

BRACKET

Stabilizer, RH

1шт.

7

9670066

FLANGE BOLT,Hex, M12 x 30mm, Cl 8.8

Cap, Flg Hd, CL 8.8, M12 x 1.75 x 30

4шт.

8

710861036

Fixed ROPS Kit, Includes: Ref. 1 thru 7

1шт.

Not Illustrated

1шт.
