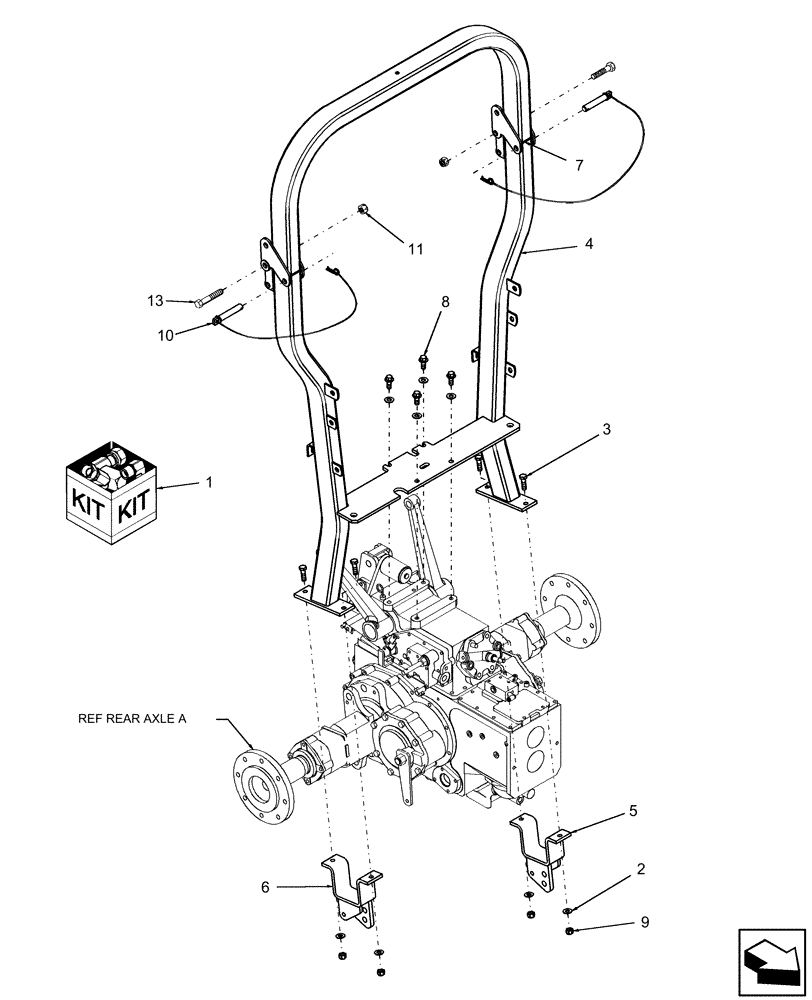

Запчасти Case IH DX35 (10.10) - FOLDABLE ROPS (10) - OPERATORS PLATFORM/CAB

1

710874066

DIA KIT, TRACTOR

KIT ROPS Foldable

1шт.

2

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

3

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

Cap, Flg Hd, CL 8.8, M12 x 40

4шт.

4

86404274

ROPS

Folding Assy. Includes: Ref. 7, 9 thru 13

1шт.

5

86558130

BRACKET

Stabilizer, LH

1шт.

6

86558905

BRACKET

Stabilizer, RH

1шт.

7

86573779

PROTECTION CAP

2 x 3

2шт.

8

9670066

FLANGE BOLT,Hex, M12 x 30mm, Cl 8.8

Cap, Flg Hd, CL 8.8, M12 x 1.75 x 30

4шт.

9

100038

NUT,M12 x 1.75, Cl 8

4шт.

10

87300974

PIN,15.9mm OD

Kickout

2шт.

11

86000441

NUT,M16 x 2.0, Cl 8

2шт.

13

9804275

BOLT,Hex, M16 x 100mm, Cl 8.8

2шт.
