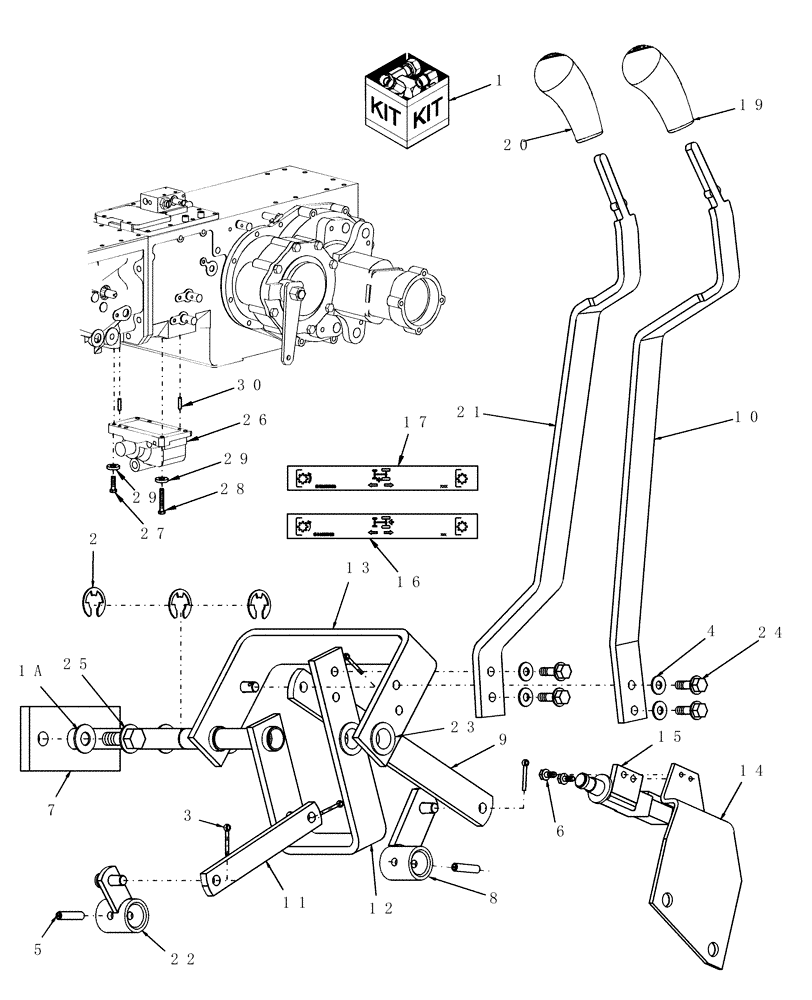

Запчасти Case IH DX35 (03.17) - MID-PTO KIT, 2000 RPM (03) - TRANSMISSION

1

719801046

KIT, Mid-PTO, Hydro, Includes: Ref. 1A thru 30

1шт.

Order thru Wholegoods

1шт.

1a

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

2

505291

LOCKING RING,#62, .480" Dia, E-Type

3шт.

3

280250

COTTER PIN,3/32" OD x 3/4" L

4шт.

4

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

5

9511051

LOCK PIN,M6 x 30, Slotted

2шт.

6

392696

SELF-TAP SCREW,HWH, M4 x 0.7 x 10mm

Self-Tapping, HWH, M4 x .7 x 10

2шт.

7

86400082

PIVOT

PTO

1шт.

8

86400088

BELLCRANK

Mid-PTO

1шт.

9

86400090

CONNECTING LINK

Mid-PTO

1шт.

10

86400092

LEVER

Mid-PTO

1шт.

11

86400093

LIFT LINK

Rear PTO

1шт.

12

86400094

LEVER

Pivot, Rear PTO

1шт.

13

86400095

LEVER

Pivot, Mid-PTO

1шт.

14

86400159

BRACKET

Mid-PTO

1шт.

15

86400228

SWITCH

1шт.

16

86400314

DECAL

Rear PTO

1шт.

17

86400315

DECAL

Mid-PTO

1шт.

18

86400904

WIRE CONNECTOR

Jumper, Not Illustrated

1шт.

19

86524780

KNOB

Mid-PTO

1шт.

20

86524781

KNOB

Rear PTO

1шт.

21

86558324

LEVER

Mid-PTO

1шт.

22

86558347

BELLCRANK

Rear PTO

1шт.

23

86558960

BUSHING,Hat, 15.8mm ID x 19.05mm OD x 25.4mm OD x 12.7mm W

4шт.

24

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

4шт.

25

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

2шт.

26

NSS

NOT SOLD SEPARAT

Drop Assy.

1шт.

27

SBA011510825

CAPTIVE WASHER SCREW,Hex, M8 x 25, G5

2шт.

28

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

4шт.

29

E630153S71

LOCK WASHER,M8

Spring

4шт.

30

SBA030500820

PIN

Dowel

2шт.
