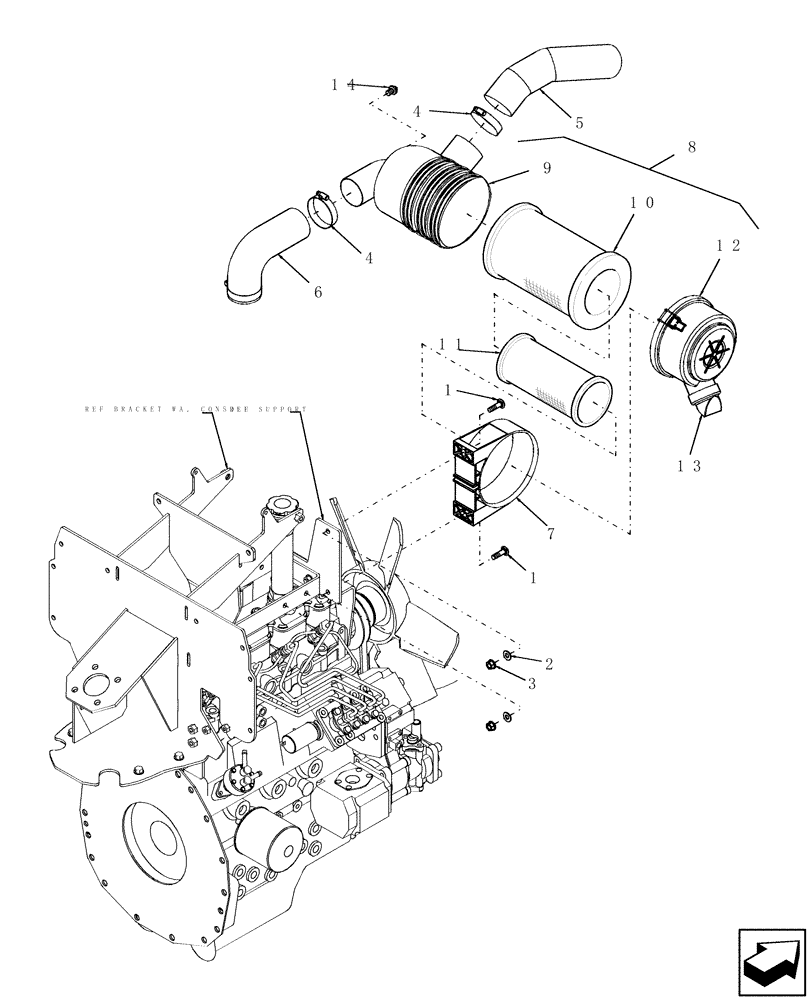

Запчасти Case IH DX35 (02.06) - AIR CLEANER (02) - ENGINE EQUIPMENT

1

43465

CARRIAGE BOLT,Short NK, M8 x 30, Cl8.8, Full Thd

2шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

3

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

4

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

3шт.

5

86400147

INTAKE AIR HOSE,50.80 mm ID x 171.00 mm, SAE 20 R 4

Air Intake

1шт.

6

86558247

INTAKE AIR HOSE,50.80 mm ID x 119.60, SAE J200-3-CA-710

1шт.

7

86549702

BRACKET

1шт.

8

86549691

AIR CLEANER

Includes: Ref. 9 thru 14

1шт.

9

NSS

NOT SOLD SEPARAT

Cleaner Air

1шт.

10

87300179

AIR FILTER

Primary

1шт.

11

87300181

AIR FILTER

Safety

1шт.

12

86549696

COVER

1шт.

13

82981184

DUST VALVE

Unloader

1шт.

14

86549695

PIPE PLUG,1/8"-27 NPT

1шт.
