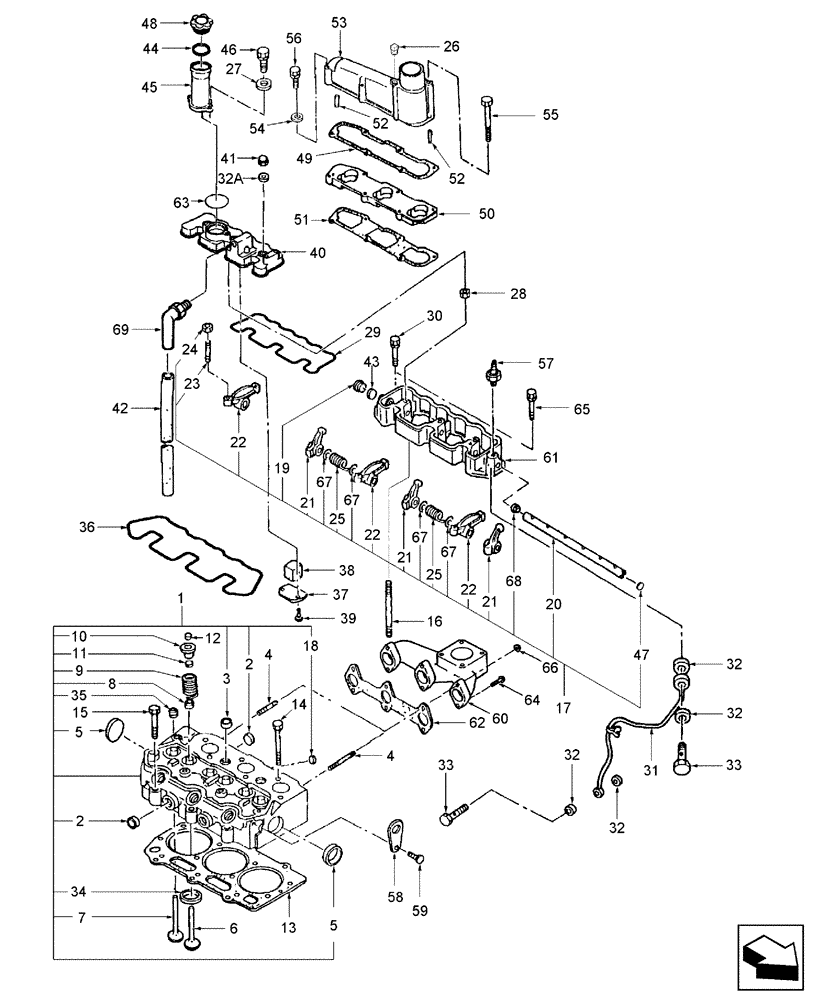

Запчасти Case IH DX35 (01.04) - CYLINDER HEAD (01) - ENGINE

1

SBA111017700

CYLINDER HEAD

Assy., Includes: Ref. 2 and 3, 5 thru 11, 18, 61

1шт.

Prechamber not serviced separately because of potential risk of cylinder head crack when press fitted at dealership.

1шт.

1

SBA111017750R

REMAN-CYLINDER HEAD

D35 PIN # HBA0005002 & ABOVE (12/00-8/01), DX35 CASE IH COMPACT TRACTOR (CLASS 3) - PIN # HBA0005004 & ABOVE, Assy (12/00-1/04), Both CASE IH COMPACT TRACTOR, Assy., Reman for New PN SBA111017700

1шт.

1

SBA111017750C

CORE-CYLINDER HEAD

Return Number

1шт.

2

SBA064210025

PLUG,25mm

4шт.

3

SBA064210020

SEALING ELEMENT

5шт.

4

SBA012110625

STUD,M6 x 25

2шт.

5

SBA064200030

PLUG

2шт.

6

SBA120166350

STD INLET VALVE

STD ENGINE INLET VALVE

3шт.

7

SBA120176360

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

3шт.

8

SBA120406070

SEAL

Intake

3шт.

9

SBA198216700

SPRING

6шт.

10

SBA120186080

RETAINER

6шт.

11

SBA120226070

RETAINER

Keeper, Valve

12шт.

12

SBA120216040

CAP

6шт.

13

SBA111147490

CYLINDER HEAD GASKET

T=1.3

1шт.

13

SBA111147500

CYLINDER HEAD GASKET

T=1.4

1шт.

14

SBA111136480

BOLT

11шт.

15

SBA111136490

BOLT

3шт.

16

SBA012109044

STUD

3шт.

17

SBA120036730

ROCKER ARM

Includes: Ref. 19 thru 26, 49 and 67

1шт.

18

SBA064210010

PLUG,10mm

2шт.

19

SBA198436150

PLUG

1шт.

20

SBA120316281

SHAFT

1шт.

21

SBA120356131

ROCKER ARM

Intake

3шт.

22

SBA120356141

ROCKER ARM

Exhaust

3шт.

23

SBA199486220

ADJUSTMENT SCREW

6шт.

24

SBA020109076

NUT

6шт.

25

SBA198217170

SPRING

2шт.

26

SBA064500010

PLUG

1шт.

27

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

2шт.

28

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

3шт.

29

SBA052109073

O-RING,3mm Thk x 269mm ID, 70 Duro

1шт.

30

SBA011310650

BOLT

1шт.

31

SBA140606691

TUBE

1шт.

32

SBA140996260

SEAL

4шт.

32a

SBA140996270

SEAL

4шт.

33

SBA198486780

BANJO BOLT

Eye

2шт.

34

NSS

NOT SOLD SEPARAT

Seat Valve, Intake

3шт.

35

SBA120406050

SEAL

Exhaust

3шт.

36

SBA052109065

O-RING

1шт.

37

SBA110666050

DEFLECTOR

1шт.

38

SBA110666060

FILTER SCREEN

1шт.

39

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

2шт.

40

SBA111027170

COVER

Head, Includes: Ref. 37 thru 39 and 69

1шт.

41

SBA024600010

NUT

Cap

3шт.

42

SBA068109064

TUBE

Vinyl

1шт.

43

SBA052100120

O-RING

P12

1шт.

44

SBA052100400

O-RING,3.5mm Thk x 39.7mm ID, 70 Duro

P40

1шт.

45

SBA110466050

RIGID TUBE

1шт.

46

SBA011510825

CAPTIVE WASHER SCREW,Hex, M8 x 25, G5

2шт.

47

SBA052109076

O-RING,2.4mm Thk x 10.8mm ID

1шт.

48

SBA198436010

FILLER CAP

1шт.

49

SBA135996860

MANIFOLD GASKET

1шт.

50

SBA135597090

SPACER

1шт.

51

SBA135996810

GASKET,1.2mm Thk

1шт.

52

SBA030300414

PIN

Spring

2шт.

53

SBA135597590

EXHAUST MANIFOLD

Intake

1шт.

54

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

2шт.

55

SBA010109119

BOLT

2шт.

56

SBA011310660

BOLT

4шт.

57

SBA185246060

SENDER UNIT

Engine, Oil Pressure

1шт.

58

SBA195816540

LIFTING EYE

2шт.

59

SBA011510816

BOLT

M8 x 16

2шт.

60

SBA135617410

EXHAUST MANIFOLD

1шт.

61

SBA120346321

BRACKET

1шт.

62

SBA135996590

MANIFOLD GASKET

Exhaust

1шт.

63

SBA052100420

O-RING

1шт.

64

SBA011310625

CAPTIVE WASHER SCREW,Hex, M6 x 25, Cl 8.8

6шт.

65

SBA011310625

CAPTIVE WASHER SCREW,Hex, M6 x 25, Cl 8.8

1шт.

66

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

2шт.

67

SBA199280300

SHIM,0.5mm Thk

4шт.

68

SBA199486320

SCREW

1шт.

69

SBA140986581

ELBOW

1шт.
