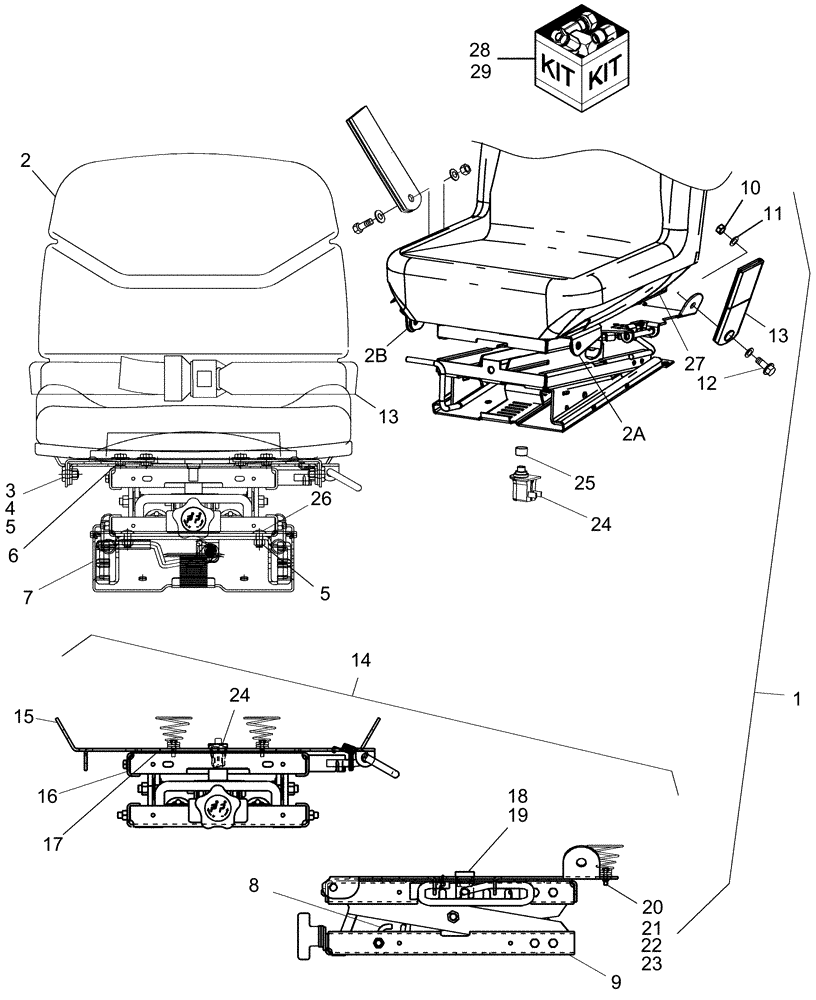

Запчасти Case IH DX35 (10.10) - SEAT ASSY (10) - OPERATORS PLATFORM/CAB

1

86400439

DRIVER SEAT

1шт.

1

86402507

DRIVER SEAT

Includes: Ref. 2 thru 16

1шт.

(4) plugs used in seat are 86549823

1шт.

2

86402445

DRIVER SEAT

One Piece Cushion

1шт.

2

86400544

DRIVER SEAT

Two Piece Cushion, Current Cushion

1шт.

2a

87365968

BRACKET

Tilt, LH

1шт.

2b

87365969

BRACKET

Tilt, RH

1шт.

3

86560540

BOLT

Shoulder, 3/8"-16 x 3/4"

1шт.

4

86560539

SPACER

Plastic

2шт.

5

232-4146

NUT,3/8"-16, GC

6шт.

6

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

7

86400545

SLIDE

1шт.

8

86560538

SPRING

Extension

2шт.

9

86400122

BRACKET

Upstop

2шт.

10

280980

NUT,7/16"-14, GC

2шт.

11

87363

WASHER,0.47" ID x 0.92" OD x 0.07" Thk

2шт.

12

280410

BOLT,Hex, 7/16" - 14 x 1", Gr 8, Full Thd

2шт.

13

86530933

SAFETY BELT ,48.00 mm W

1шт.

14

86401228

SUSPENSION

Includes: Ref. 14A

1шт.

15

86530934

SWIVEL CONNECTION

Latch

1шт.

16

86530935

SUSPENSION

1шт.

(4) Block, Shaft

1шт.

(8) Screw, Tapping H.H. 5/16 - 4 x .63

1шт.

(2) Spring, Ext.

1шт.

(1) Pin, Roller

1шт.

(3) Pushnut, .50

1шт.

(1) Roller, Drive

1шт.

(2) Bolt, Carriage, 5/16 - 18 x .75

1шт.

(2) Nut, Centerlock, 5/16 - 18

1шт.

(4) Bumper

1шт.

(4) Roller

1шт.

(2) Thrust Race, .375 ID x .612 O.D.

1шт.

(1) Thrust Bearing Needle

1шт.

(1) Roll Pin, .156 x .62

1шт.

(1) Nut, Weight Adjust, 3/8 - 16

1шт.

(1) Spacer, Weight Adjust

1шт.

(1) Bar, Weight Adjust

1шт.

(1) Shaft, Spring

1шт.

(1) Pin, Pivot

1шт.

(2) Bearing, Tube

1шт.

(2) Spring Bushing

1шт.

(1) Housing Weldment, Upper

1шт.

(1) Scissors Assy.

1шт.

(1) Housing Weldment, Lower

1шт.

(1) Drive Arm Weldment

1шт.

(1) Decal, Serial No.

1шт.

(2) Bracket, Upstop

1шт.

87301458

KNOB

(1) Knob & Shaft Assy.

1шт.

17

NSS

NOT SOLD SEPARAT

Button, Slider

8шт.

18

86560560

BOLT

1/2"-13

1шт.

19

249100

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

(1.5mm Thk)

1шт.

20

PL

PROCURE LOCALLY

Washer, .78ID x 1.25OD x .062

2шт.

21

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

22

86401230

SPRING

Conical

2шт.

23

213137

WASHER,6.76mm ID x 25.4mm OD x 3.17mm Thk

Flat

4шт.

24

86400227

SWITCH,Two Connectors, 90° Terminals

ASSY, Plunger SPST

1шт.

25

86400465

BOOT

1шт.

26

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

4шт.

27

86402508

LEAF SPRING ASSY

Includes: Bracket, Pop Rivet & Leaf Spring (Not Illustrated)

1шт.

28

86530936

SUSPENSION

Rebuild Kit

1шт.

(4) Block, Shaft

1шт.

(2) Spring, Ext.

1шт.

(3) Pushnut, .50

1шт.

(1) Roller, Drive

1шт.

(4) Bumper

1шт.

(4) Roller

1шт.

(1) Thrust Bearing Needle

1шт.

(2) Thrust Race .375

1шт.

(1) Roll Pin .156 x .62

1шт.

(1) Nut, Weight Adjust 3/8 - 16

1шт.

(1) Spacer, Weight Adjust

1шт.

(1) Bar, Weight Adjust

1шт.

87301458

KNOB

(1) Knob & Shaft Assy.

1шт.

29

718852026

ARMREST

KIT, Includes:

1шт.

Order thru Wholegoods

1шт.

(1) Armrest Assy., L.H.

1шт.

(1) Armrest Assy., R.H.

1шт.

(1) Armrest Bracket Assy.

1шт.

(1) Plate Cover, L.H.

1шт.

(1) Plate Cover, R.H.

1шт.

(2) Stop Armrest

1шт.

(4) Bolt, 3/8-16x.75

1шт.

(2) Screw, #10

1шт.

(4) Lockwasher, .375

1шт.

(2) Washer Wave

1шт.
