Запчасти Case IH DX35 (07.04) - SINGLE SPOOL REAR, REMOTE CONTROL VALVE KIT, #1 - 718348066 (07) - HYDRAULIC SYSTEM

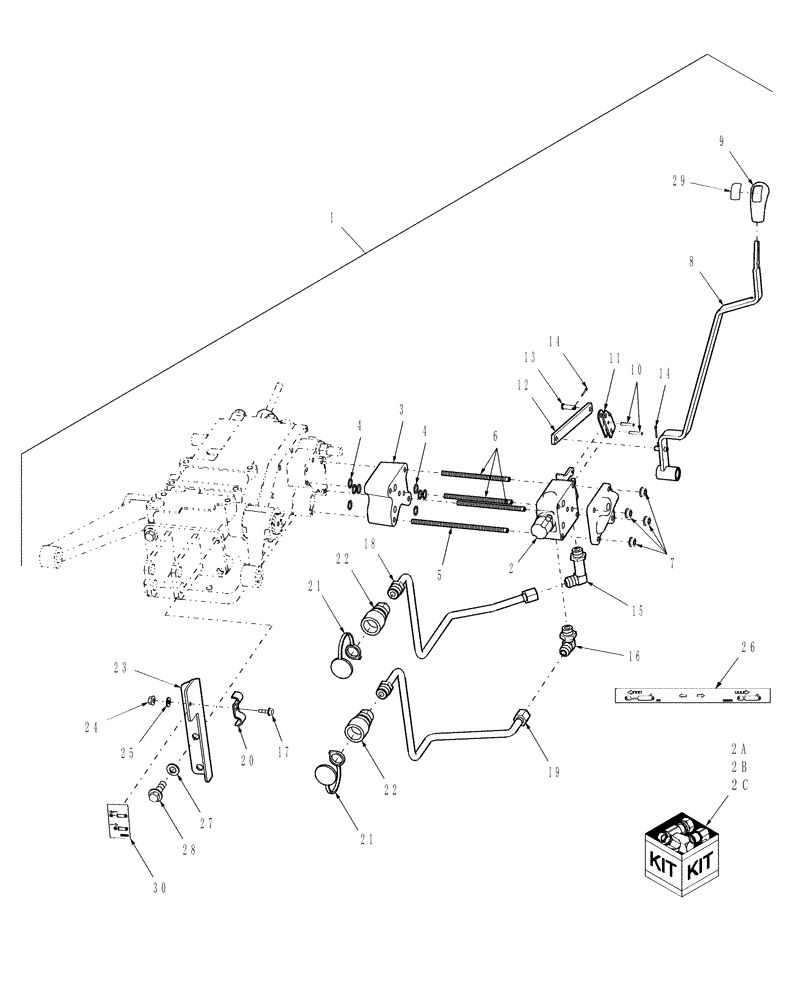

Схема запчастей Case IH DX35 - (07.04) - SINGLE SPOOL REAR, REMOTE CONTROL VALVE KIT, #1 - 718348066 (07) - HYDRAULIC SYSTEM
22
9
27
15
5
18
14
21
19
21
16
10
28
3
11
26
22
24
4
7
20
30
2a
12
2b
23
4
8
1
25
2
6
13
14
2c
29
17

Артикул

Название

Примечание

Количество

1

718348066

REMOTE VALVE KIT

Kit, Single Spool Rear Remote Control Valve #1, Includes: Ref. 2 thru 28

1шт.

Order thru Wholegoods

1шт.

2

86403121

REMOTE CONTROL VALVE

Includes: Ref. 2A - 2C

1шт.

2a

86532885

KIT

Handle Bracket

1шт.

2b

86532884

KIT

Spring Center

1шт.

2c

86532883

SEAL KIT

1шт.

3

86402858

BLOCK

Remote Spacer

1шт.

4

86535818

SEAL KIT

2шт.

5

86532719

STUD,M8 x 195, Cl 8.8

1шт.

6

86532718

STUD,M8 x 135, Cl 8.8

3шт.

7

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

8

86519838

LEVER

Remote 1, Includes: 86524680 Bushing

1шт.

9

86403810

KNOB

Remote 1, Wheat

1шт.

10

130045

PIN,5mm OD x 26mm L, Slotted

2шт.

11

86524927

ROCKER ARM

Remote

1шт.

12

86522942

CONNECTING LINK

Remote 1

1шт.

13

200731

CLEVIS PIN,7.9mm OD x 26.72mm L

1шт.

14

280250

COTTER PIN,3/32" OD x 3/4" L

2шт.

15

86513069

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, LG

1шт.

16

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

1шт.

17

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

1шт.

18

86522962

TUBE,12.70 mm OD x 253, 356 mm L

Rm 1, Port B

1шт.

19

86522963

TUBE,12.70 mm OD x 401, 234 mm L

Rm 1, Port A

1шт.

20

86524859

CLAMP

Tube

1шт.

21

5186723

DUST CAP,24mm, Black

Dust Black

2шт.

22

256231

COUPLING, QUICK, FEM

Includes: 86528546 O-Ring

2шт.

23

86532862

BRACKET

Remote 1

1шт.

24

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

25

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

26

86532910

DECAL

Remote Valve

1шт.

27

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

4шт.

28

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

2шт.

29

86404550

DECAL

Remote 1

1шт.

30

87300013

DECAL

Decal, Hydraulic Coupler

1шт.

Выбрано товаров: 34
