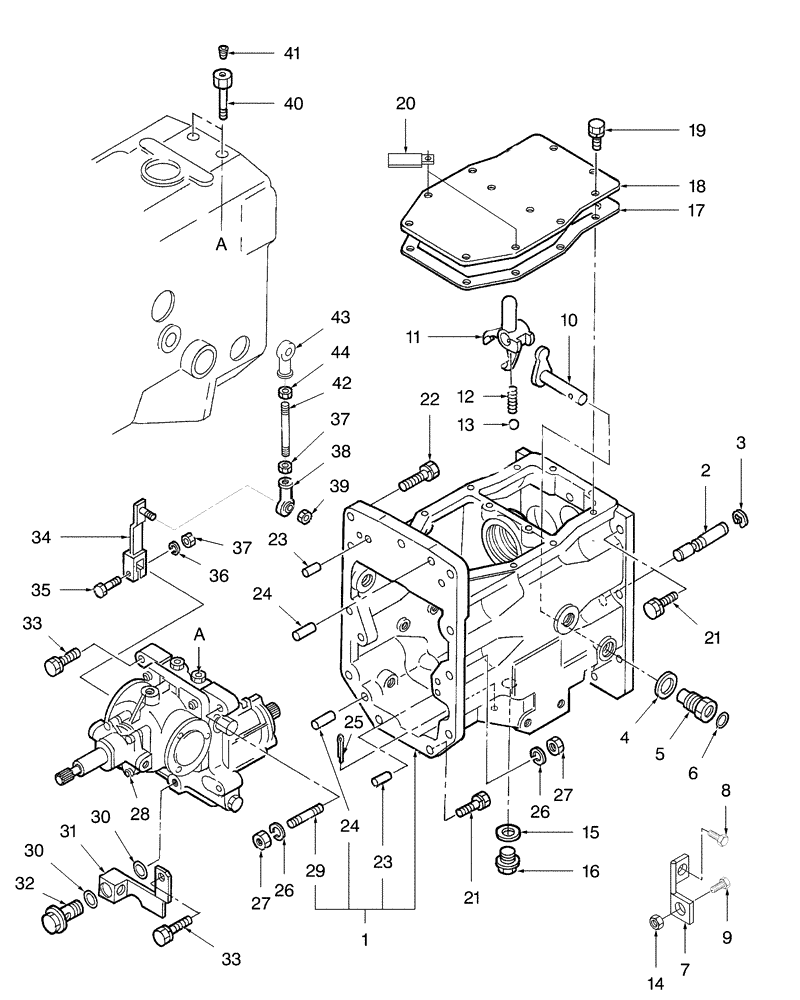

Запчасти Case IH DX35 (03.05) - FRONT TRANSMISSION CASE & SHIFTER, W/HST (03) - TRANSMISSION

1

SBA322017572

HOUSING

Includes: Ref. 23, 24, & 29

1шт.

2

SBA324312210

ROD

Shifter, 4 WD

1шт.

3

SBA036800012

SNAP RING

1шт.

4

SBA025100020

SEALING WASHER,16.4mm ID x 27mm OD x 2mm Thk

1шт.

5

SBA324510400

GUIDE

Shift

1шт.

6

SBA052109078

O-RING,2.4mm Thk x 9.8mm ID

P15

1шт.

7

86400050

BRACKET

Clamp

1шт.

8

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

1шт.

9

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

1шт.

10

SBA324200890

ARM

Shift

1шт.

11

SBA324411680

SHIFTER FORK

FWD

1шт.

12

SBA398210280

SPRING

1шт.

13

V34014

BALL

Steel, M8, 11/32"

1шт.

14

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

15

SBA025100016

WASHER,16.4mm ID x 27mm OD x 2mm Thk

Seal, #16

1шт.

16

SBA064600016

PLUG

M16

1шт.

17

SBA322990971

GASKET

1шт.

18

SBA322213150

COVER

Case

1шт.

19

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

12шт.

20

SBA399112980

CLAMP

3шт.

21

SBA011511030

CAPTIVE WASHER SCREW,Hex, M10 x 30, G5

13шт.

22

SBA011511035

BOLT,M10 x 35

4шт.

23

SBA030500820

PIN

Dowel, 8 x 20

2шт.

24

SBA030501025

BALL STUD,M10 x 25 L

BALL PIN

2шт.

25

SBA030104020

PIN

Split, 4 x 20

1шт.

26

892-11010

LOCK WASHER,M10

4шт.

27

SBA021010010

NUT,M10 x 1.25

4шт.

28

SBA322800220

TRANSMISSION, HYDROS

Pump

1шт.

28

SBA322800221R

REMAN-TRANSMISSION

Remanufactured Hydrostatic Transmission

1шт.

28

SBA322800221C

CORE-TRANSMISSION

Return Number, Hydrostatic Transmission

1шт.

28

SBA322800220C

CORE-TRANSMISSION

Return Number, Hydrostatic Transmission

1шт.

29

SBA012111050

STUD

Bolt, M10

2шт.

30

SBA052100200

O-RING,2.4mm Thk x 19.8mm ID, 70 Duro

P20

2шт.

31

SBA340671400

ADAPTER

1шт.

32

SBA398480240

BANJO BOLT,3/8"

PF

1шт.

33

SBA011511050

BOLT,M10 x 50

2шт.

34

SBA340103583

LEVER

1шт.

34

SBA340107280

CONTROL LEVER

1шт.

USED ON & ABOVE DRIVELINE 2M69139

1шт.

35

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

1шт.

36

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

2шт.

37

SBA022300008

NUT,M8

1шт.

38

SBA334800360

ROD

End

1шт.

39

SBA022600008

NUT,U, M8

1шт.

40

SBA340671411

ADAPTER

2шт.

41

SBA064500010

PLUG

PT 1/8"

1шт.

42

SBA358511130

ROD

1шт.

43

SBA334800420

TRACK ROD END ASSY

1шт.

44

SBA020109125

NUT,M8, LH Thd

1шт.
