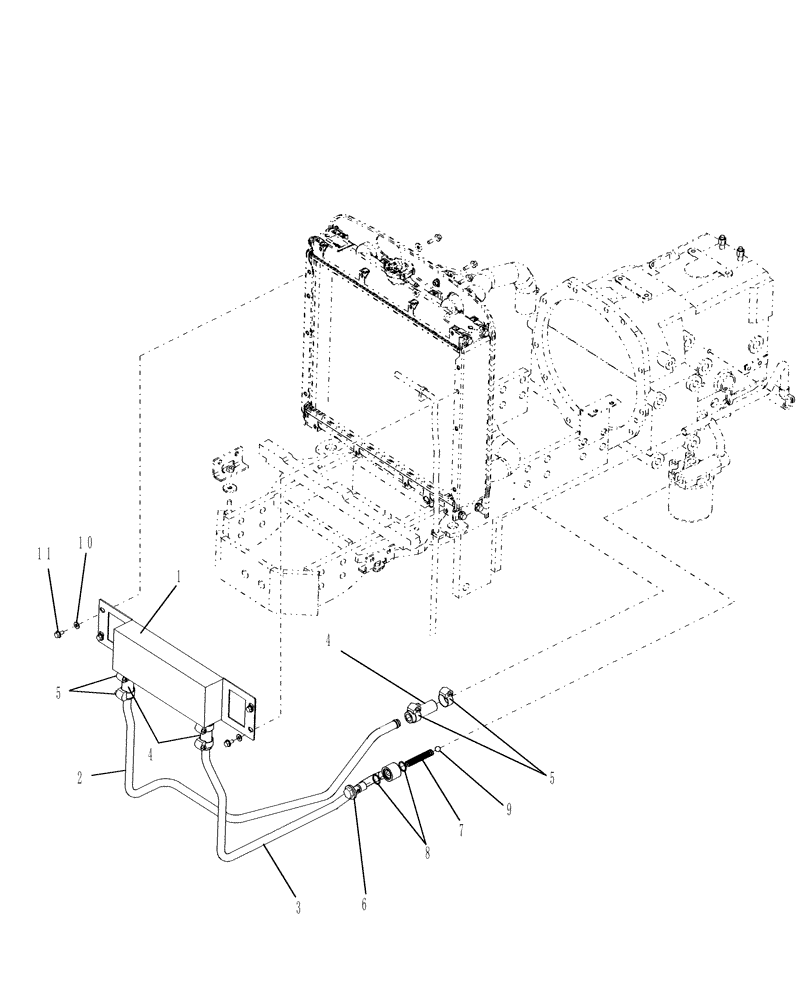

Запчасти Case IH DX35 (02.03) - OIL COOLER, HST (02) - ENGINE EQUIPMENT

1

87306553

OIL COOLER

1шт.

2

87337164

TUBE,15.90mm OD

HST, In

1шт.

3

87337165

TUBE

HST, Out

1шт.

4

87345854

FLEXIBLE HOSE,15.9mm ID x 69mm L

HST Cooler

1шт.

5

86505159

HOSE CLAMP

6шт.

6

SBA398480240

BANJO BOLT,3/8"

1шт.

7

86532703

SPRING

1шт.

8

SBA052100020

O-RING,2.4mm Thk x 19.8mm ID, 70 Duro

O-Ring

2шт.

9

210006

BALL

1шт.

10

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

11

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

4шт.
