Запчасти Case IH DX35 (02.02) - FUEL TANK & RELATED PARTS (02) - ENGINE EQUIPMENT

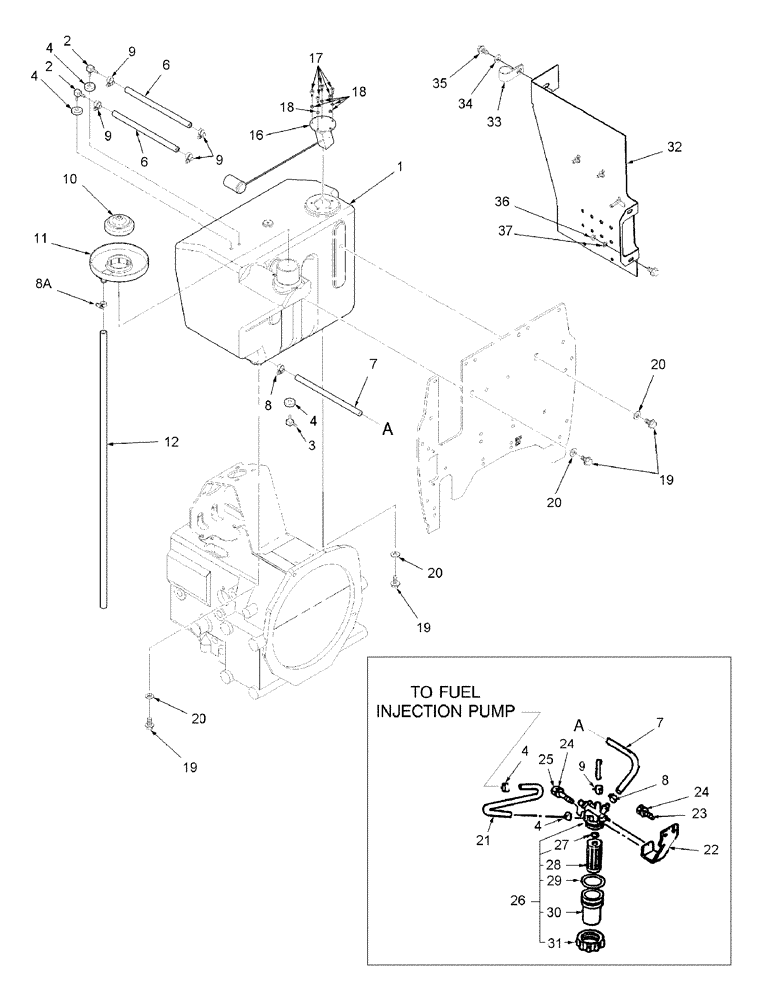

Схема запчастей Case IH DX35 - (02.02) - FUEL TANK & RELATED PARTS (02) - ENGINE EQUIPMENT
1
6
4
11
19
6
18
9
20
17
31
30
20
33
9
19
23
7
28
37
4
10
8
21
7
3
9
26
18
36
4
24
34
19
4
32
2
9
20
2
12
24
27
16
4
8
22
20
25
8a
35

Артикул

Название

Примечание

Количество

1

87335205

FUEL TANK

Includes: Ref. 2 - 4

1шт.

2

86532840

90 ELBOW,4mm, Hosebarb

2шт.

3

86532841

90 ELBOW,5/16" Hose Barb

1шт.

4

86532842

BUSHING,9.2mm ID x 14.22mm OD x 16mm L

3шт.

5

86400973

HOSE,4.76 mm ID x 2205.00 mm, SAE J30R7

Fuel Vent, Injector

1шт.

86400973 Measures 2205MM or 86.811" Long

1шт.

6

86400973

HOSE,4.76 mm ID x 2205.00 mm, SAE J30R7

Fuel Vent, Filter

1шт.

86400973 Measures 2205MM or 86.811" Long

1шт.

7

86400974

FUEL HOSE,7.94 mm ID x 1700.00 mm, SAE J30 R7

Drain, Cut to 225 mm or 8.858"

1шт.

86400974 Measures 1700MM or 66.929" Long

1шт.

8

82012717

HOSE CLAMP,11 x 17mm

3шт.

8a

244358

HOSE CLIP,0.44" - 0.78"

Hose

1шт.

Not Illustrated

1шт.

9

86530730

HOSE CLAMP,10.29mm - 12.32mm

4шт.

10

86532881

CAP

Fuel

1шт.

11

86526966

GUARD

Fuel

1шт.

12

86530812

HOSE

Overflow

1шт.

16

86525311

SENDER UNIT

Fuel, Use Gasket 48751 as Replacement Gasket

1шт.

17

80043982

SCREW,Phillips Drive, Pan HD, M5 x 12mm, Cl 4.8

5шт.

18

86509828

LOCK WASHER,M5

5шт.

19

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

21

86535799

FUEL HOSE,7.92 mm ID x 180.00 mm, SAE 30R7

Fuel Pump

1шт.

22

87751960

BRACKET

1шт.

23

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

24

492-11031

LOCK WASHER,5/16"

3шт.

25

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

1шт.

26

SBA360700060

FILTER ASSY

Includes: Ref. 27 - 31

1шт.

27

SBA052100100

O-RING

1шт.

28

87300040

FUEL FILTER

Element

1шт.

29

SBA052100400

O-RING,3.5mm Thk x 39.7mm ID, 70 Duro

1шт.

30

SBA360710011

CUP

1шт.

31

SBA360740010

NUT

1шт.

32

86535828

MOUNTING PLATE

Wire Harness Fuse Block

1шт.

33

9706732

CLAMP,19mm ID, 8.7mm Bolt Hole, P Type

1шт.

34

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

35

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

1шт.

36

86509265

NUT,M5, Cl 10

2шт.

37

86509828

LOCK WASHER,M5

2шт.

Выбрано товаров: 39
