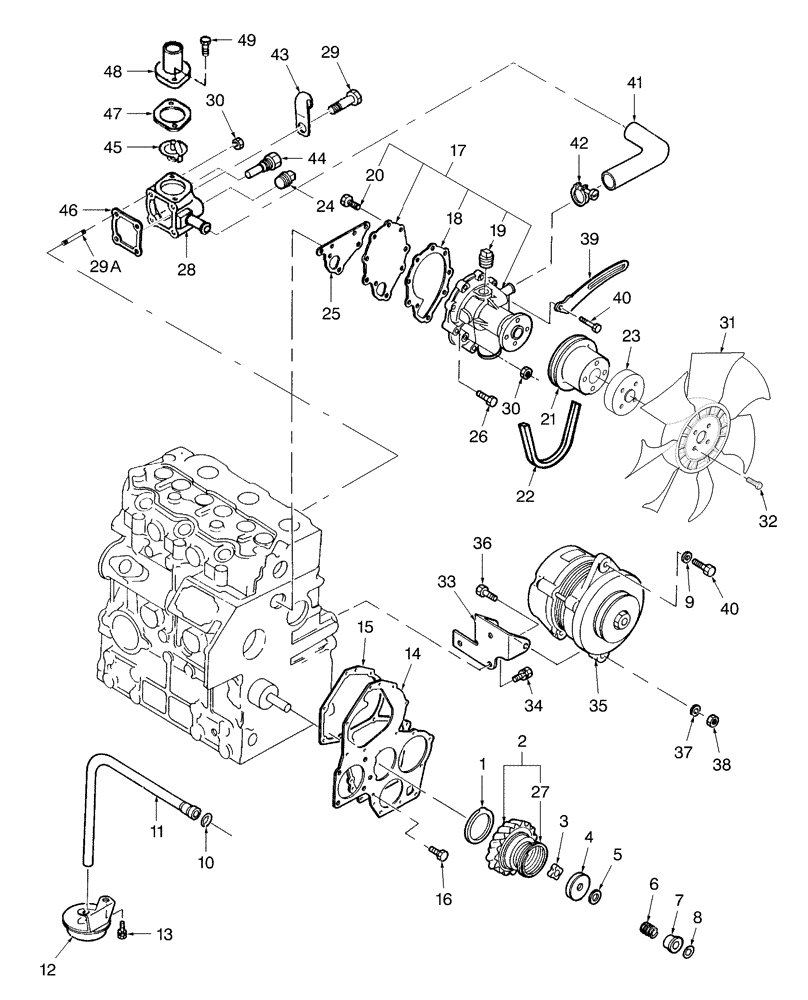

Запчасти Case IH DX35 (01.08) - OIL PUMP, WATER PUMP, ALTERNATOR (01) - ENGINE

1

SBA199266180

THRUST WASHER

1шт.

2

SBA165026120

IDLER GEAR

Gear Assy., Incl Ref. 27

1шт.

No Part Number For Complete Oil Pump Assy

1шт.

Component Of Oil Pump

1шт.

3

SBA140166140

ROTOR

1шт.

4

SBA140116140

COVER

1шт.

5

SBA199286340

SHIM KIT

1шт.

6

SBA198216720

SPRING

1шт.

7

SBA199236540

COLLAR

1шт.

8

SBA036800010

SNAP RING

1шт.

9

SBA026109017

WASHER

1шт.

Not Included in Long Block

1шт.

10

SBA052109076

O-RING,2.4mm Thk x 10.8mm ID

1шт.

11

SBA140986530

RIGID TUBE

DX31

1шт.

11

SBA140986970

PIPE

DX34, DX35

1шт.

12

SBA140406310

SCREEN

1шт.

13

SBA011310612

CAPTIVE WASHER SCREW,Hex, M6 x 12, Cl 8.8

2шт.

14

SBA165166510

PLATE

1шт.

15

SBA165996540

GASKET

1шт.

16

SBA011310612

CAPTIVE WASHER SCREW,Hex, M6 x 12, Cl 8.8

2шт.

17

SBA145017790

WATER PUMP

Includes: Ref. 17A - 20

1шт.

17

SBA145017790R

REMAN-WATER PUMP

DX35 (CLASS 2) - AUSTRALIA, DX34 Both (3/06-), DX31 PIN # Z6DD00103 & ABOVE (1/06-)

1шт.

17

SBA145017790C

CORE-WATER PUMP

Return Part Number

1шт.

17a

SBA198466910

PLUG

Rubber

1шт.

Plug Is Used To Close The Vent Hole

1шт.

Not Illustrated

1шт.

18

SBA145996680

GASKET

1шт.

19

SBA064500030

PLUG,3/8"

PT

1шт.

20

SBA015300614

SCREW

5шт.

21

SBA145336620

PULLEY

1шт.

Not Included in Long Block

1шт.

22

86517954

V-BELT,0.50" W x 37.54" L

1шт.

Not Included in Long Block

1шт.

23

SBA145386540

HOLDER

Fan

1шт.

Not Included in Long Block

1шт.

24

SBA064500030

PLUG,3/8"

PT

1шт.

25

SBA145996670

GASKET

1шт.

26

SBA011310635

CAPTIVE WASHER SCREW,Hex, M6 x 35, Cl 8.8

6шт.

27

SBA198216821

SPRING

1шт.

28

SBA145216730

CASE

Thermostat

1шт.

29

SBA011310655

BOLT,Hex, M6 x 55, Cl 8.8

2шт.

29a

SBA012110655

STUD

Bolt

2шт.

30

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.

31

SBA145306520

FAN

1шт.

Not Included in Long Block

1шт.

32

SBA011310645

CAPTIVE WASHER SCREW,Hex, M6 x 45, Cl 8.8

4шт.

Not Included in Long Block

1шт.

33

SBA185976510

BRACKET

Stay

1шт.

Not Included in Long Block

1шт.

34

SBA011510816

BOLT

M8 x 16

3шт.

Not Included in Long Block

1шт.

35

SBA185046320

ALTERNATOR

1шт.

Not Included in Long Block

1шт.

35

SBA185046320R

REMAN-ALTERNATOR

DX31, DX34

1шт.

35

SBA185046320C

CORE-ALTERNATOR

Return Part Number

1шт.

35

SBA185046380

ALTERNATOR

W/Cab, 55AMP

1шт.

Not Included in Long Block

1шт.

35

SBA185046380R

REMAN-ALTERNATOR

W/Cab, 55AMP

1шт.

35

SBA185046380C

CORE-ALTERNATOR

Return Number

1шт.

35

SBA185046320GV

ALTERNATOR

Value

1шт.

36

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

Not Included in Long Block

1шт.

37

892-11010

LOCK WASHER,M10

2шт.

Not Included in Long Block

1шт.

38

100016

NUT,M10 x 1.5, Cl 8

2шт.

Not Included in Long Block

1шт.

39

SBA185727000

PLATE

1шт.

Not Included in Long Block

1шт.

40

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

1шт.

Not Included in Long Block

1шт.

41

SBA145536051

HOSE

1шт.

42

SBA067100022

HOSE CLAMP

Hose

2шт.

43

SBA199116370

CLAMP

1шт.

44

SBA385720070

SENSOR

Temperature

1шт.

Not Included in Long Block

1шт.

45

SBA145206220

THERMOSTAT,71 Degrees C (160 Degrees F)

1.875" OD x 2.2" H

1шт.

46

SBA145996710

GASKET

1шт.

47

SBA145996051

GASKET

1шт.

48

SBA145226450

COVER

1шт.

49

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

2шт.
