Запчасти Case IH DX34 (07.07) - HYDRAULIC PIPING W/HST (07) - HYDRAULIC SYSTEM

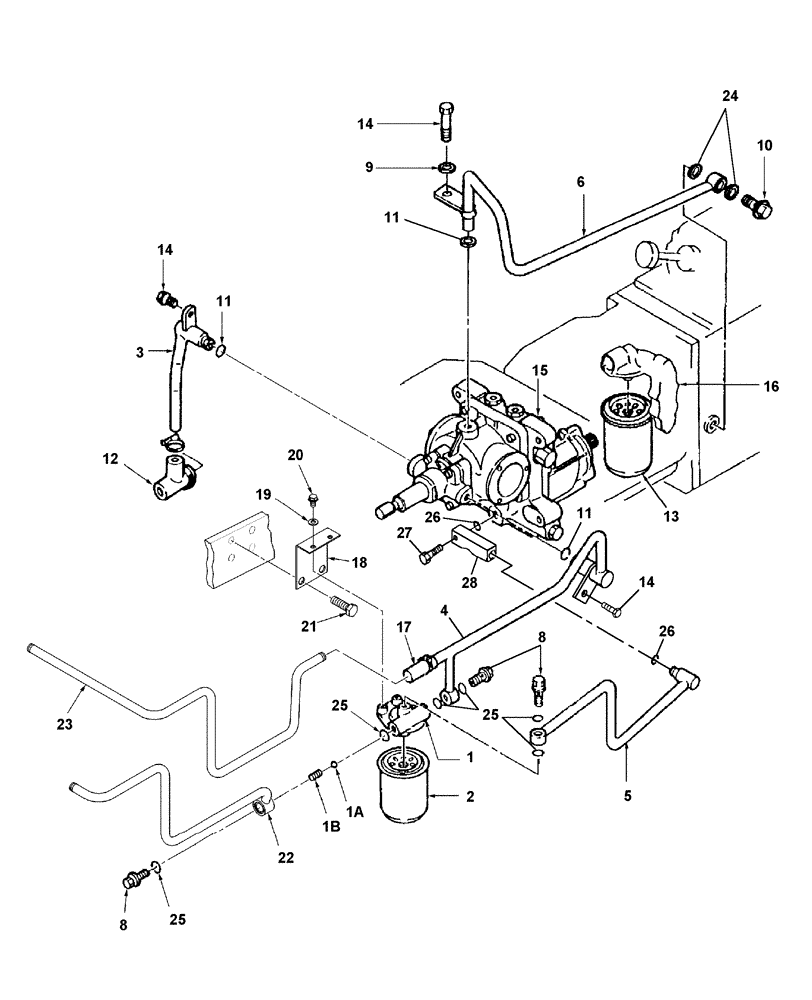

Схема запчастей Case IH DX34 - (07.07) - HYDRAULIC PIPING W/HST (07) - HYDRAULIC SYSTEM
3
9
2
24
26
4
25
13
5
16
1a
10
14
26
25
19
1b
22
23
17
21
11
15
12
25
27
28
18
6
14
11
25
8
8
1
14
20

Артикул

Название

Примечание

Количество

1

SBA340560440

FILTER HEAD

When ordering, also order Ref. 1A & 1B

1шт.

1a

SBA048100016

BALL

1шт.

1b

SBA398213390

SPRING

1шт.

2

SBA340501030

FILTER

HST, W/Internal Bypass

1шт.

3

SBA340708990

HYD TUBE

1шт.

4

SBA340550250

HYD TUBE

1шт.

5

SBA340550260

HYD TUBE

1шт.

6

SBA340708960

HYD TUBE

1шт.

7

SBA398750260

HOSE CLAMP

1шт.

8

SBA398480240

BANJO BOLT,3/8"

PF

3шт.

9

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

1шт.

10

SBA398480250

BANJO BOLT,1/2"

1шт.

11

SBA052100160

O-RING

P16

2шт.

12

SBA398115670

HOSE

Rubber

1шт.

13

87300044

HYDRAULIC OIL FILTER

Oil, Pump/Transmission

1шт.

14

SBA011510816

BOLT

M8 x 16

8шт.

15

SBA322800220

TRANSMISSION, HYDROS

Pump

1шт.

15

SBA322800220C

CORE-TRANSMISSION

Return Number, Hydrostatic Transmission

1шт.

15

SBA322800221R

REMAN-TRANSMISSION

Remanufactured Hydrostatic Transmission

1шт.

15

SBA322800221C

CORE-TRANSMISSION

Return Number, Hydrostatic Transmission

1шт.

16

SBA340750260

BODY

Oil Filter

1шт.

17

86530711

HYDRAULIC HOSE,15.88 mm ID x 70.00 mm, SAE 30R2 Type 1

Cooler, HST

1шт.

18

86402606

BRACKET

HST Filter

1шт.

19

492-11031

LOCK WASHER,5/16"

2шт.

20

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

21

86526913

BOLT,Hex, M14 x 45.5mm, Cl 10.9

2шт.

22

86524957

TUBE,469, 245.8 mm L

HST Cooler

1шт.

23

86522970

TUBE,15.90 mm ID x 17.00 mm OD

HST Cooler

1шт.

24

SBA052300250

O-RING

2шт.

25

SBA052100200

O-RING,2.4mm Thk x 19.8mm ID, 70 Duro

9шт.

26

SBA052100140

O-RING

1шт.

27

SBA011310640

CAPTIVE WASHER SCREW,Hex, M6 x 40, Cl 8.8

2шт.

28

SBA340673860

HYD CONNECTOR

1шт.

Выбрано товаров: 33
