Запчасти Case IH DX34 (07.05) - SINGLE SPOOL REAR, REMOTE CONTROL VALVE KIT, #2 - 718347026 (07) - HYDRAULIC SYSTEM

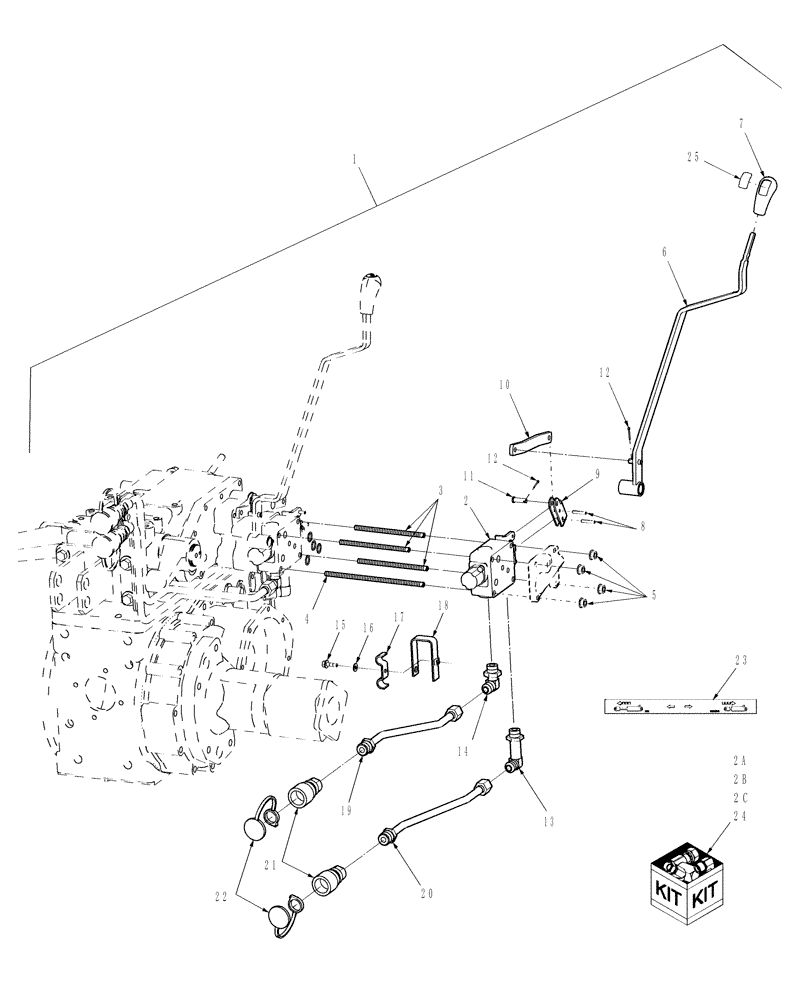

Схема запчастей Case IH DX34 - (07.05) - SINGLE SPOOL REAR, REMOTE CONTROL VALVE KIT, #2 - 718347026 (07) - HYDRAULIC SYSTEM
25
12
17
10
19
2b
5
7
12
8
15
9
2a
1
23
14
6
22
4
13
18
11
2
2c
16
24
3
20
21

Артикул

Название

Примечание

Количество

1

718347026

DIA KIT, ADD PROD

KIT, Single Spool Rear, Remote Control Valve #2, Includes: Ref. 2 - 23

1шт.

2

86403121

REMOTE CONTROL VALVE

Includes: Ref. 2A - 2C

1шт.

2a

86532885

KIT

Handle Bracket

1шт.

2b

86532884

KIT

Spring Center

1шт.

2c

86532883

SEAL KIT

1шт.

3

86530931

STUD,M8 x 175, Cl 8.8

3шт.

4

86532717

STUD,M8 x 235, Cl 8.8

1шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

6

86522853

LEVER

Remote 2, Includes: 86524680 Bushing

1шт.

7

86403811

KNOB

Remote 2, Wheat

1шт.

8

130045

PIN,5mm OD x 26mm L, Slotted

2шт.

9

86524927

ROCKER ARM

Remote

1шт.

10

86522940

CONNECTING LINK

Remote 2

1шт.

11

200731

CLEVIS PIN,7.9mm OD x 26.72mm L

1шт.

12

280250

COTTER PIN,3/32" OD x 3/4" L

2шт.

13

86513069

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, LG

1шт.

14

128830

ELBOW,90 DEGREE, 3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

15

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

1шт.

16

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

17

86524859

CLAMP

Tube

1шт.

18

86524864

BRACKET

Remote 2

1шт.

19

86522964

TUBE,12.70 mm OD x 251, 64 mm L

Rm2, Port B

1шт.

20

86522965

TUBE,12.70 mm OD x 200, 64 mm L

Rm2, Port A

1шт.

21

256231

COUPLING, QUICK, FEM

Includes: 86528546 O-Ring

2шт.

22

5186723

DUST CAP,24mm, Black

Dust Black

2шт.

23

86532910

DECAL

Remote Valve

1шт.

24

86535818

SEAL KIT

1шт.

25

86404551

DECAL

Remote 2

1шт.

Выбрано товаров: 28
