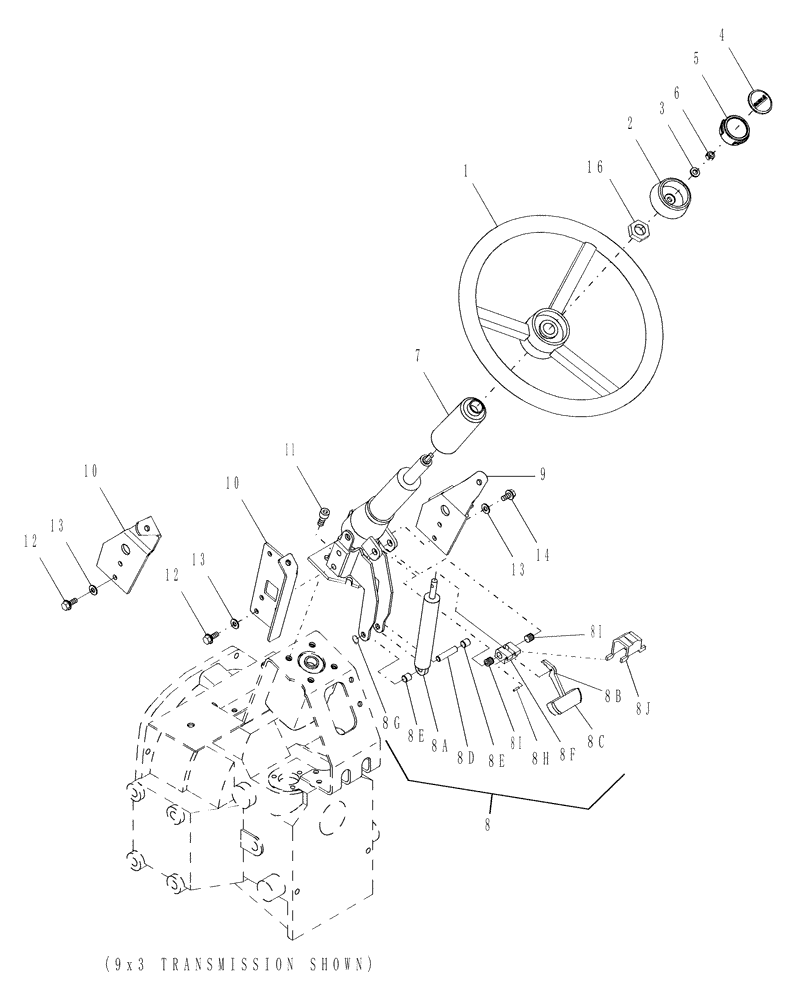

Запчасти Case IH DX34 (04.01) - STEERING COLUMN, TILT (04) - FRONT AXLE & STEERING

1

9821708

STEERING WHEEL

1шт.

2

87302160

KNOB

1шт.

3

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

1шт.

4

86401696

EMBLEM CASE/IH

1шт.

5

87302798

CAP,54mm OD, Black

Cap, Steering Wheel

1шт.

6

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

7

86522881

COVER

Telescope

1шт.

8

87329101

STEERING COLUMN

Includes Ref. 8A-8I

1шт.

8a

86522914

SHOCK ABSORBER

Gas

1шт.

8b

87333647

HANDLE

Handle

1шт.

8c

87333649

HANDLE

Knob

1шт.

8d

87333650

PIN,M10 x 45 L

1шт.

8e

87333651

SPACER

2шт.

8f

87335459

BLOCK

1шт.

8g

800-4310

CIRCLIP,M10

1шт.

8h

NS

NOT SERVICED

3x24mm Coiled Spring Pin

1шт.

8i

84582797

HEX SOC SCREW

Hex Soc Hd, M8 x 12, 8.8

2шт.

8j

86401203

COVER

Gas Strut

1шт.

9

86540910

SUPPORT

Rear Hood Assy., 9x3

1шт.

9

86543892

SUPPORT

Rear Hood Assy., HST

1шт.

10

86522948

SUPPORT

Rear Hood, L.H., HST

1шт.

10

87300220

BRACKET

Support, Rear Hood, L.H., 9x3

1шт.

11

86544072

HEX SOC SCREW,M10 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

11

120052

HEX SOC SCREW,M10 x 25mm, Cl 8.8

4шт.

12

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

13

80681

LOCK WASHER,5/16"

8шт.

14

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

16

86530985

JAM NUT,13/16"-20

1шт.
