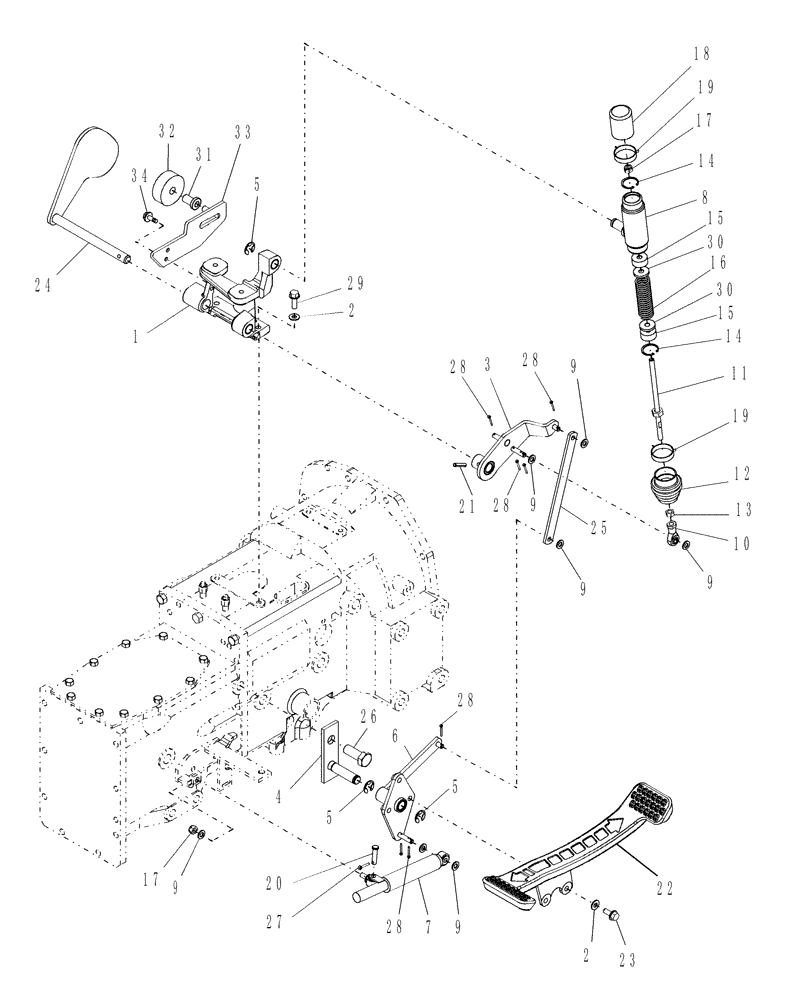

Запчасти Case IH DX34 (03.17) - HST CONTROLS & CRUISE CONTROL (03) - TRANSMISSION

1

87346458

PIVOT

Assy., HST, Includes: (4) 86524680, Bushing

1шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

3

86522979

CONNECTING LINK

HST Pedal

1шт.

4

86522842

BRACKET

Mount Assy., HST Pedal

1шт.

5

1826919

SNAP RING

3шт.

6

86522933

BRACKET

Mount, Treadle HST. Includes: Ref. 10

1шт.

7

SBA378910020

DAMPER

1шт.

8

86558148

HOUSING

Spring

1шт.

9

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

6шт.

10

SBA334800360

ROD

End

1шт.

11

86526930

ROD

Threaded, Spring Holder, Center, M8 x 1.25 x 185.5

1шт.

12

86535786

BELLOWS

HST

1шт.

13

9706690

NUT,M8 x 1.25, Cl 8

1шт.

14

301642

SNAP RING,M28, Int

2шт.

15

86526928

GUIDE

2шт.

16

87363428

COIL SPRING

HST Centering

1шт.

17

126712A1

TUBE,3" OD, 1962 mm Length

Prevailing Torque, CL 9, M8 x 1.25

2шт.

18

86532980

BOOT

HST

1шт.

19

86540898

CLAMP

Spring

2шт.

20

213399

CLEVIS PIN,5/16" x 1 1/4"

1шт.

21

86543705

SLOTTED PIN,M6 x 30mm OAL

1шт.

22

86532838

PEDAL

1шт.

23

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

24

86566187

PADDLE

Cruise, Includes: Cruise Plate

1шт.

25

86522978

CONNECTING LINK

HST Pedal

1шт.

26

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

1шт.

27

80756

COTTER PIN,1/8" x 3/4"

1шт.

28

280250

COTTER PIN,3/32" OD x 3/4" L

7шт.

29

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

30

87301094

WASHER,M10 x 27 x 2.4 Thk

2шт.

31

86532932

BUSHING

1шт.

32

87316542

ELECTROMAGNET

6" Wire Lead

1шт.

33

86566149

PLATE

Cruise Magnet

1шт.

34

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

2шт.
