Запчасти Case IH DX34 (03.07) - FRONT TRANSMISSION GEARS, W/HST (03) - TRANSMISSION

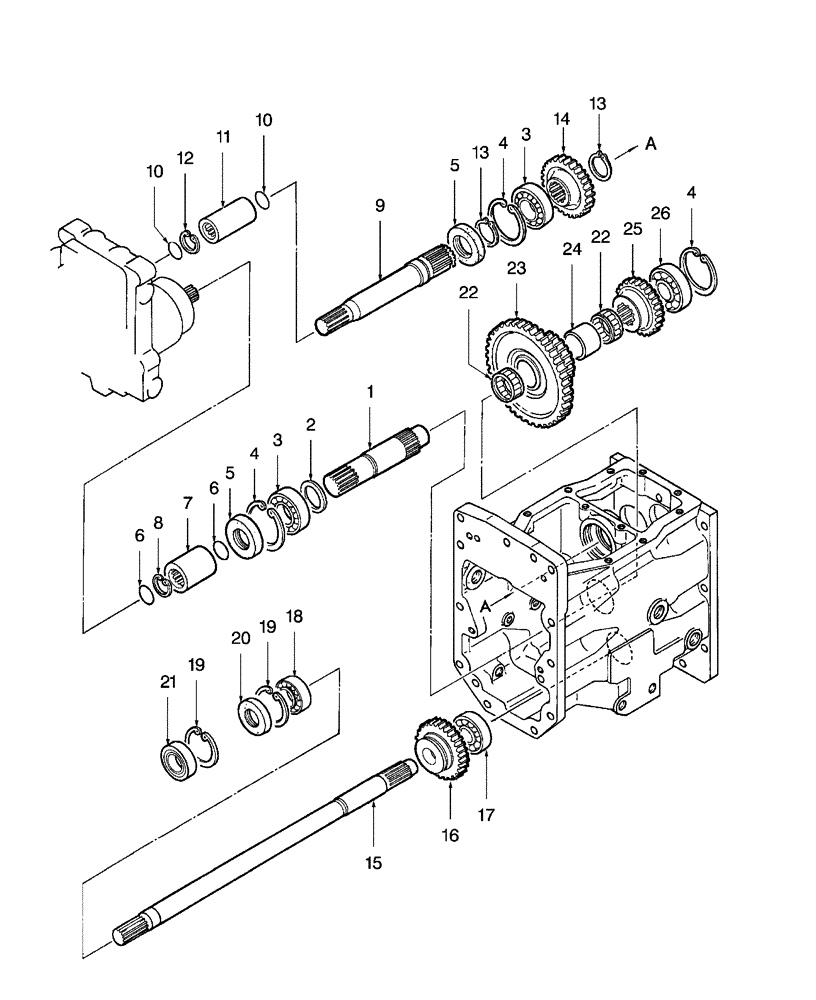

Схема запчастей Case IH DX34 - (03.07) - FRONT TRANSMISSION GEARS, W/HST (03) - TRANSMISSION
6
4
8
13
13
21
11
3
18
10
22
20
14
16
1
9
2
12
15
5
23
26
10
24
6
4
19
3
4
25
22
17
19
5
7

Артикул

Название

Примечание

Количество

1

SBA322513390

SHAFT

Drive

1шт.

Comes out of HST

1шт.

2

SBA399260650

THRUST WASHER

1шт.

3

210041

BALL BEARING,25mm ID x 52mm OD x 15mm W

2шт.

4

33915

SNAP RING,2.062", Int, #206

3шт.

5

SBA050209073

SEAL

Oil

2шт.

6

SBA052100210

O-RING

P21

2шт.

7

SBA322611120

COUPLING

1шт.

8

11058076

SNAP RING,M22, Int

Snap

1шт.

9

SBA322512300

SHAFT

Drive

1шт.

Comes out of HST

1шт.

10

SBA052100160

O-RING

P16

2шт.

11

SBA322611110

COUPLING

1шт.

12

SBA036500018

SNAP RING

1шт.

13

370002

CIRCLIP,M25, External

CS025

2шт.

14

SBA322326920

GEAR

Fixing, 26t

1шт.

15

SBA322512280

SHAFT

Drive, FWD, Drives The FWD

1шт.

16

SBA322342230

GEAR,22 T

Slide A w/9x3 w/HST

1шт.

17

SBA040106303

BALL BEARING

1шт.

18

SBA040106004

BALL BEARING

1шт.

19

300645

SNAP RING,M42, Int

2шт.

20

SBA050209074

SEAL

Oil

1шт.

21

86629499

BALL BEARING,20mm ID x 42mm OD x 12mm W

1шт.

22

SBA042200228

BEARING ASSY

2шт.

23

SBA322383200

GEAR

Counter, 50 x 18T

1шт.

24

SBA399233720

COLLAR

1шт.

25

SBA322326960

GEAR

Fixing A

1шт.

26

SBA040106304

BALL BEARING,20mm ID x 52mm OD x 15mm W

1шт.

Выбрано товаров: 28
