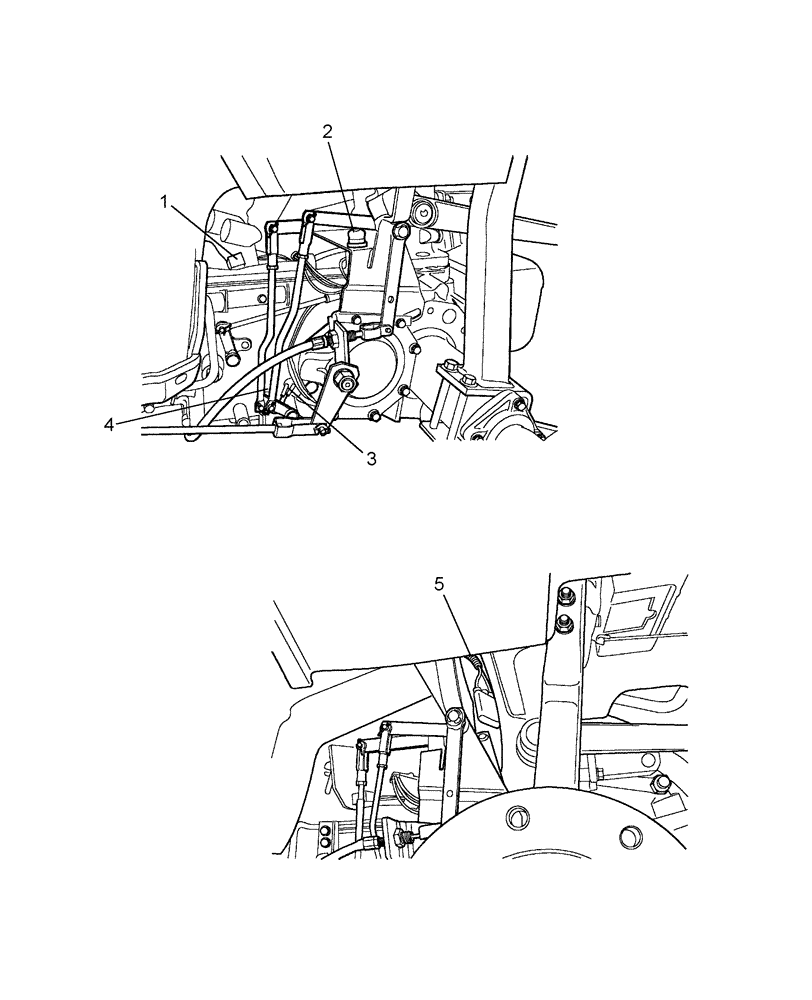

Запчасти Case IH DX33 (11B03) - RELAY & DIODE LOCATIONS, LEFT HAND SIDE - ON & ASN HBA0001480 (06) - ELECTRICAL SYSTEMS
5
3
4
2
1
№
Артикул
Название
Примечание
Количество
1
86509590
RELAY
Safe Operation
1шт.
2
86531140
SWITCH
Safety Switch, Mid-PTO
1шт.
3
SBA385200730
SWITCH
Safety Switch, Rear PTO, Normally Closed Switch
1шт.
4
SBA385201260
SWITCH
Safety Switch, Range, Normally Open Switch
1шт.
5
773464
DIODE
Safety System Diode
1шт.
6
86402702
PARK BRAKE SWITCH
Switch, Brake Safety Switch
1шт.
7
86404000
HARNESS
ICU Jumper. Connects Main Harness to Instrument Cluster
1шт.
Not Illustrated
1шт.
Выбрано товаров: 8
