Запчасти Case IH DX33 (11A03) - RELAY, DIODE & FUSE LOCATIONS - BSN HBA0001480 (06) - ELECTRICAL SYSTEMS

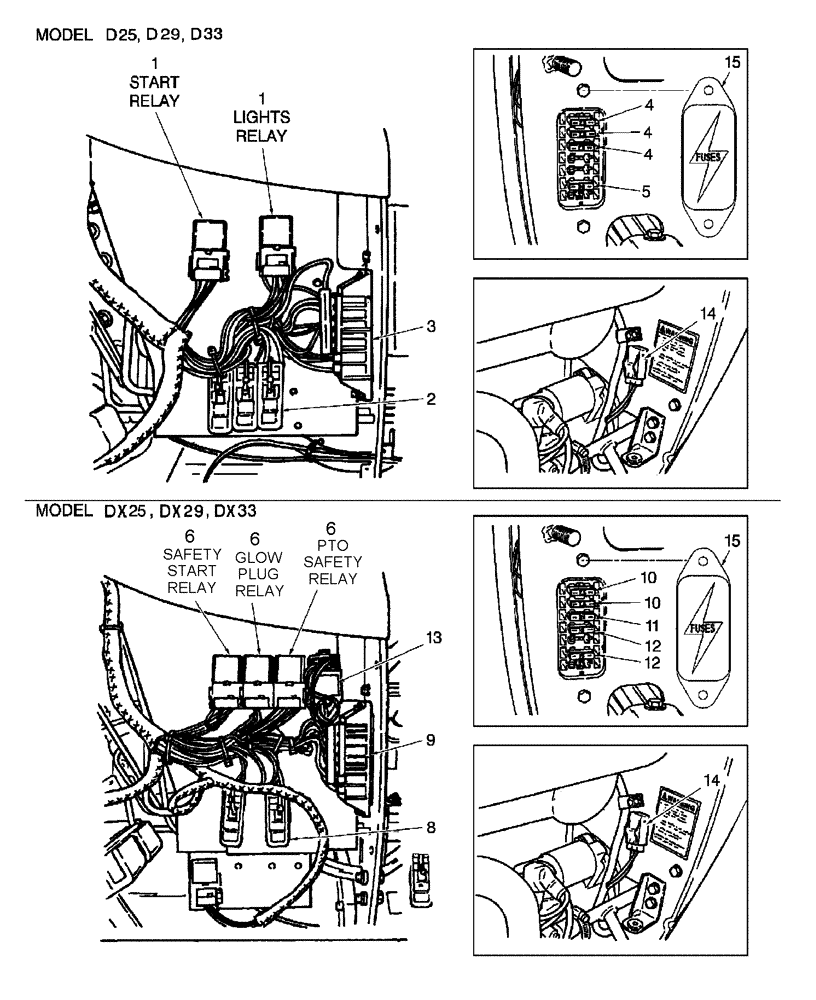

Схема запчастей Case IH DX33 - (11A03) - RELAY, DIODE & FUSE LOCATIONS - BSN HBA0001480 (06) - ELECTRICAL SYSTEMS
9
4
15
4
4
8
13
12
11
1
12
6
5
3
14
2
14
10
6
15
10
6
1

Артикул

Название

Примечание

Количество

1

86537972

RELAY

D25,D29,D33

2шт.

2

774735

DIODE,6A

D25,D29,D33

3шт.

3

NSS

NOT SOLD SEPARAT

Fuse Block, Part of Main Harness, D25,D29,D33

1шт.

4

89623776

FUSE

7.5 Amp, D25,D29,D33

3шт.

5

9804895

FUSE,20A, Micro, Yellow

D25,D29,D33 20 Amp

1шт.

6

86537972

RELAY

Safety Start, Glow Plug, PTO Safety DX25,DX29,DX33

3шт.

7

E9NN13350AA

RELAY,12V

Located Behind Instrument Panel, 2 Prong, DX25,DX29,DX33

1шт.

8

774735

DIODE,6A

Use (3) 9 x 3, (4) HST, DX25,DX29,DX33

3/4шт.

9

NSS

NOT SOLD SEPARAT

Fuse Block, Part of Main Harness, DX25,DX29,DX33

1шт.

10

89623776

FUSE

7.5 Amp, DX25,DX29,DX33

2шт.

11

9804895

FUSE,20A, Micro, Yellow

DX25,DX29,DX33 20 Amp

1шт.

12

9623774

FUSE,15 Amp

DX25,DX29,DX33 15 Amp

2шт.

13

SBA385870300

CONTROL UNIT

Controller Glow Plug, DX25,DX29,DX33

1шт.

14

92277

FUSE,30 Amp

DX25,DX29,DX33 30 Amp

1шт.

15

86540976

BASE

Cover, Fuse, DX25,DX29,DX33

1шт.

Выбрано товаров: 15
