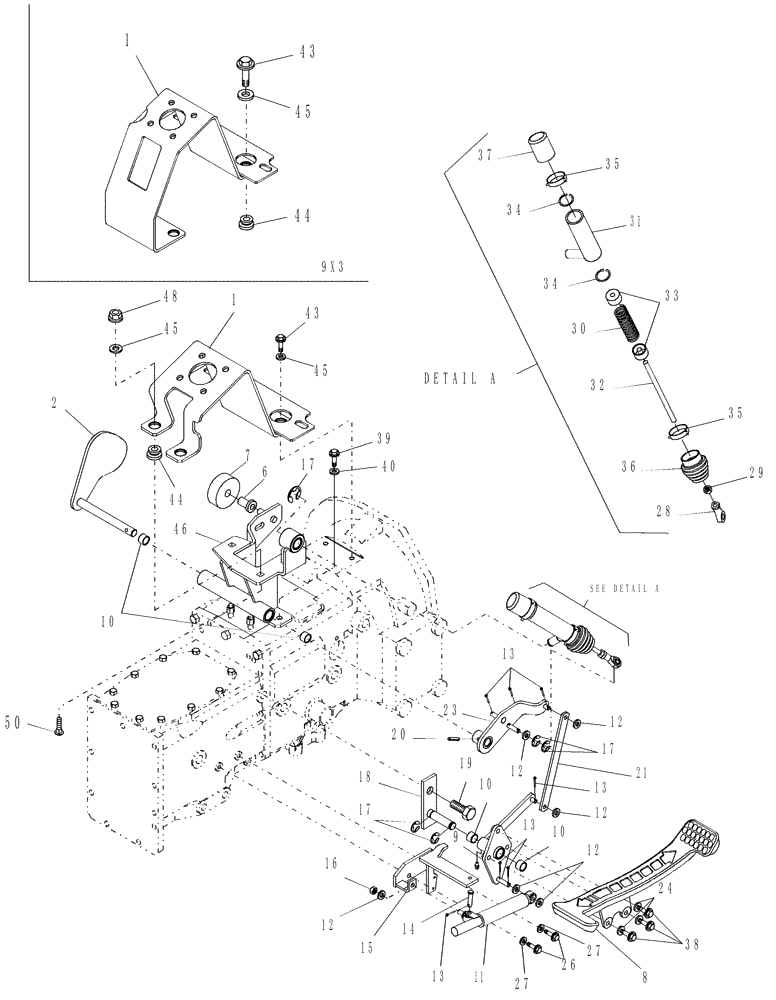

Запчасти Case IH DX33 (07J02) - HST CONTROLS & CRUISE CONTROL (03) - TRANSMISSION

1

86540982

BRACKET

Support, Column, 9x3

1шт.

1

86543910

BRACKET

Support, Column, HST

1шт.

2

86566187

PADDLE

Cruise, Includes: Cruise Plate

1шт.

6

86532932

BUSHING

1шт.

7

87316542

ELECTROMAGNET

Magnet, 6" Wire Lead

1шт.

8

86532838

PEDAL

1шт.

9

86522933

BRACKET

Mount, Treadle HST. Includes: Ref. 10

1шт.

10

86524680

BUSHING

2шт.

11

SBA378910020

DAMPER

1шт.

12

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

6шт.

13

280250

COTTER PIN,3/32" OD x 3/4" L

PIN, SPLIT (COTTER), 3/32" x 3/4"

8шт.

14

213399

CLEVIS PIN,5/16" x 1 1/4"

PIN, CLEVIS, 5/16" x 1 1/4"

1шт.

15

86535792

BRACKET

Spring

1шт.

16

832-46408

NUT,M8 x 1.25, Cl 8

NUT, LOCK, M8 x 1.25", Cl 8

2шт.

17

505291

LOCKING RING,#62, .480" Dia, E-Type

Ring, Retaining, #62, .480" Dia, E-Type

4шт.

18

86522842

BRACKET

Mount Assy., HST Pedal

1шт.

19

614-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

1шт.

20

9511051

LOCK PIN,M6 x 30, Slotted

1шт.

21

86522978

CONNECTING LINK

Link, HST Pedal

1шт.

22

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

23

86522979

CONNECTING LINK

Link Assy., HST Pedal

1шт.

24

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

WASHER, BELLEVILLE, M8

2шт.

26

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

Hex Flg Hd, CL 8.8, M8 x 1.25 x 16

2шт.

27

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

WASHER, BELLEVILLE, M8

2шт.

28

SBA334800360

ROD

End, Rod

1шт.

29

825-1408

NUT,M8, Cl 8

1шт.

30

86532933

SPRING

HST Centering

1шт.

31

86558148

HOUSING

Spring

1шт.

32

86526930

ROD

Threaded, Spring Holder, Center, M8 x 1.25 x 185.5

1шт.

33

86526928

GUIDE

2шт.

34

301642

SNAP RING,M28, Int

RING, SNAP, M28, Int

2шт.

35

86540898

CLAMP

Spring

2шт.

36

86535786

BELLOWS

HST

1шт.

37

86532980

BOOT

HST

1шт.

38

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

3шт.

39

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

40

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

WASHER, BELLEVILLE, M8

2шт.

43

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

Flg Hd, CL 8.8, M8 x 1.25 x 30, 9 x 3

4шт.

43

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

Flg Hd, CL 8.8, M8 x 1.25 x 30, HST

4шт.

44

86543779

DAMPER

Isolator, 9x3, HST

4шт.

45

86549853

WASHER,8.4mm ID x 28mm OD x 3mm Thk

6шт.

45

86549853

WASHER,8.4mm ID x 28mm OD x 3mm Thk

HST M8.4 x 28 x 3 Thk

4шт.

46

86565536

SUPPORT

Pivot Assy., HST, Includes: (4) 86524680, Bushing

1шт.

48

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

50

43465

CARRIAGE BOLT,Short NK, M8 x 30, Cl8.8, Full Thd

Bolt, Carriage, , HST Short NK, M8 x 30, Cl8.8, Full Thd

2шт.

51

86566149

PLATE

Cruise Magnet

1шт.

52

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

2шт.
