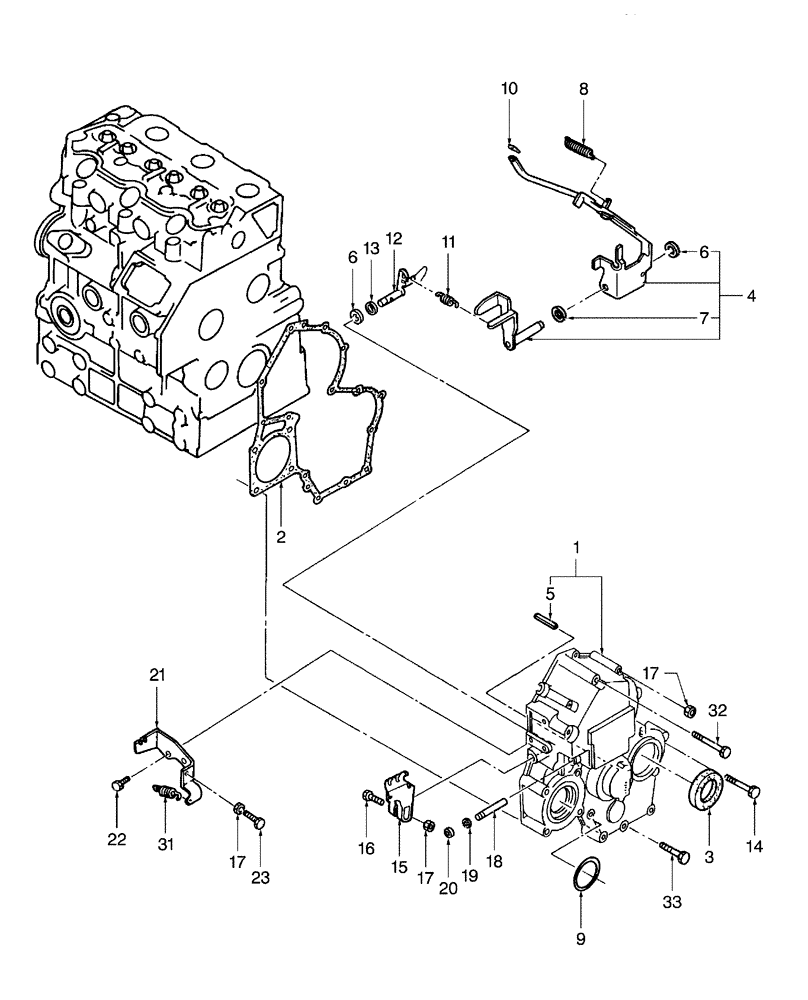

Запчасти Case IH DX33 (06E01) - TIMING GEAR CASE (01) - ENGINE

1

SBA165106520

CASE

Assy., Includes: Ref. 5

1шт.

2

SBA165996550

GASKET

1шт.

3

SBA198636160

SEAL,M35 x 55 x 11

Oil

1шт.

4

SBA125046150

LEVER

Assy.

1шт.

5

SBA030300414

PIN

Spring

1шт.

6

SBA036800008

SNAP RING

Ring, Snap

2шт.

7

SBA026200010

WASHER

1шт.

8

SBA198217500

SPRING

1шт.

9

SBA052300600

O-RING,G60

1шт.

10

SBA031100004

SPRING

Ring, Snap

1шт.

11

SBA198217220

SPRING

D25,DX25,D29,DX29

1шт.

11

SBA198217110

SPRING

D33,DX33

1шт.

12

SBA125156250

LEVER

Assy.

1шт.

13

SBA052100070

O-RING

1шт.

14

SBA011310660

BOLT

5шт.

15

SBA125416090

LEVER

1шт.

16

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

1шт.

17

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

3шт.

18

SBA125116141

ROD

Shaft

1шт.

19

SBA052100030

O-RING

2шт.

20

SBA036800005

SNAP RING

Ring, Snap

1шт.

21

SBA125976100

BRACKET

Stay

1шт.

22

SBA011310616

BOLT,M6 x 1 x 16, Cl 8.8

CL 8.8, M6 x 1 x 16

2шт.

23

SBA010109264

BOLT

1шт.

31

SBA398210070

SPRING

1шт.

32

SBA011310680

BOLT

2шт.

33

SBA011310645

CAPTIVE WASHER SCREW,Hex, M6 x 45, Cl 8.8

SCREW, CAPTIVE WASHER, Hex, M6 x 45, Cl 8.8

6шт.
