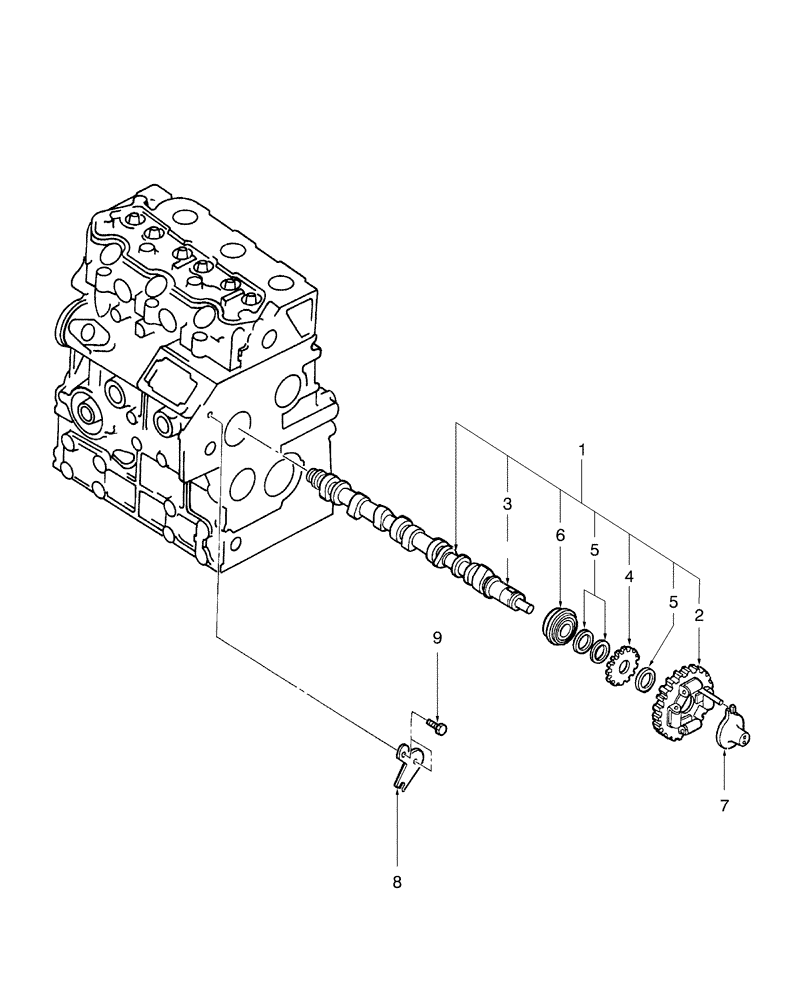

Запчасти Case IH DX33 (06B01) - CAMSHAFT (01) - ENGINE

1

SBA120026350

CAMSHAFT

Assy. Includes: Ref. 2 thru 6

1шт.

SBA120026350R

REMAN-CAMSHAFT

D25 PIN # HBA0001008 & Above, DX25, D29 PIN # HBA0001022 & Above, D33 PIN # HBA0001020 & Above, DX33 HBA000501 To.

1шт.

SBA120026350C

CORE-CAMSHAFT

Return Number

1шт.

SBA120026350R

REMAN-CAMSHAFT

DX29 HBA0000516 & Above

1шт.

SBA120026350C

CORE-CAMSHAFT

Return Number

1шт.

2

SBA120016050

GEAR

Assy.

1шт.

3

SBA034100508

KEY

1шт.

4

SBA120736081

GEAR

1шт.

5

SBA199216230

SPACER

3шт.

6

SBA040156304

BEARING ASSY

Bearing, Ball

1шт.

7

SBA125256120

SLIDE GUIDE

Slider Assy.

1шт.

8

SBA199566651

PLATE

1шт.

9

SBA011310612

CAPTIVE WASHER SCREW,Hex, M6 x 12, Cl 8.8

SCREW, CAPTIVE WASHER, Hex, M6 x 12, Cl 8.8

2шт.
