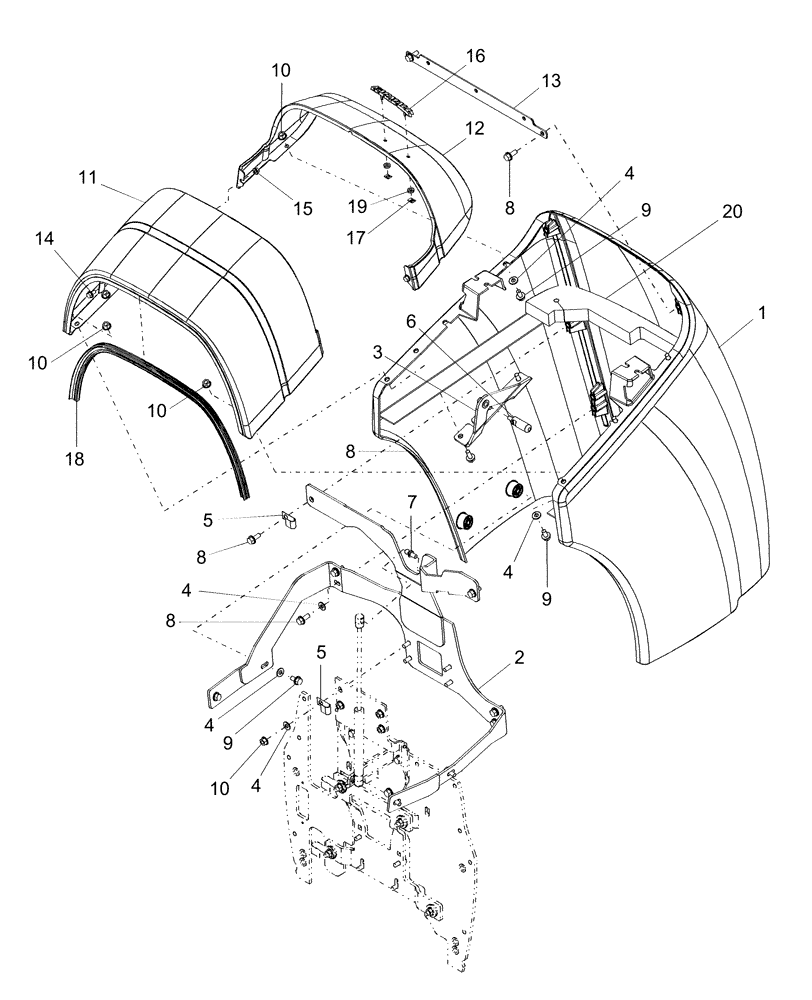

Запчасти Case IH DX33 (08.02) - HOOD (08) - SHEET METAL

1

86405157

HOOD ASSY.

Includes: Superseded to Ref 1 - 87578696 Hood, Ref. 3 - 87341304 Stricker Bracket, Ref. 20 - 86405384 Seal, Ref. 21 - 87300356 Seal, 87341306 Battery Plate

1шт.

1

87578696

HOOD

1шт.

2

87301006

BRACKET

Hinge

1шт.

3

87301013

BRACKET

Striker Used with 86405157 Hood

1шт.

3

87341304

BRACKET

Striker Used with 87578696 Hood

1шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

16шт.

5

134579

WIRE CLAMP,J

2шт.

6

87300325

LATCH

Striker

1шт.

7

E4NN94201N19BA

BALL STUD

BALL PIN Stud

1шт.

8

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

11шт.

9

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

8шт.

10

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

11шт.

11

87301097

GRILLE

GRILLE, LOWER

1шт.

12

86405240

GRILLE

Front Top

1шт.

13

86404644

BRACKET

Grille Mount

1шт.

14

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

2шт.

15

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

16

86405242

EMBLEM CASE/IH

FARMALL

1шт.

17

87037458

PUSH-ON NUT,5/32"

Spring

2шт.

18

87300624

MOLDING

Quick Edge

1шт.

19

87301264

SPACER, RING

Rubber

2шт.

20

86405384

SEAL

Seal, Hood

1шт.

21

87300356

SEAL

Side

2шт.

Not Illustrated

1шт.
