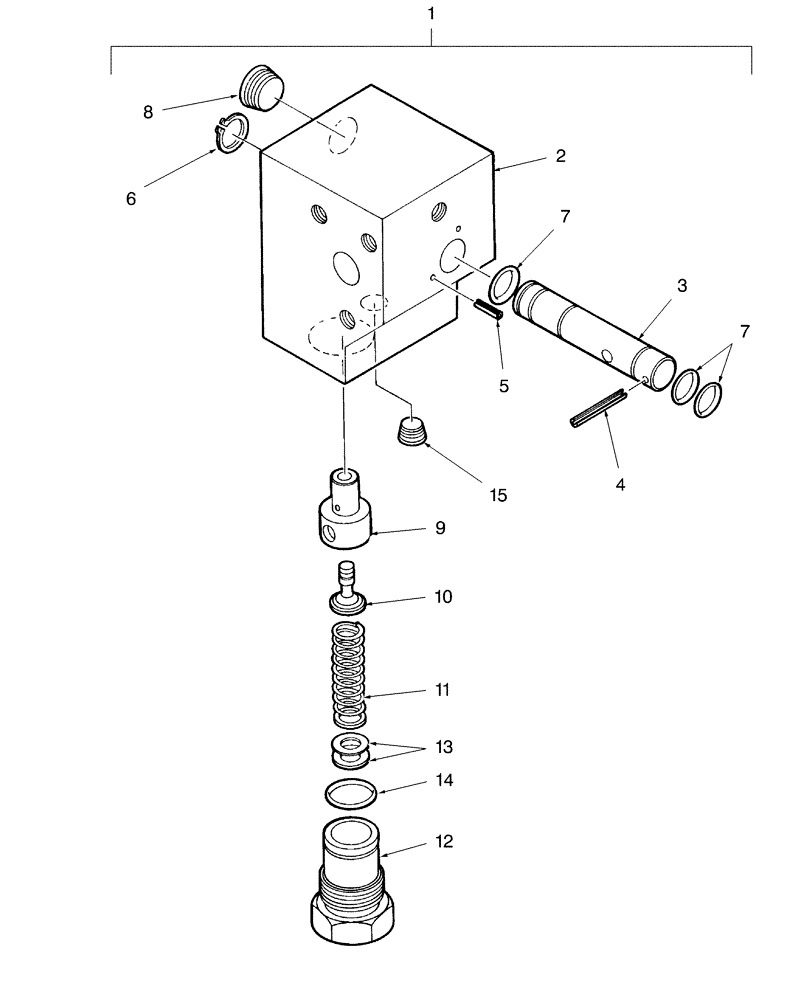

Запчасти Case IH DX33 (07.10) - MANIFOLD DIVERTER BLOCK - SBA340015500 (07) - HYDRAULIC SYSTEM

1

SBA340015500

CONTROL VALVE

Block, Manifold Diverter. Includes: Ref. 2 - 15

1шт.

Supersedes to SBA340016660. Component parts are still available

1шт.

2

NSS

NOT SOLD SEPARAT

BODY

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

4

SBA030300220

ROLL PIN

1шт.

5

SBA030300310

ROLL PIN

2шт.

6

SBA036100013

SNAP RING

1шт.

7

SBA052100100

O-RING

P10

3шт.

8

SBA064409005

PLUG,3/8"-18 NPTF

3шт.

9

SBA340293225

HOUSING

Kit, Relief

1шт.

10

SBA340293226

HYDRAULIC VALVE

Poppet

1шт.

11

SBA340293330

SPRING

1шт.

12

NSS

NOT SOLD SEPARAT

PLUG

1шт.

13

SBA340293230

KIT

Shim

1шт.

14

SBA052400180

O-RING

S18

1шт.

15

SBA064409006

PLUG,1/8" NPT

1шт.
