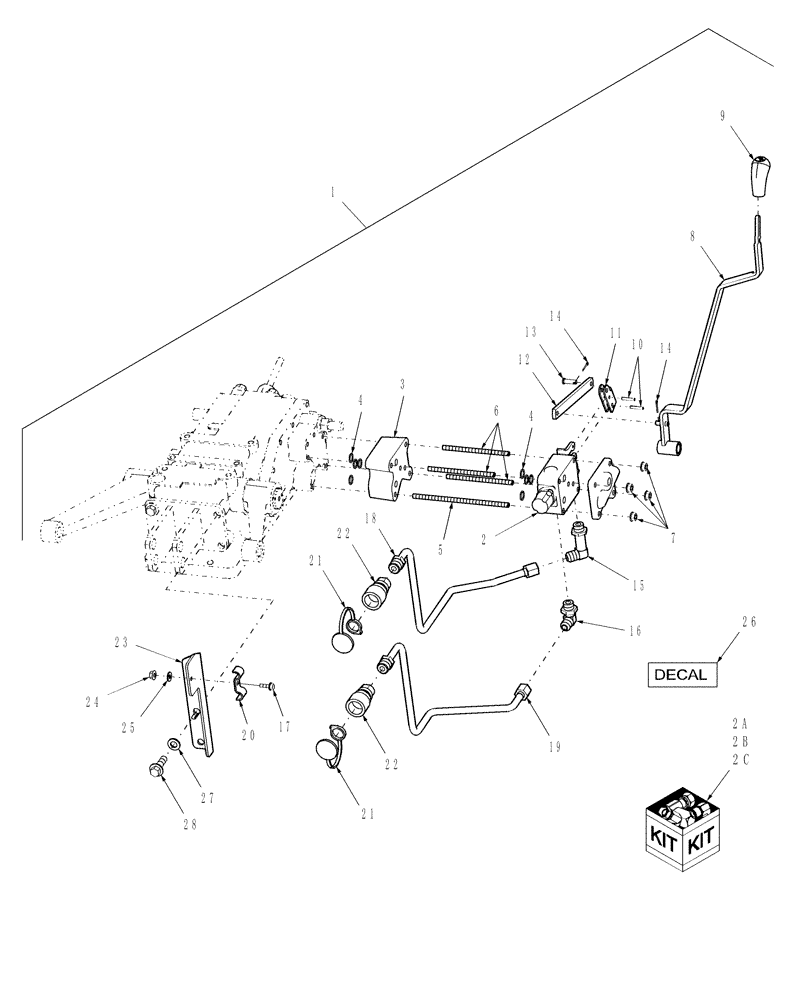

Запчасти Case IH DX33 (07.04) - SINGLE SPOOL REAR, REMOTE CONTROL VALVE KIT, #1 (07) - HYDRAULIC SYSTEM

1

W0

ORDER WHOLEGOODS

Kit, Single Spool Rear Remote Control Valve #1, {718348066} Includes: Ref. 2 thru 28

1шт.

Order Thru Wholegoods

1шт.

2

86524700

REMOTE CONTROL VALVE

Includes: Ref. 2A - 2C

1шт.

2a

86532885

KIT

Handle Bracket

1шт.

2b

86532884

KIT

Spring Center

1шт.

2c

86532883

SEAL KIT

1шт.

3

86402858

BLOCK

Remote Spacer

1шт.

4

86535818

SEAL KIT

2шт.

5

86532719

STUD,M8 x 195, Cl 8.8

1шт.

6

86532718

STUD,M8 x 135, Cl 8.8

3шт.

7

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

8

86519838

LEVER

Remote 1A, Includes: 86524680 Bushing

1шт.

9

86524776

KNOB

Remote

1шт.

10

130045

PIN,5mm OD x 26mm L, Slotted

2шт.

11

86524927

ROCKER ARM

Remote

1шт.

12

86522942

CONNECTING LINK

Remote 1

1шт.

13

200731

CLEVIS PIN,7.9mm OD x 26.72mm L

1шт.

14

280250

COTTER PIN,3/32" OD x 3/4" L

2шт.

15

86513069

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, LG

1шт.

16

128830

ELBOW,90 DEGREE, 3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

17

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

1шт.

18

86522963

TUBE,12.70 mm OD x 401, 234 mm L

Rm 1, Port A

1шт.

19

86522962

TUBE,12.70 mm OD x 253, 356 mm L

Rm 1, Port B

1шт.

20

86524859

CLAMP

Tube

1шт.

21

5186723

DUST CAP,24mm, Black

Dust Black

2шт.

22

256231

COUPLING, QUICK, FEM

Includes: 86528546 O-Ring

2шт.

23

86532862

BRACKET

Remote 1

1шт.

24

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

25

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

26

86532910

DECAL

Remote Valve

1шт.

27

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

4шт.

28

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

2шт.
